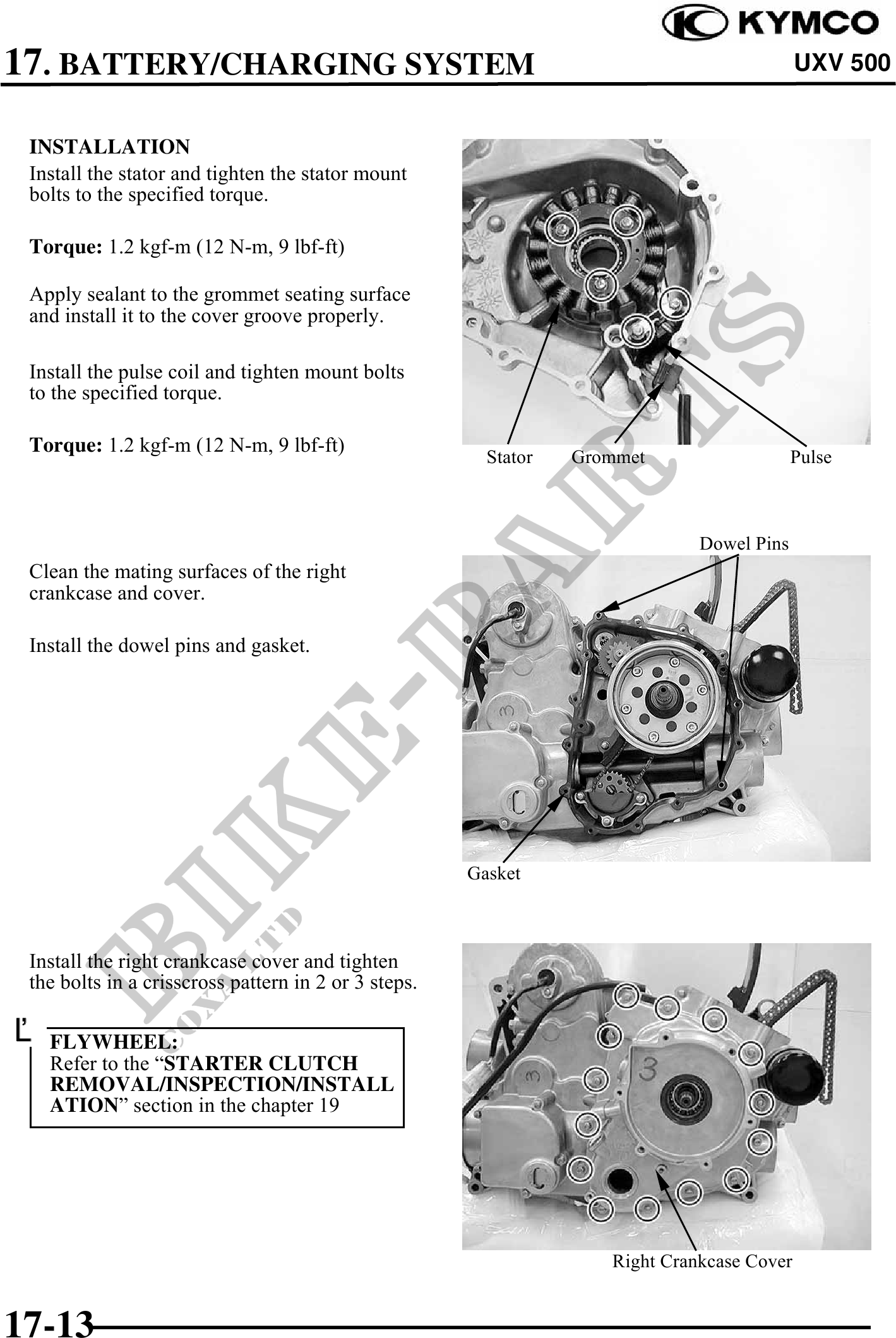

17. BATTERY/CHARGING SYSTEM UXV 500
INSTALLATION
Install the stator and tighten the stator mount
bolts to the specified torque.
Torque: 1.2 kgf-m (12 N-m, 9 lbf-ft)
Apply sealant to the grommet seating surface
and install it to the cover groove properly.
Install the pulse coil and tighten mount bolts
to the specified torque.
Torque: 1.2 kgf-m (12 N-m, 9 lbf-ft)
Stator Grommet Pulse
Dowel Pins
Clean the mating surfaces of the right
crankcase and cover.
Install the dowel pins and gasket.
Gasket
Install the right crankcase cover and tighten
the bolts in a crisscross pattern in 2 or 3 steps.
FLYWHEEL:
Refer to the "STARTER CLUTCH
REMOVAL/INSPECTION/INSTALL
ATION" section in the chapter 19
Right Crankcase Cover
17-13
