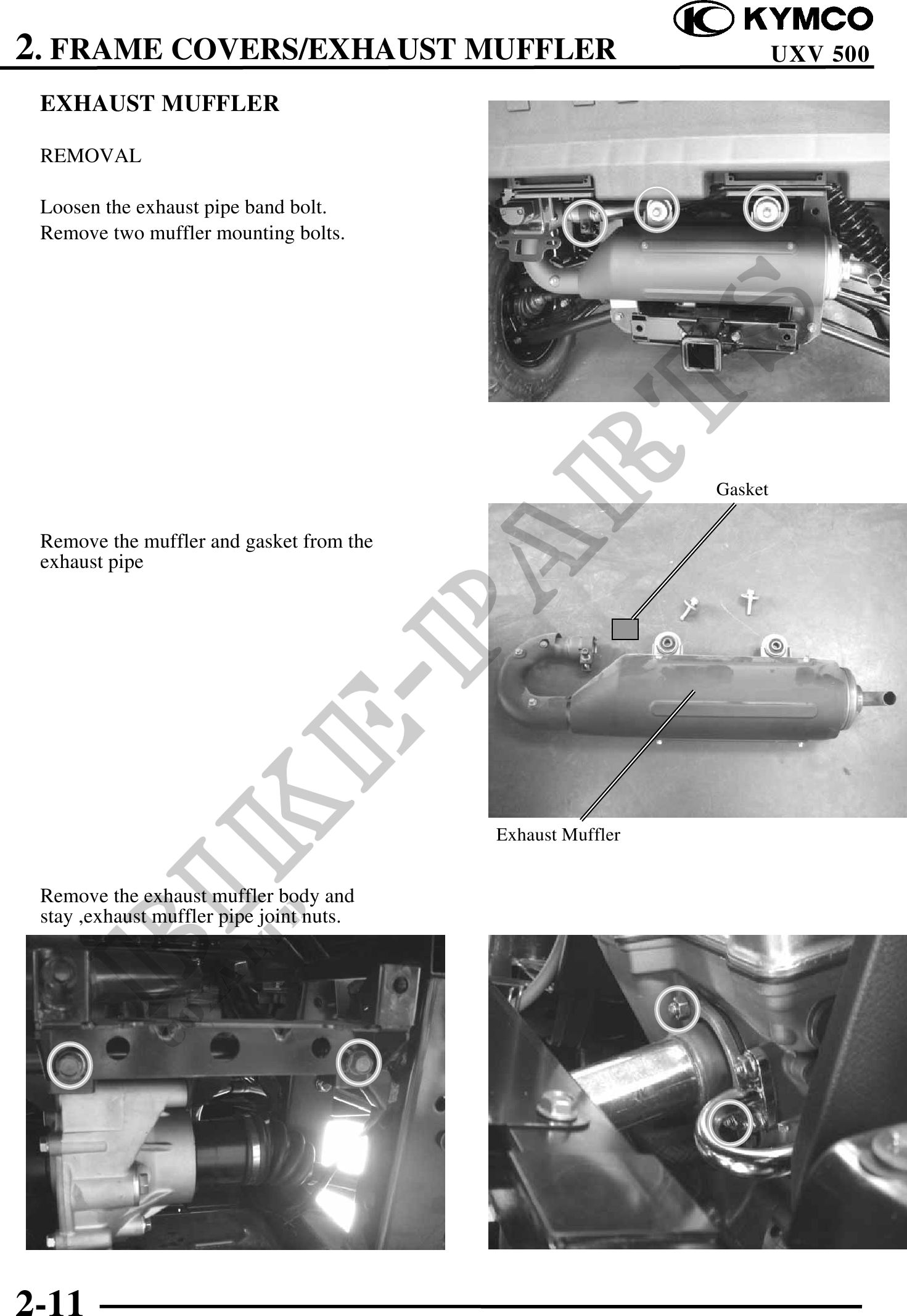

          2. FRAME COVERS/EXHAUST MUFFLER                                      UXV 500

 EXHAUST MUFFLER

 REMOVAL

 Loosen the exhaust pipe band bolt.
 Remove two muffler mounting bolts.




                                                            Gasket

 Remove the muffler and gasket from the
 exhaust pipe




                                          Exhaust Muffler


 Remove the exhaust muffler body and
 stay ,exhaust muffler pipe joint nuts.




2-11
