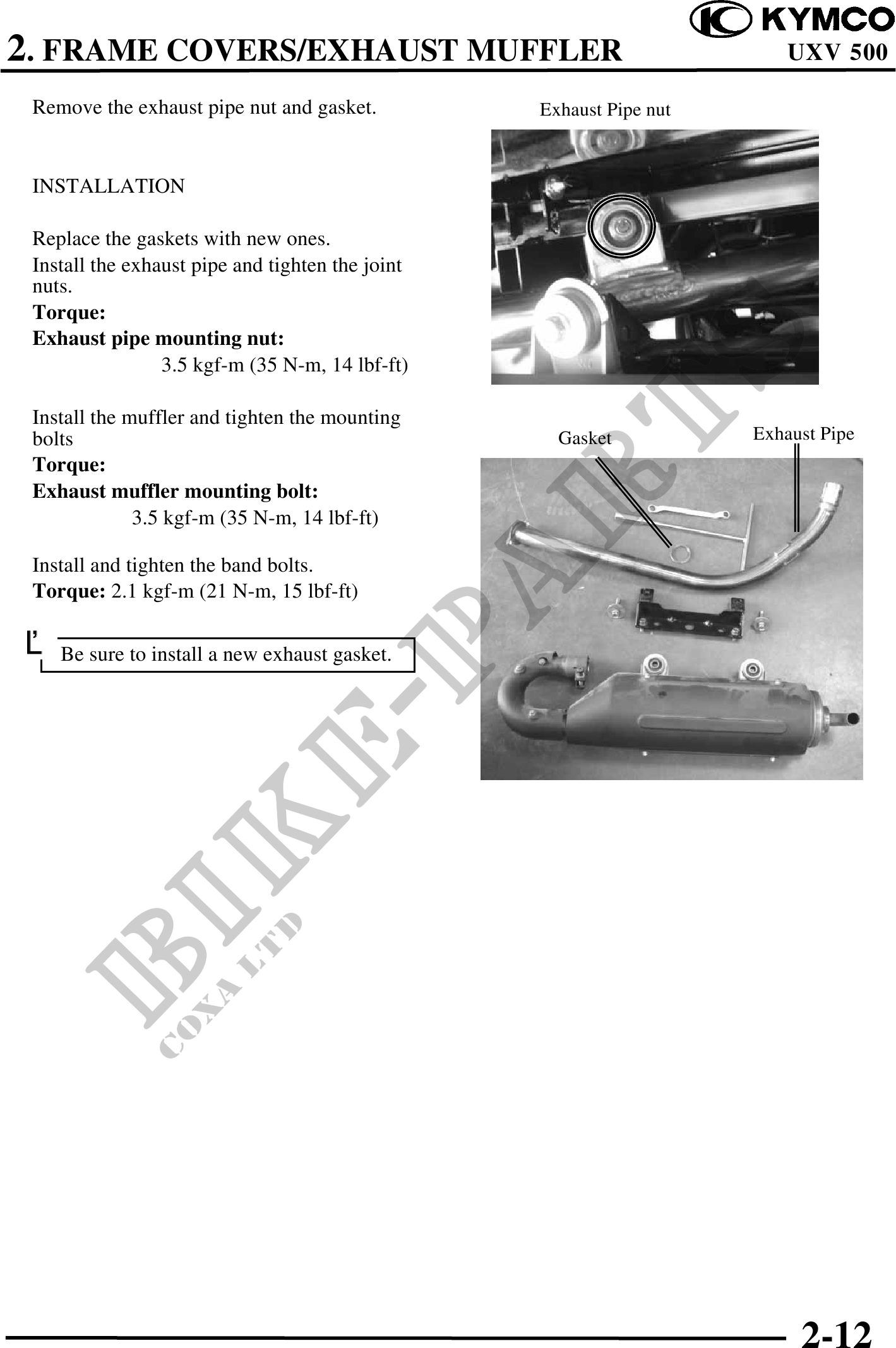

          2. FRAME COVERS/EXHAUST MUFFLER                                          UXV 500

 Remove the exhaust pipe nut and gasket.          Exhaust Pipe nut



 INSTALLATION

 Replace the gaskets with new ones.
 Install the exhaust pipe and tighten the joint
 nuts.
 Torque:
 Exhaust pipe mounting nut:
                 3.5 kgf-m (35 N-m, 14 lbf-ft)

 Install the muffler and tighten the mounting
 bolts                                              Gasket           Exhaust Pipe
 Torque:
 Exhaust muffler mounting bolt:
              3.5 kgf-m (35 N-m, 14 lbf-ft)

 Install and tighten the band bolts.
 Torque: 2.1 kgf-m (21 N-m, 15 lbf-ft)

 Be sure to install a new exhaust gasket.
