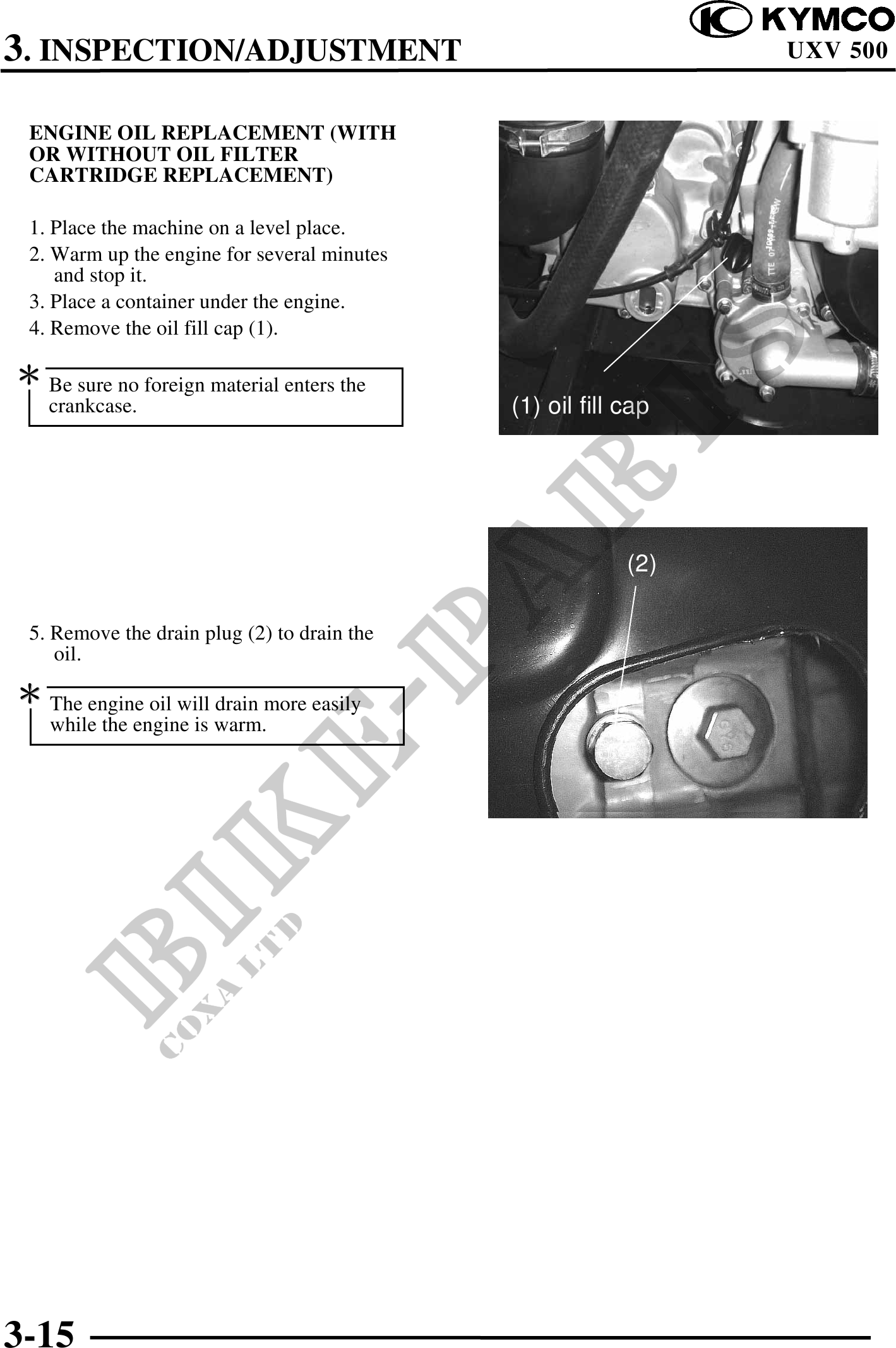

          3. INSPECTION/ADJUSTMENT                                        UXV 500


 ENGINE OIL REPLACEMENT (WITH
 OR WITHOUT OIL FILTER
 CARTRIDGE REPLACEMENT)

 1. Place the machine on a level place.
 2. Warm up the engine for several minutes
    and stop it.
 3. Place a container under the engine.
 4. Remove the oil fill cap (1).

 Be sure no foreign material enters the
   crankcase.                                (1) oil fill cap




                                                          (2)
                                                          (2)

 5. Remove the drain plug (2) to drain the
    oil.

 The engine oil will drain more easily
    while the engine is warm.




3-15
