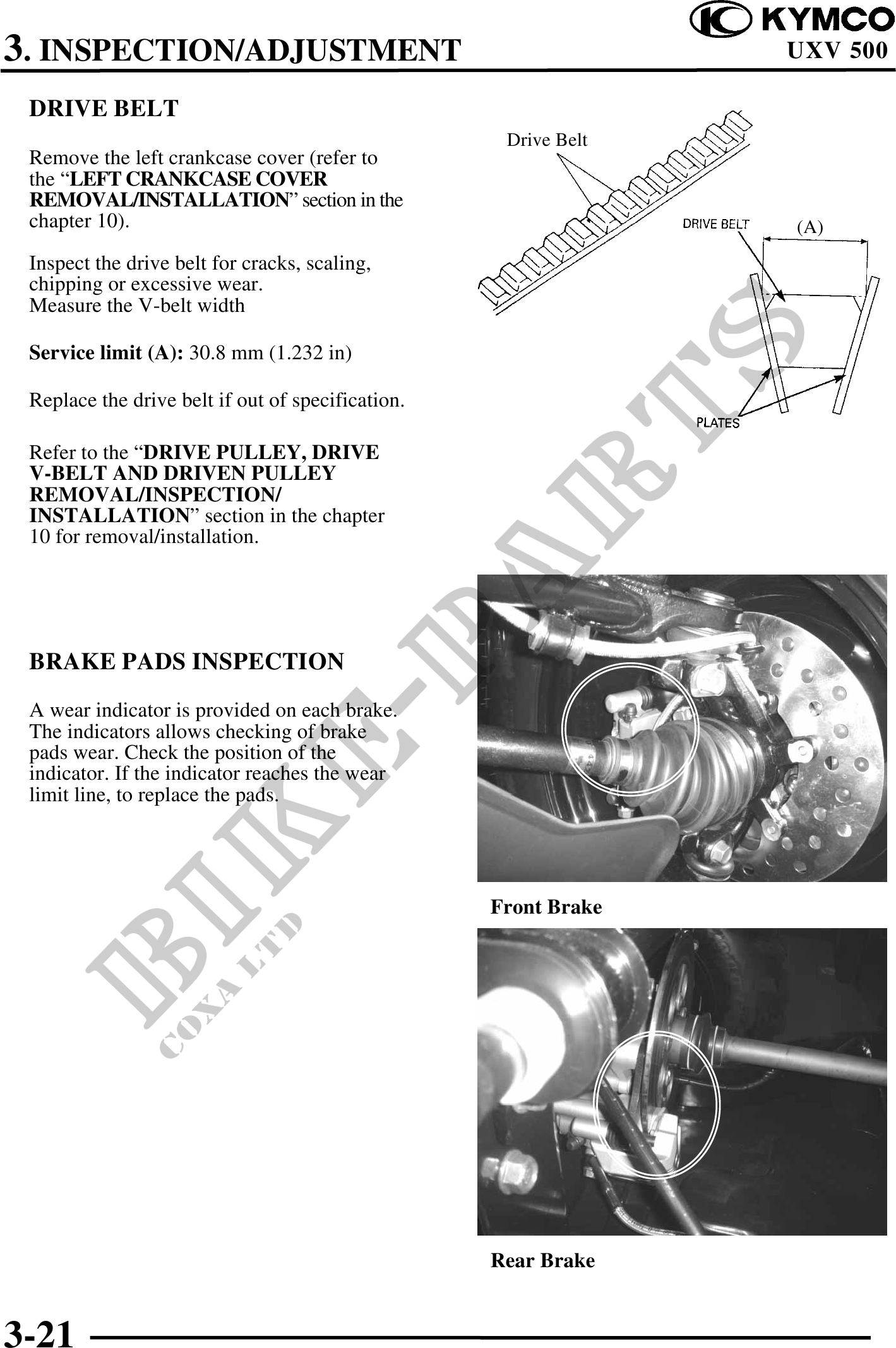

          3. INSPECTION/ADJUSTMENT                                         UXV 500

 DRIVE BELT
                                                    Drive Belt
 Remove the left crankcase cover (refer to
 the "LEFT CRANKCASE COVER
 REMOVAL/INSTALLATION" section in the
 chapter 10).                                                    (A)
 Inspect the drive belt for cracks, scaling,
 chipping or excessive wear.
 Measure the V-belt width

 Service limit (A): 30.8 mm (1.232 in)

 Replace the drive belt if out of specification.

 Refer to the "DRIVE PULLEY, DRIVE
 V-BELT AND DRIVEN PULLEY
 REMOVAL/INSPECTION/
 INSTALLATION" section in the chapter
 10 for removal/installation.




 BRAKE PADS INSPECTION
 A wear indicator is provided on each brake.
 The indicators allows checking of brake
 pads wear. Check the position of the
 indicator. If the indicator reaches the wear
 limit line, to replace the pads.




                                                   Front Brake




                                                   Rear Brake


3-21
