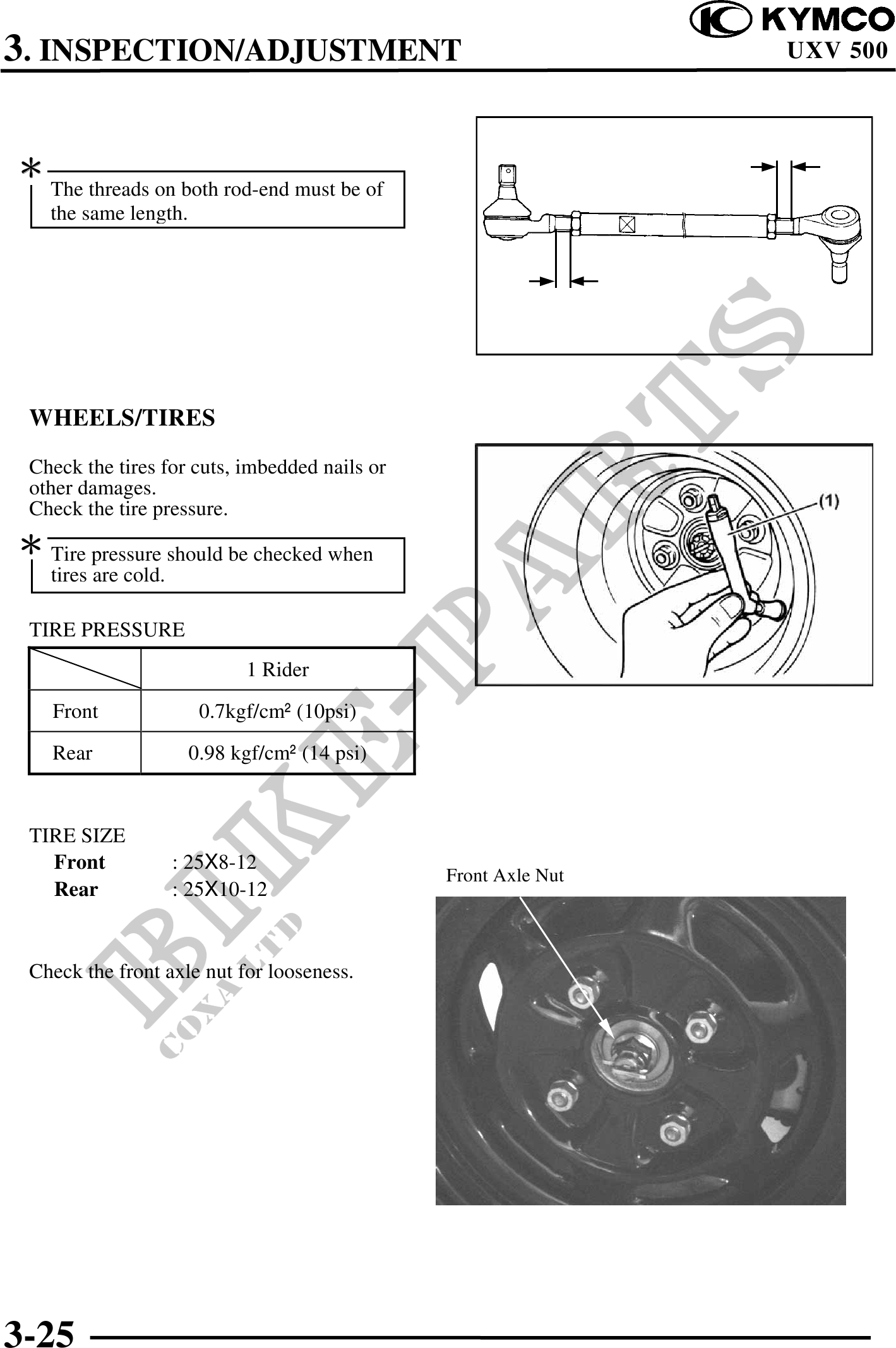

          3. INSPECTION/ADJUSTMENT                                        UXV 500




   The threads on both rod-end must be of
   the same length.




 WHEELS/TIRES
 Check the tires for cuts, imbedded nails or
 other damages.
 Check the tire pressure.
 Tire pressure should be checked when
   tires are cold.

 TIRE PRESSURE
                            1 Rider
   Front               0.7kgf/cm (10psi)
   Rear               0.98 kgf/cm (14 psi)


 TIRE SIZE
   Front             : 25X8-12
                                               Front Axle Nut
   Rear              : 25X10-12


 Check the front axle nut for looseness.




3-25
