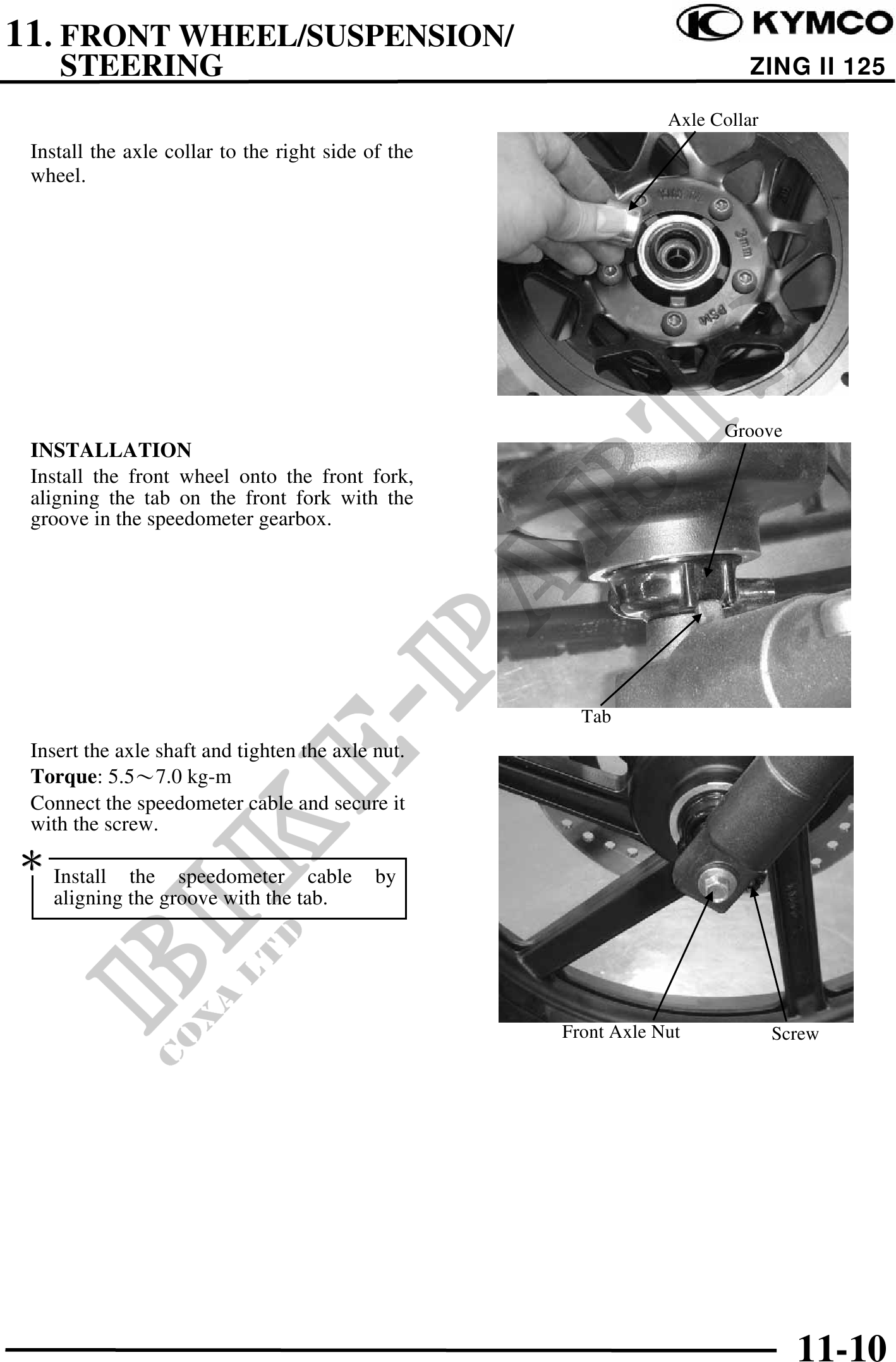

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                              ZING II 125

                                                                Axle Collar
 Install the axle collar to the right side of the
 wheel.




                                                                      Groove
 INSTALLATION
 Install the front wheel onto the front fork,
 aligning the tab on the front fork with the
 groove in the speedometer gearbox.




                                                      Tab
 Insert the axle shaft and tighten the axle nut.
 Torque: 5.57.0 kg-m
 Connect the speedometer cable and secure it
 with the screw.
 Install    the speedometer cable           by
   aligning the groove with the tab.




                                                    Front Axle Nut            Screw




                                                                                11-10
