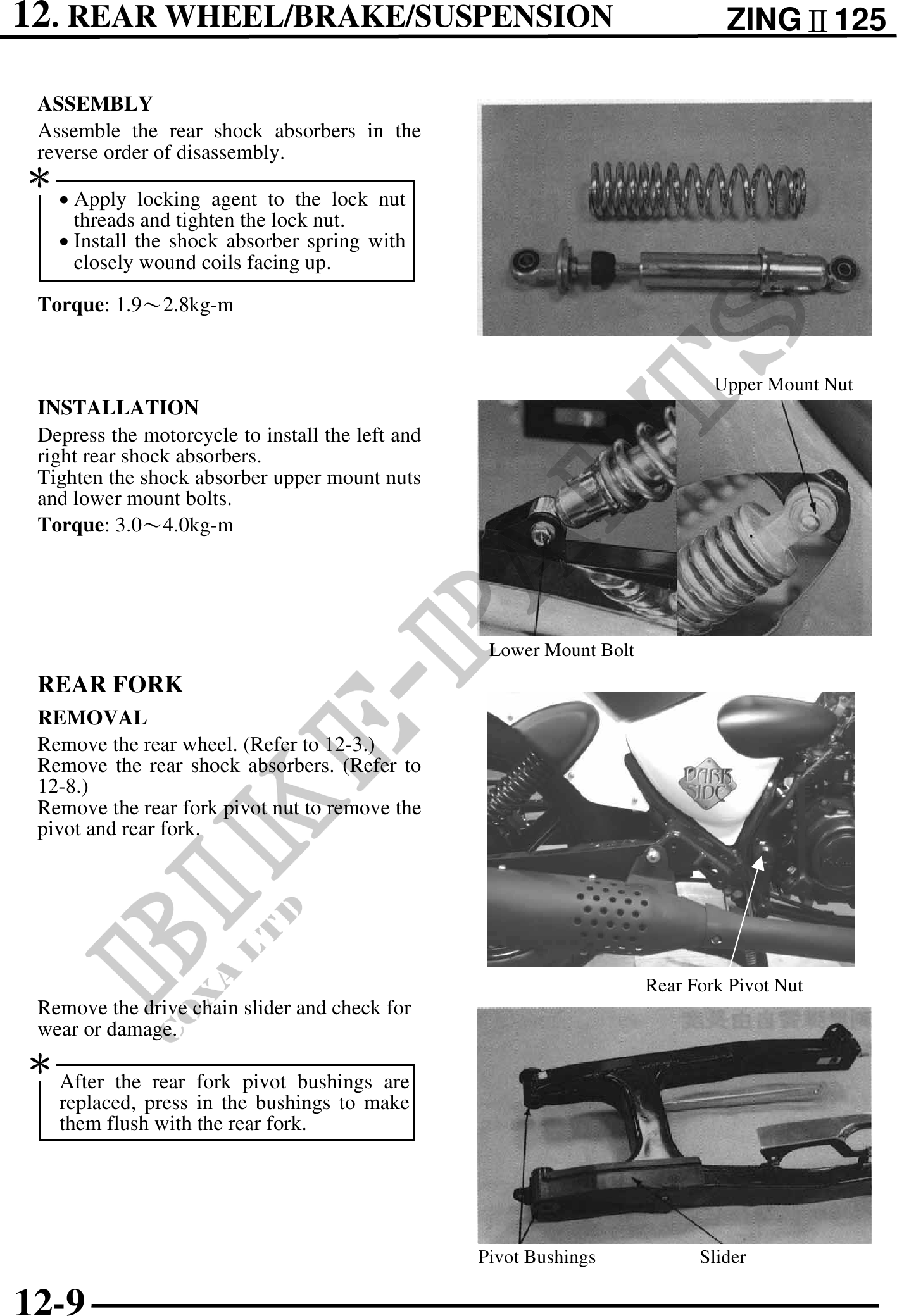

          12. REAR WHEEL/BRAKE/SUSPENSION                                                ZING125

 ASSEMBLY
 Assemble the rear shock absorbers in the
 reverse order of disassembly.

   · Apply locking agent to the lock nut
     threads and tighten the lock nut.
   · Install the shock absorber spring with
     closely wound coils facing up.

 Torque: 1.92.8kg-m


                                                                              Upper Mount Nut
 INSTALLATION
 Depress the motorcycle to install the left and
 right rear shock absorbers.
 Tighten the shock absorber upper mount nuts
 and lower mount bolts.
 Torque: 3.04.0kg-m




                                                   Lower Mount Bolt
 REAR FORK
 REMOVAL
 Remove the rear wheel. (Refer to 12-3.)
 Remove the rear shock absorbers. (Refer to
 12-8.)
 Remove the rear fork pivot nut to remove the
 pivot and rear fork.




                                                                      Rear Fork Pivot Nut
 Remove the drive chain slider and check for
 wear or damage.
 After   the rear fork pivot bushings are
   replaced, press in the bushings to make
   them flush with the rear fork.




                                                  Pivot Bushings            Slider

12-9
