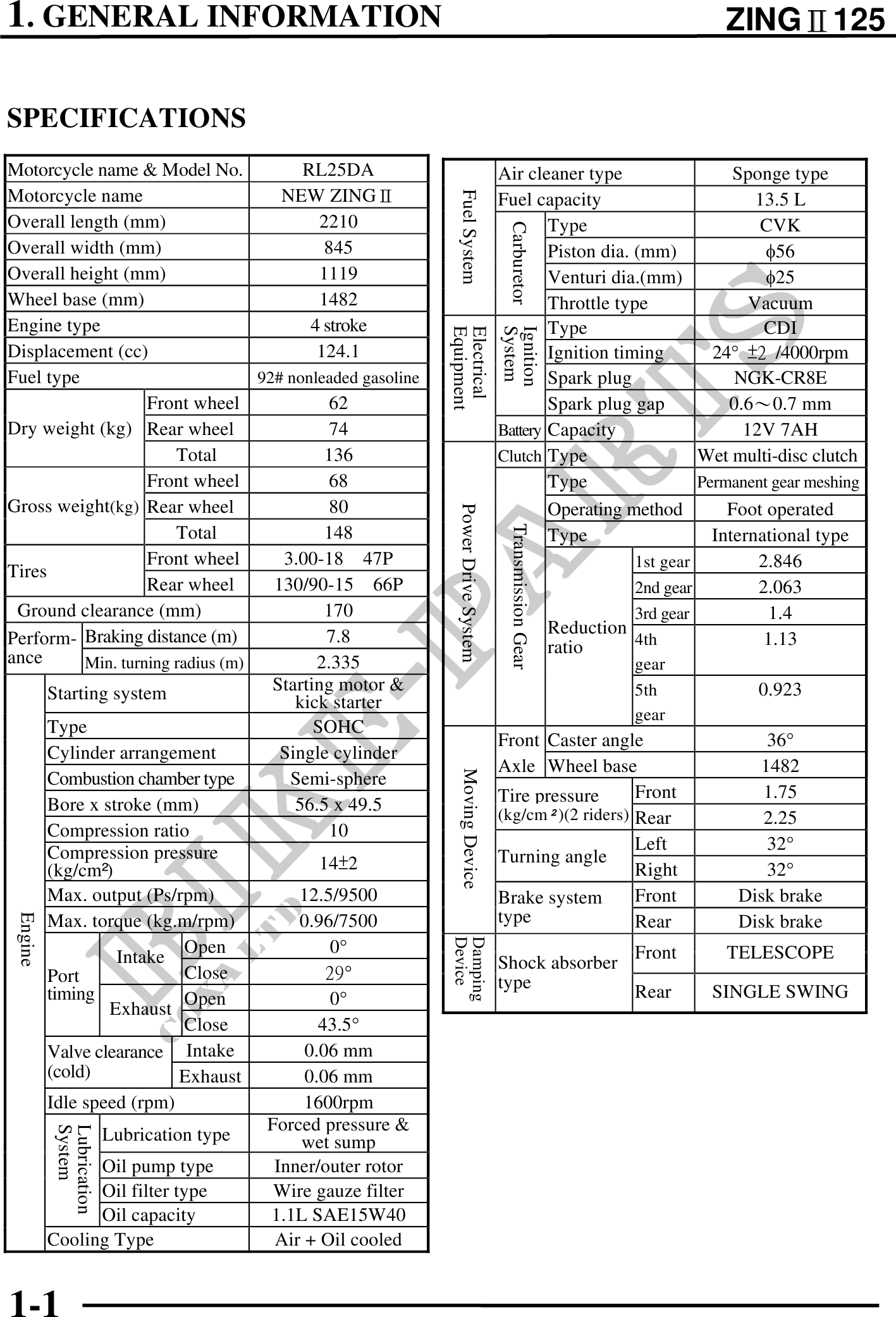

          1. GENERAL INFORMATION                                                                                             ZING125


SPECIFICATIONS
Motorcycle name & Model No.              RL25DA                                    Air cleaner type                  Sponge type
Motorcycle name                       NEW ZING




                                                              Fuel System
                                                                                   Fuel capacity                        13.5 L
Overall length (mm)                         2210                                           Type                         CVK




                                                                                    Carburetor
Overall width (mm)                           845                                           Piston dia. (mm)              56
Overall height (mm)                         1119                                           Venturi dia.(mm)              25
Wheel base (mm)                             1482                                           Throttle type               Vacuum
Engine type                                4 stroke                                        Type                          CDI




                                                            Equipment
                                                            Electrical
                                                                                   System
                                                                                   Ignition
Displacement (cc)                           124.1                                          Ignition timing        24° 2 /4000rpm
Fuel type                          92# nonleaded gasoline                                  Spark plug                NGK-CR8E
                    Front wheel               62                                           Spark plug gap           0.60.7 mm
Dry weight (kg) Rear wheel                    74                                   Battery Capacity                   12V 7AH
                        Total                136                                   Clutch Type                  Wet multi-disc clutch
                    Front wheel               68                                           Type                 Permanent gear meshing
Gross weight(kg) Rear wheel                   80                                           Operating method         Foot operated
                                                              Power Drive System

                                                                                     Transmission Gear
                        Total                148                                           Type                   International type
                    Front wheel        3.00-18 47P                                                     1st gear         2.846
Tires
                    Rear wheel       130/90-15 66P                                                     2nd gear         2.063
 Ground clearance (mm)                       170                                                       3rd gear           1.4
                                                                                           Reduction
Perform- Braking distance (m)                7.8
                                                                                           ratio       4th               1.13
ance       Min. turning radius (m)          2.335                                                        gear
      Starting system                Starting motor &                                                    5th           0.923
                                        kick starter
                                                                                                         gear
      Type                                 SOHC
                                                                                   Front Caster angle                  36°
      Cylinder arrangement            Single cylinder
                                                                                   Axle Wheel base                    1482
                                                               Moving Device




      Combustion chamber type           Semi-sphere
                                                                                   Tire pressure     Front             1.75
      Bore x stroke (mm)                56.5 x 49.5                                (kg/cm)(2 riders) Rear              2.25
      Compression ratio                       10
      Compression pressure                                                                           Left              32°
                                            142                                    Turning angle
      (kg/cm)                                                                                        Right             32°
      Max. output (Ps/rpm)               12.5/9500                                 Brake system      Front          Disk brake
                                                                                   type
 Engine




      Max. torque (kg.m/rpm)             0.96/7500                                                   Rear           Disk brake
                                                            Device
                                                            Damping




                          Open                0°                                                         Front     TELESCOPE
               Intake                                                              Shock absorber
      Port                Close              29°                                   type
      timing              Open                0°                                                         Rear    SINGLE SWING
              Exhaust
                          Close             43.5°
      Valve clearance     Intake          0.06 mm
      (cold)             Exhaust          0.06 mm
      Idle speed (rpm)                    1600rpm
                                    Forced pressure &
          System
          Lubrication




             Lubrication type            wet sump
             Oil pump type           Inner/outer rotor
             Oil filter type         Wire gauze filter
             Oil capacity            1.1L SAE15W40
      Cooling Type                   Air + Oil cooled
