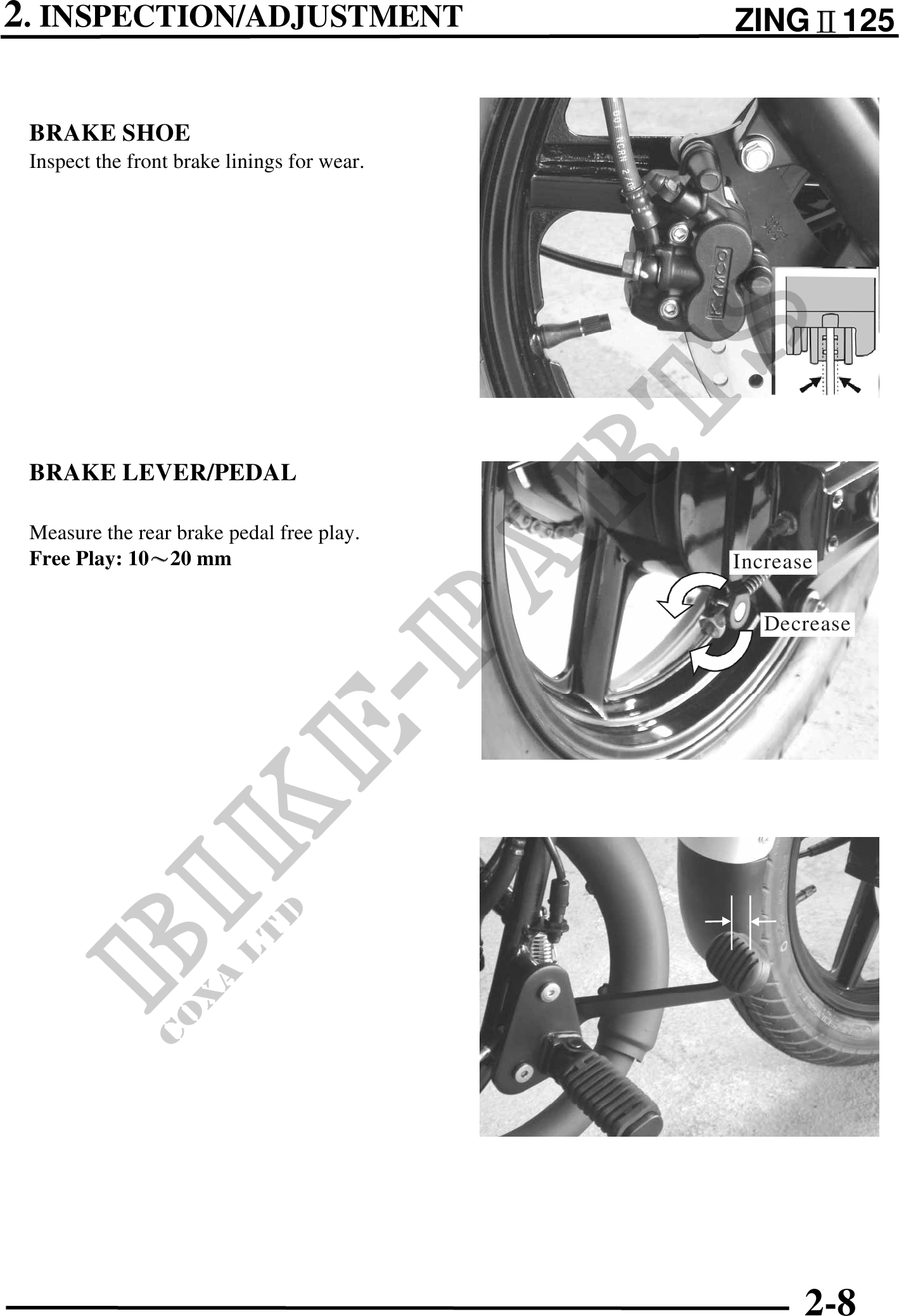

          2. INSPECTION/ADJUSTMENT                     ZING125


 BRAKE SHOE
 Inspect the front brake linings for wear.




 BRAKE LEVER/PEDAL

 Measure the rear brake pedal free play.
 Free Play: 1020 mm                          Increase

                                                Decrease
