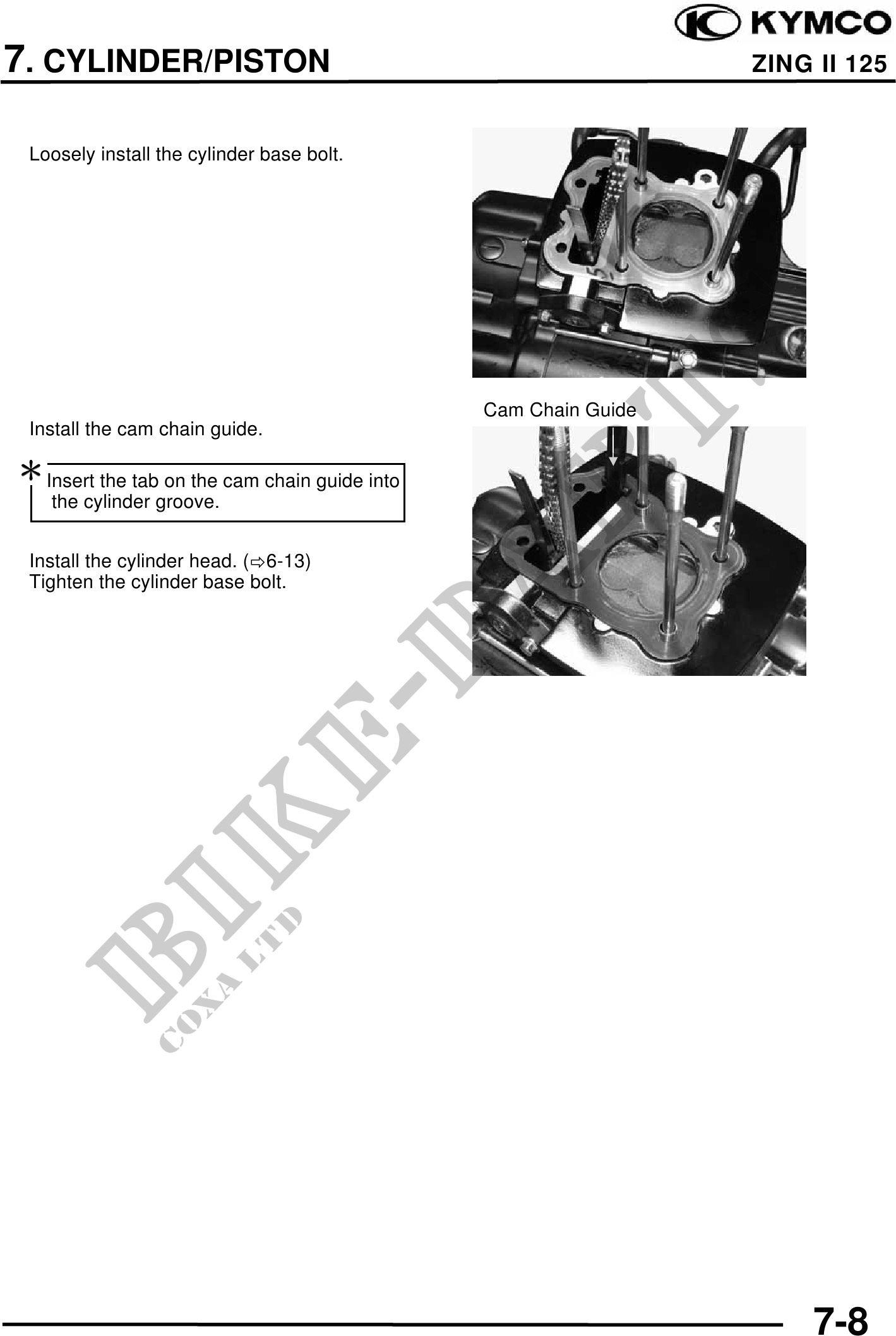

          7. CYLINDER/PISTON                                             ZING II 125


 Loosely install the cylinder base bolt.




                                             Cam Chain Guide
 Install the cam chain guide.

Insert the tab on the cam chain guide into
   the cylinder groove.


 Install the cylinder head. ( 6-13)
 Tighten the cylinder base bolt.




                                                                   7-8
