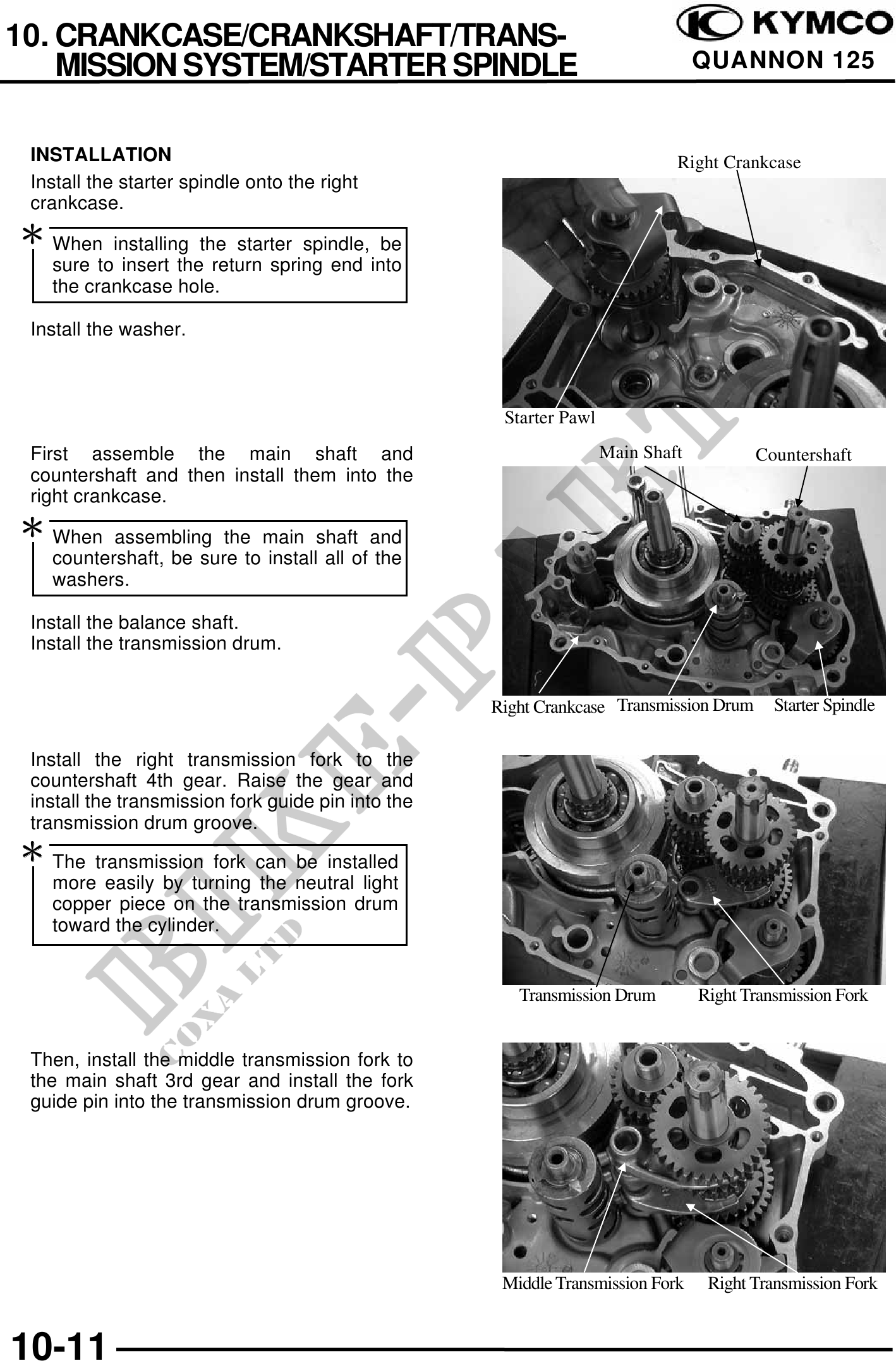

          10. CRANKCASE/CRANKSHAFT/TRANS-
    MISSION SYSTEM/STARTER SPINDLE                                               QUANNON 125


 INSTALLATION                                                                Right Crankcase
 Install the starter spindle onto the right
 crankcase.
 When     installing the starter spindle, be
   sure to insert the return spring end into
   the crankcase hole.

 Install the washer.



                                                     Starter Pawl
 First assemble the main shaft and                                  Main Shaft          Countershaft
 countershaft and then install them into the
 right crankcase.
 When     assembling the main shaft and
   countershaft, be sure to install all of the
   washers.

 Install the balance shaft.
 Install the transmission drum.


                                                    Right Crankcase Transmission Drum      Starter Spindle

 Install the right transmission fork to the
 countershaft 4th gear. Raise the gear and
 install the transmission fork guide pin into the
 transmission drum groove.
 The   transmission fork can be installed
   more easily by turning the neutral light
   copper piece on the transmission drum
   toward the cylinder.


                                                       Transmission Drum         Right Transmission Fork


 Then, install the middle transmission fork to
 the main shaft 3rd gear and install the fork
 guide pin into the transmission drum groove.




                                                     Middle Transmission Fork     Right Transmission Fork
