new pulsar 125 Workshop-manual : Page 104

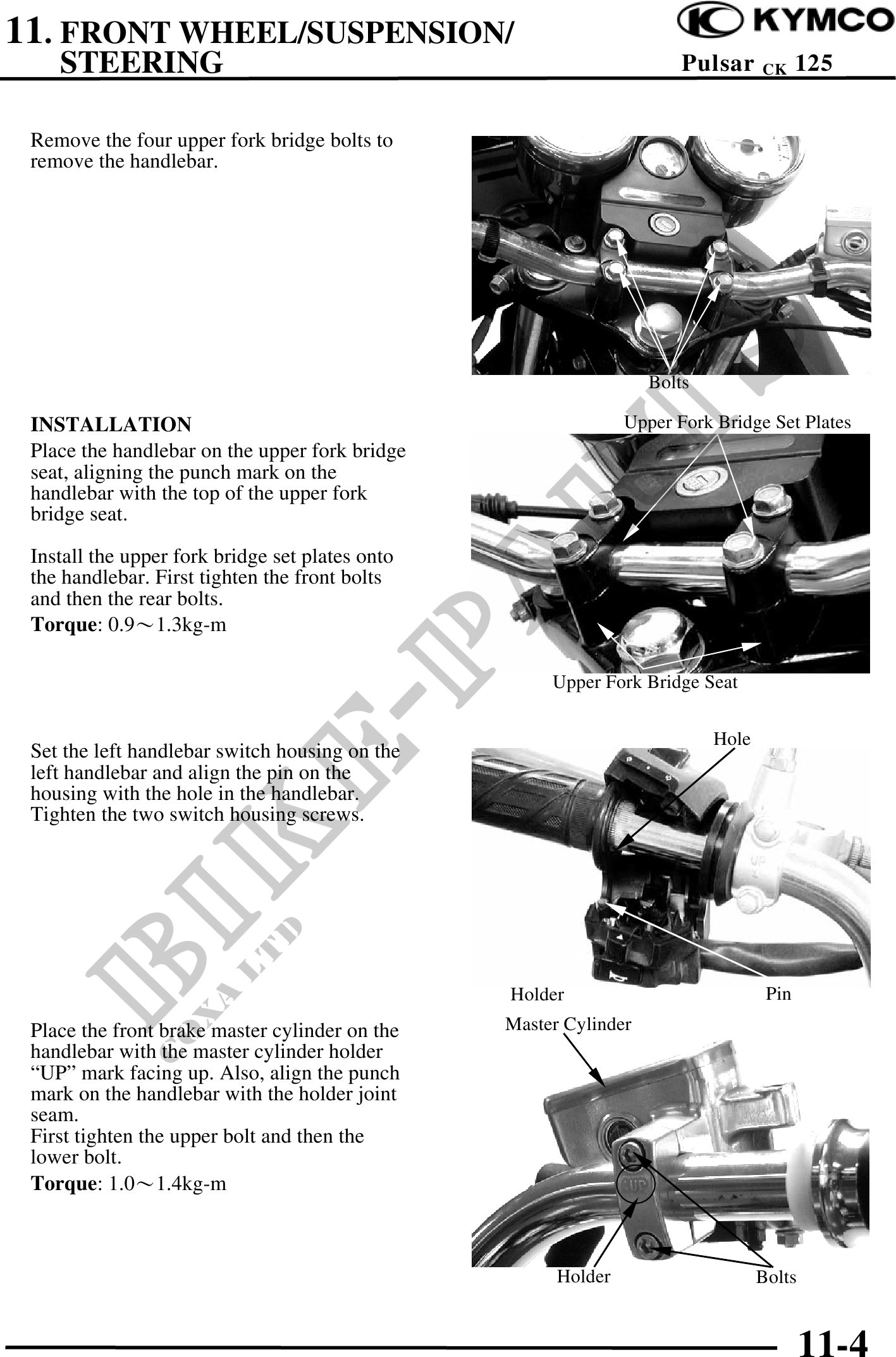

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                           Pulsar     CK     125


 Remove the four upper fork bridge bolts to
 remove the handlebar.




                                                                   Bolts

 INSTALLATION                                                   Upper Fork Bridge Set Plates
 Place the handlebar on the upper fork bridge
 seat, aligning the punch mark on the
 handlebar with the top of the upper fork
 bridge seat.

 Install the upper fork bridge set plates onto
 the handlebar. First tighten the front bolts
 and then the rear bolts.
 Torque: 0.91.3kg-m

                                                      Upper Fork Bridge Seat

                                                                           Hole
 Set the left handlebar switch housing on the
 left handlebar and align the pin on the
 housing with the hole in the handlebar.
 Tighten the two switch housing screws.




                                                 Holder                            Pin
 Place the front brake master cylinder on the    Master Cylinder
 handlebar with the master cylinder holder
 "UP" mark facing up. Also, align the punch
 mark on the handlebar with the holder joint
 seam.
 First tighten the upper bolt and then the
 lower bolt.
 Torque: 1.01.4kg-m



                                                       Holder                     Bolts


                                                                                          11-4
