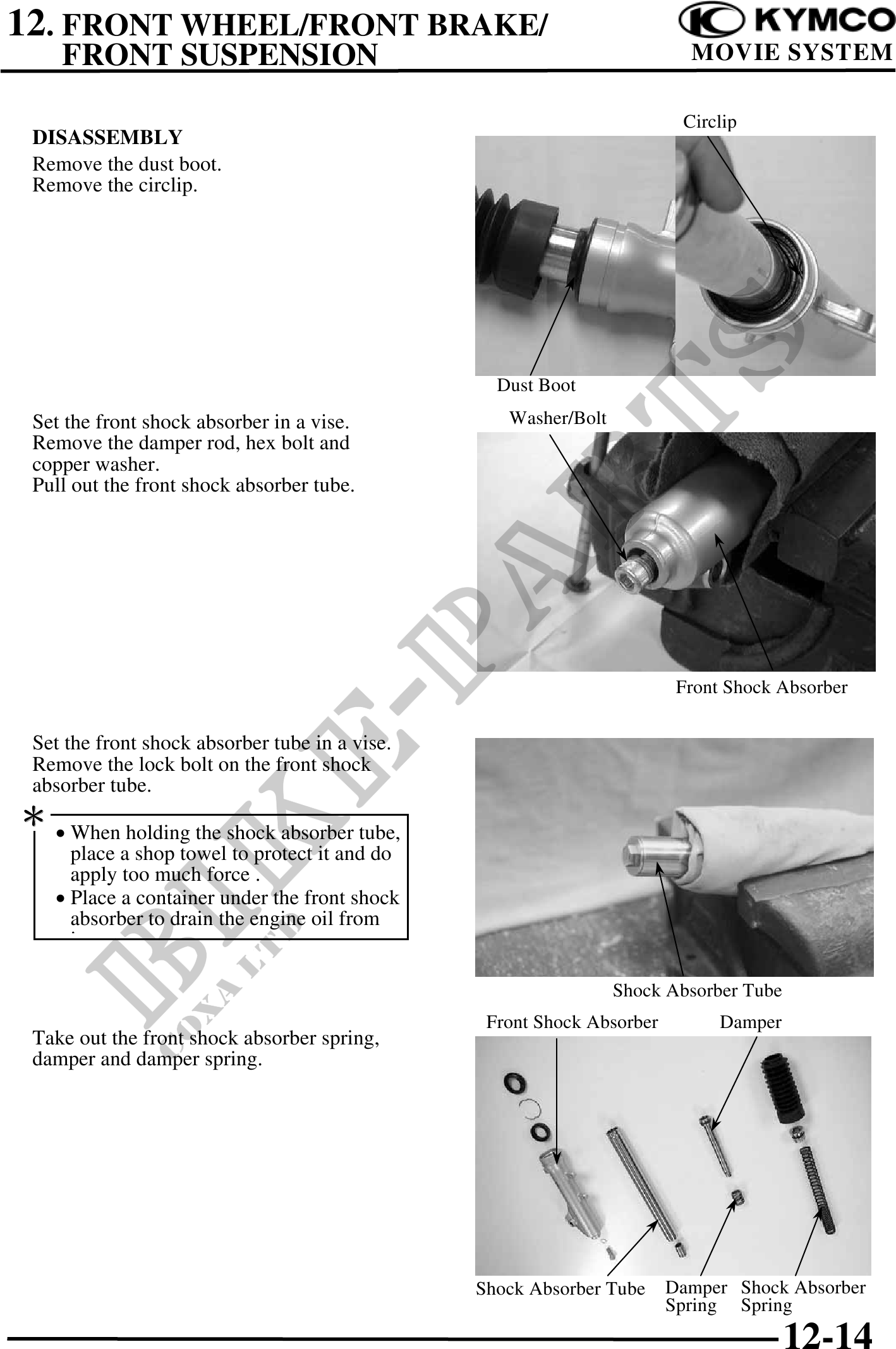

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                                      MOVIE SYSTEM

                                                                         Circlip
 DISASSEMBLY
 Remove the dust boot.
 Remove the circlip.




                                                  Dust Boot
 Set the front shock absorber in a vise.           Washer/Bolt
 Remove the damper rod, hex bolt and
 copper washer.
 Pull out the front shock absorber tube.




                                                                         Front Shock Absorber

 Set the front shock absorber tube in a vise.
 Remove the lock bolt on the front shock
 absorber tube.
 · When holding the shock absorber tube,
     place a shop towel to protect it and do
     apply too much force .
   · Place a container under the front shock
     absorber to drain the engine oil from
     i

                                                                 Shock Absorber Tube
                                                 Front Shock Absorber         Damper
 Take out the front shock absorber spring,
 damper and damper spring.




                                                Shock Absorber Tube     Damper Shock Absorber
                                                                        Spring Spring
                                                                                       12-14
