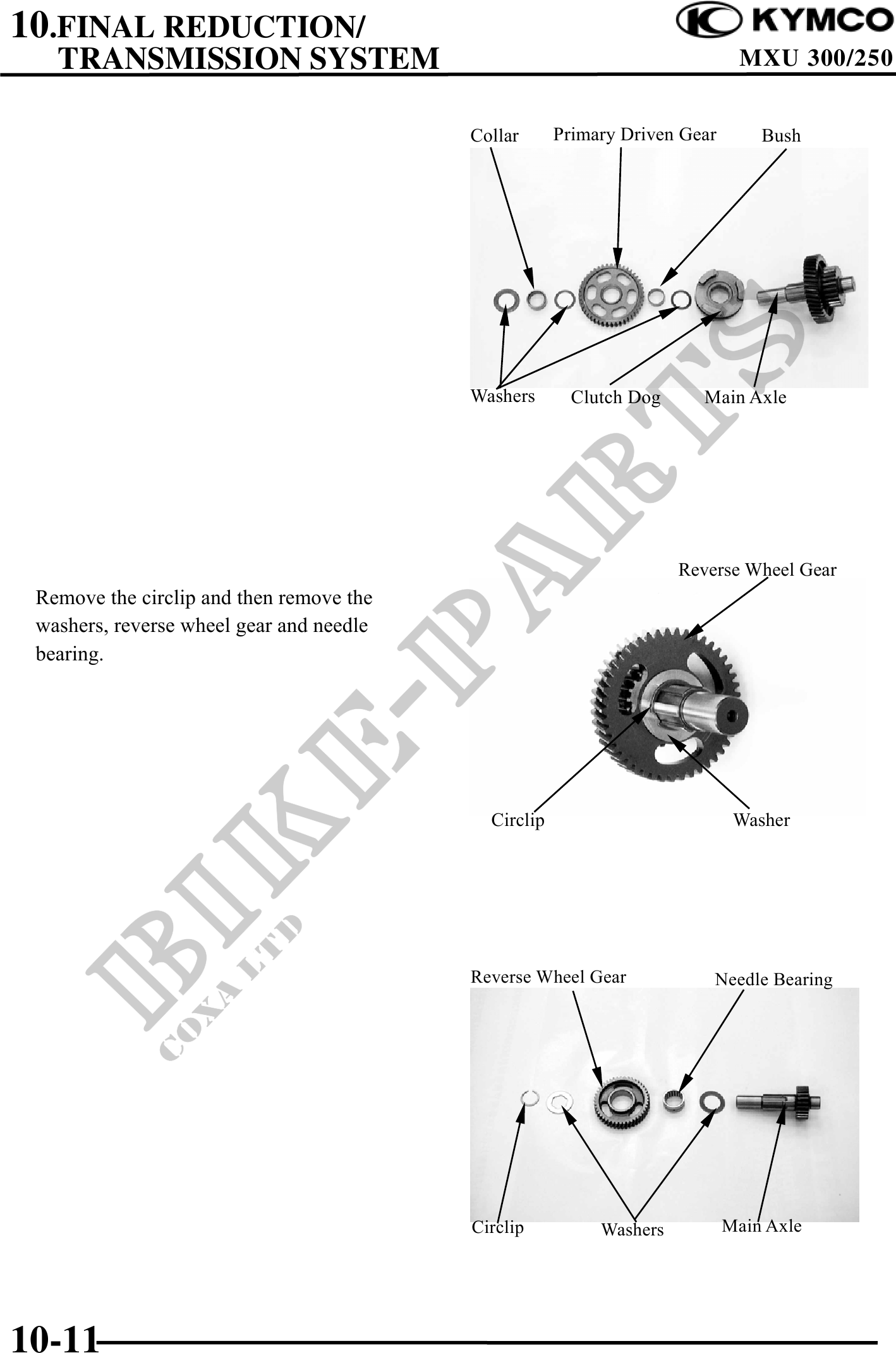

          10.FINAL REDUCTION/
   TRANSMISSION SYSTEM                                                       MXU 300/250


                                          Collar      Primary Driven Gear       Bush




                                          Washers       Clutch Dog     Main Axle




                                                                     Reverse Wheel Gear
 Remove the circlip and then remove the
 washers, reverse wheel gear and needle
 bearing.




                                            Circlip                          Washer




                                          Reverse Wheel Gear             Needle Bearing




                                          Circlip          Washers          Main Axle




10-11
