          10.FINAL REDUCTION/
   TRANSMISSION SYSTEM                                                 MXU 300/250

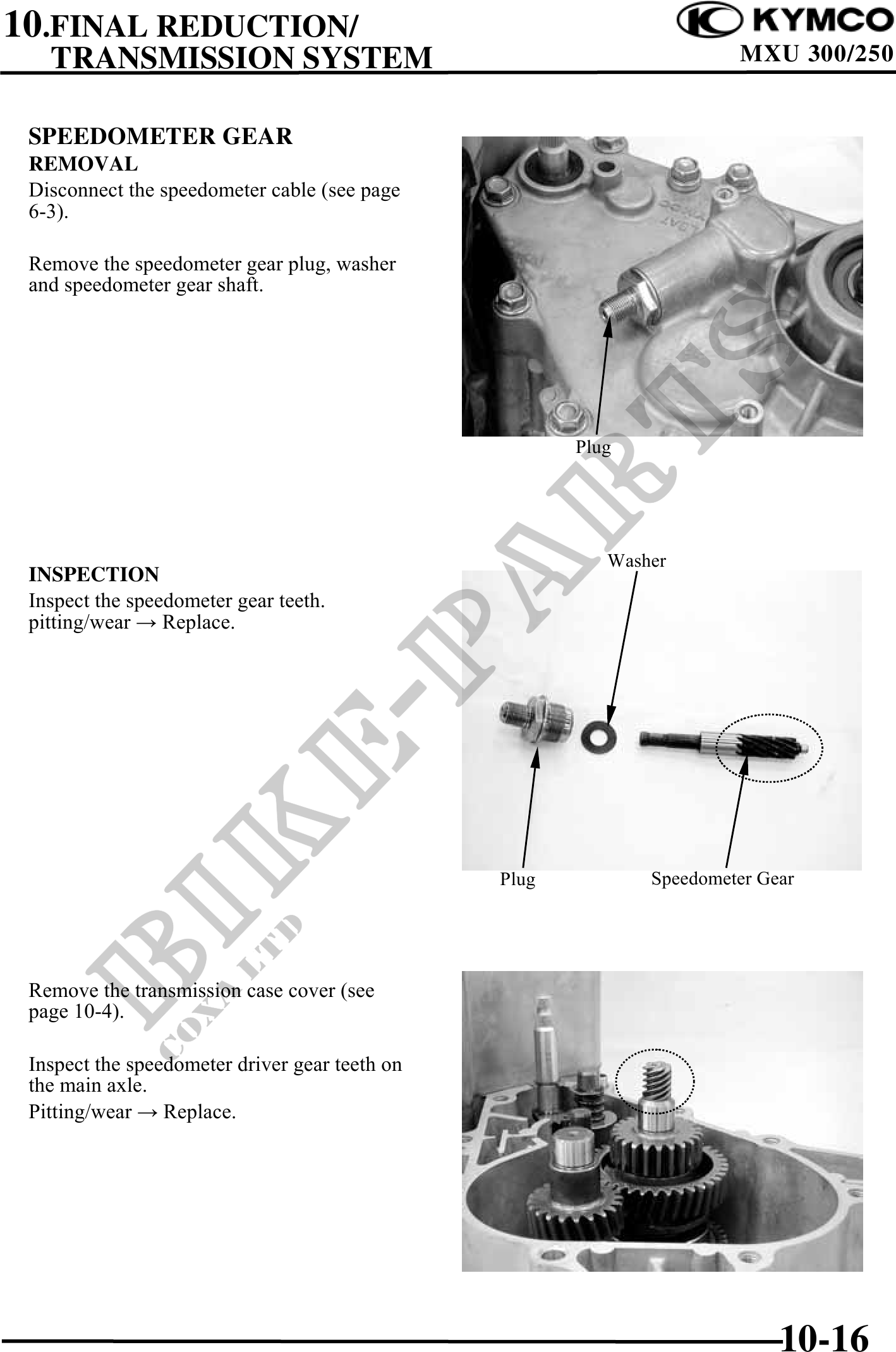

 SPEEDOMETER GEAR
 REMOVAL
 Disconnect the speedometer cable (see page
 6-3).

 Remove the speedometer gear plug, washer
 and speedometer gear shaft.




                                                       Plug




                                                          Washer
 INSPECTION
 Inspect the speedometer gear teeth.
 pitting/wear  Replace.




                                                Plug          Speedometer Gear




 Remove the transmission case cover (see
 page 10-4).

 Inspect the speedometer driver gear teeth on
 the main axle.
 Pitting/wear  Replace.
