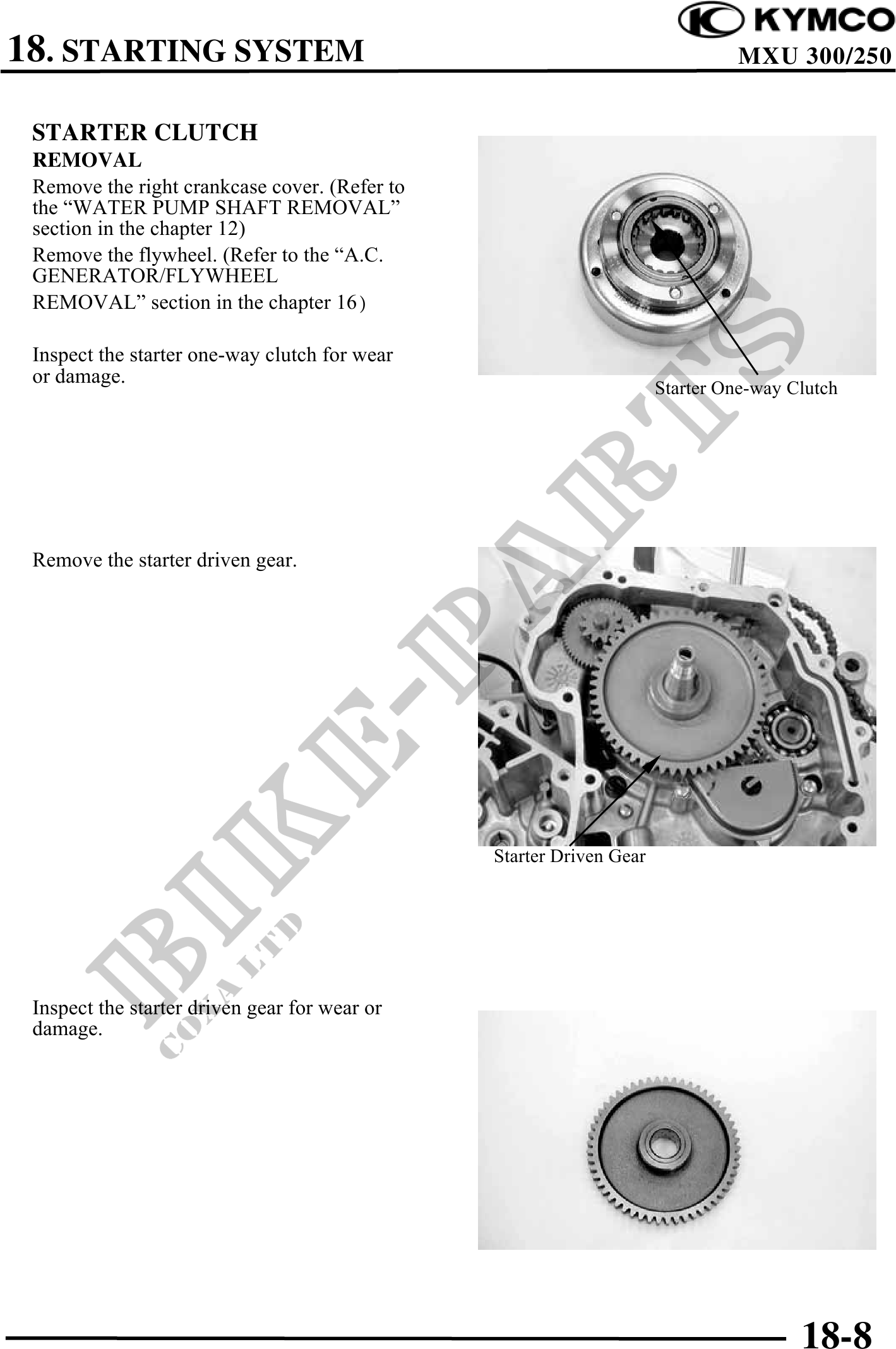

          18. STARTING SYSTEM                                                            MXU 300/250


 STARTER CLUTCH
 REMOVAL
 Remove the right crankcase cover. (Refer to
 the "WATER PUMP SHAFT REMOVAL"
 section in the chapter 12)
 Remove the flywheel. (Refer to the "A.C.
 GENERATOR/FLYWHEEL
 REMOVAL" section in the chapter 16)

 Inspect the starter one-way clutch for wear
 or damage.
                                                                     Starter One-way Clutch




 Remove the starter driven gear.




                                               Starter Driven Gear




 Inspect the starter driven gear for wear or
 damage.




                                                                                      18-8
