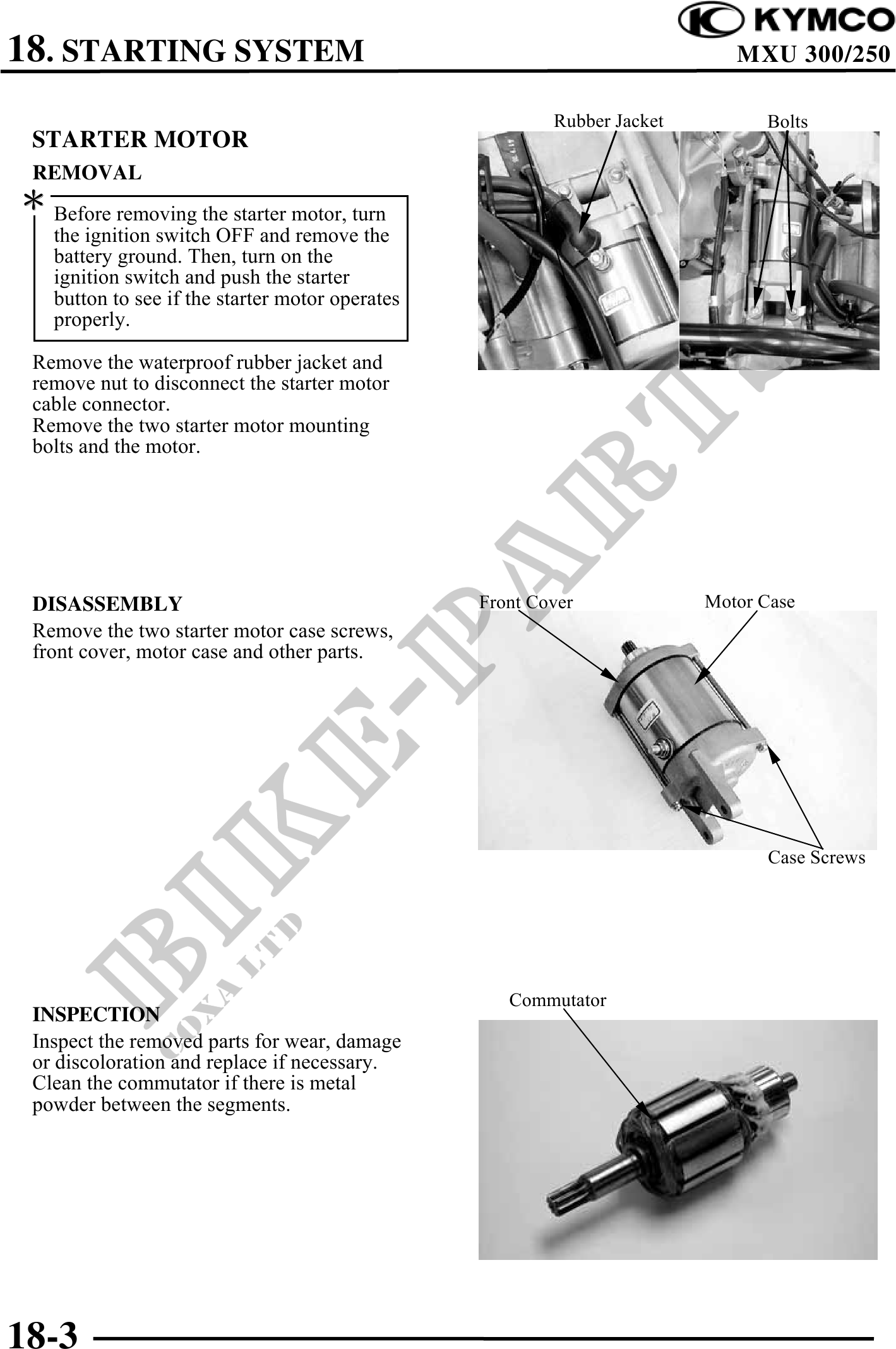

18. STARTING SYSTEM MXU 300/250
Rubber Jacket Bolts
STARTER MOTOR
REMOVAL
Before removing the starter motor, turn
the ignition switch OFF and remove the
battery ground. Then, turn on the
ignition switch and push the starter
button to see if the starter motor operates
properly.
Remove the waterproof rubber jacket and
remove nut to disconnect the starter motor
cable connector.
Remove the two starter motor mounting
bolts and the motor.
DISASSEMBLY Front Cover Motor Case
Remove the two starter motor case screws,
front cover, motor case and other parts.
Case Screws
Commutator
INSPECTION
Inspect the removed parts for wear, damage
or discoloration and replace if necessary.
Clean the commutator if there is metal
powder between the segments.
18-3
