          5. FUEL SYSTEM                                                    MXU 300/250

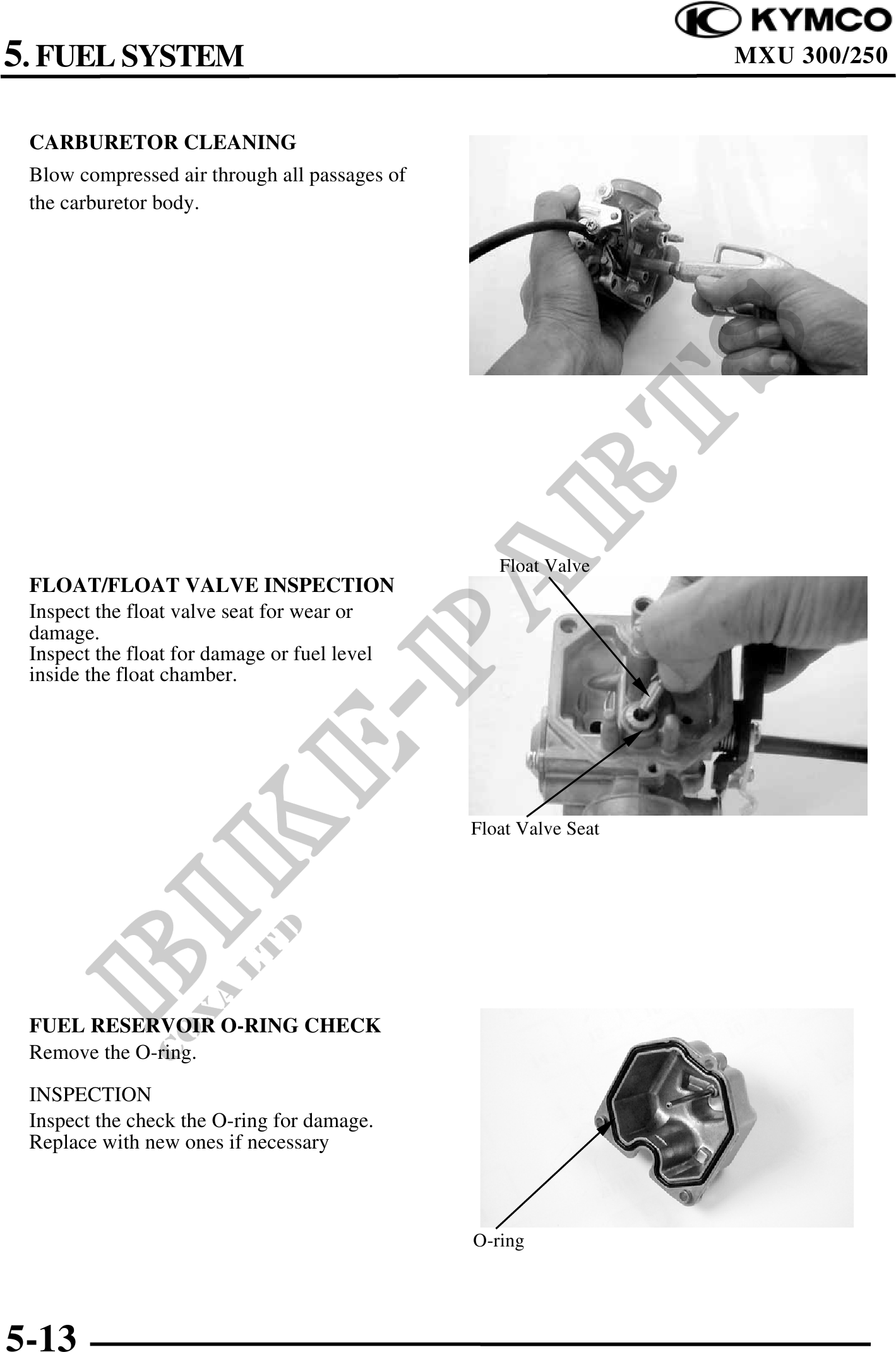

 CARBURETOR CLEANING
 Blow compressed air through all passages of
 the carburetor body.




                                                  Float Valve
 FLOAT/FLOAT VALVE INSPECTION
 Inspect the float valve seat for wear or
 damage.
 Inspect the float for damage or fuel level
 inside the float chamber.




                                               Float Valve Seat




 FUEL RESERVOIR O-RING CHECK
 Remove the O-ring.

 INSPECTION
 Inspect the check the O-ring for damage.
 Replace with new ones if necessary



                                               O-ring
