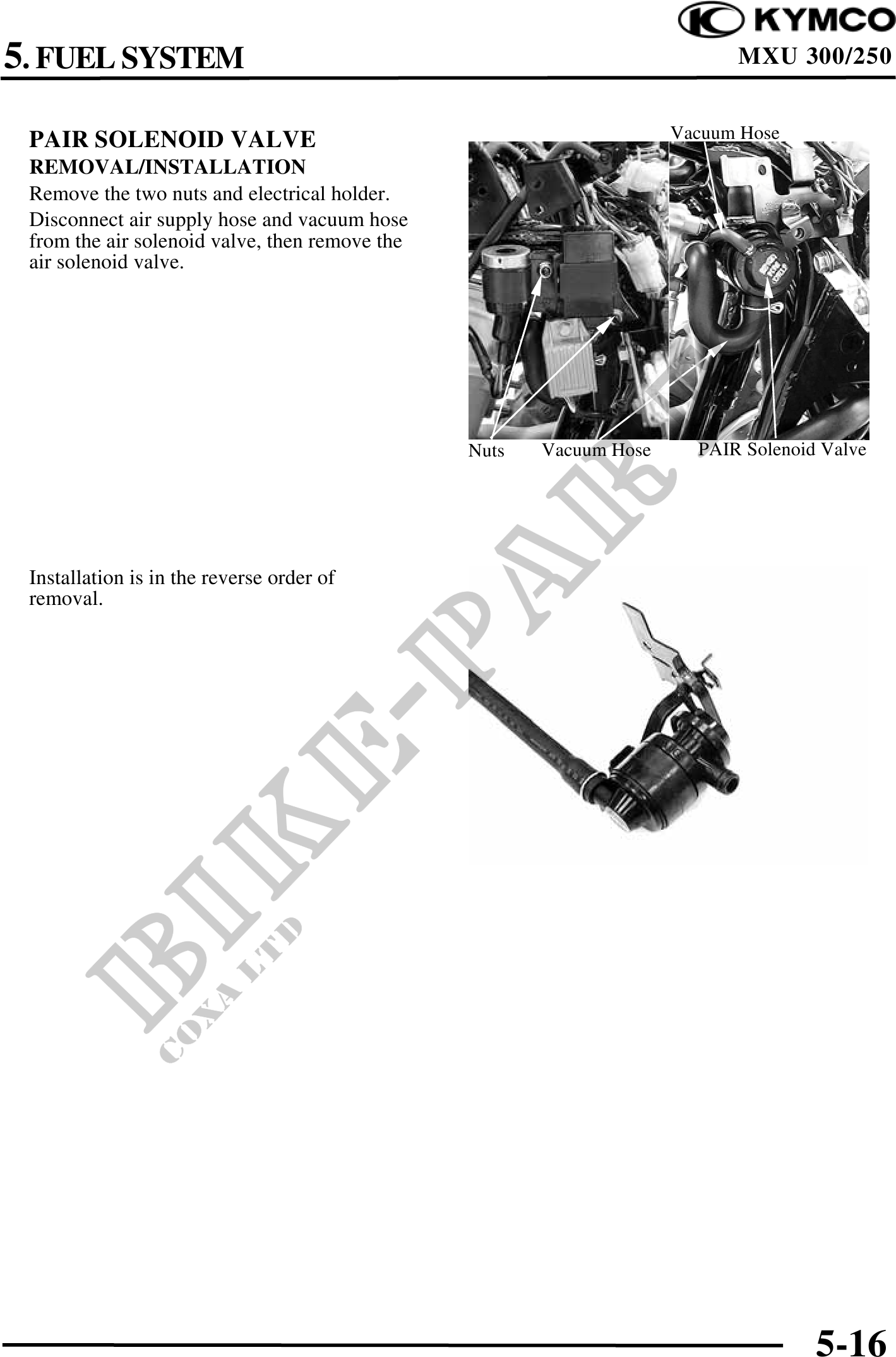

          5. FUEL SYSTEM                                                             MXU 300/250


 PAIR SOLENOID VALVE                                                 Vacuum Hose
 REMOVAL/INSTALLATION
 Remove the two nuts and electrical holder.
 Disconnect air supply hose and vacuum hose
 from the air solenoid valve, then remove the
 air solenoid valve.




                                                Nuts   Vacuum Hose     PAIR Solenoid Valve




 Installation is in the reverse order of
 removal.




                                                                                    5-16
