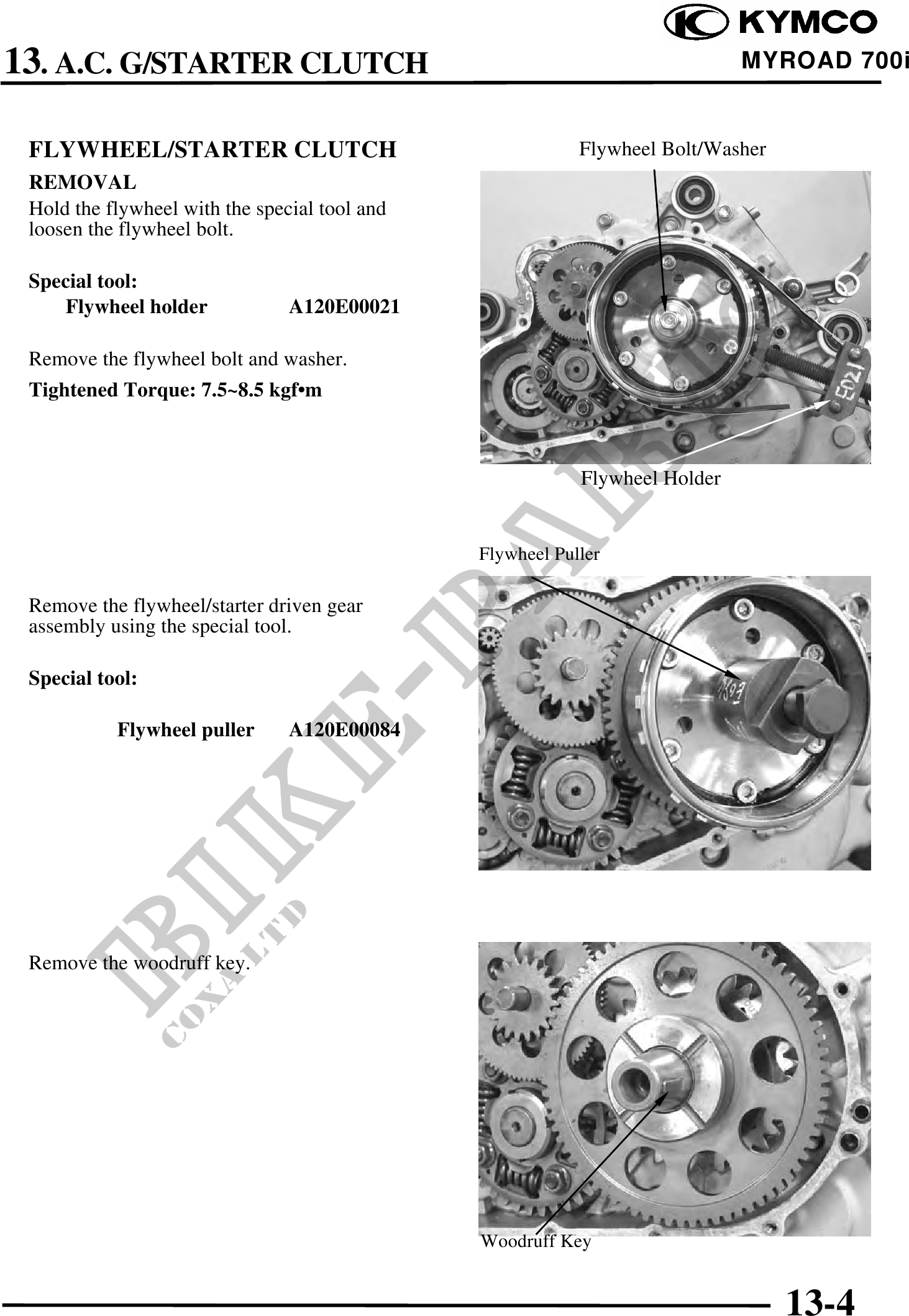

13. A.C. G/STARTER CLUTCH MYROAD 700i
FLYWHEEL/STARTER CLUTCH Flywheel Bolt/Washer
REMOVAL
Hold the flywheel with the special tool and
loosen the flywheel bolt.
Special tool:
Flywheel holder A120E00021
Remove the flywheel bolt and washer.
Tightened Torque: 7.5~8.5 kgf·m
Flywheel Holder
Flywheel Puller
Remove the flywheel/starter driven gear
assembly using the special tool.
Special tool:
Flywheel puller A120E00084
Remove the woodruff key.
Woodruff Key
13-4
