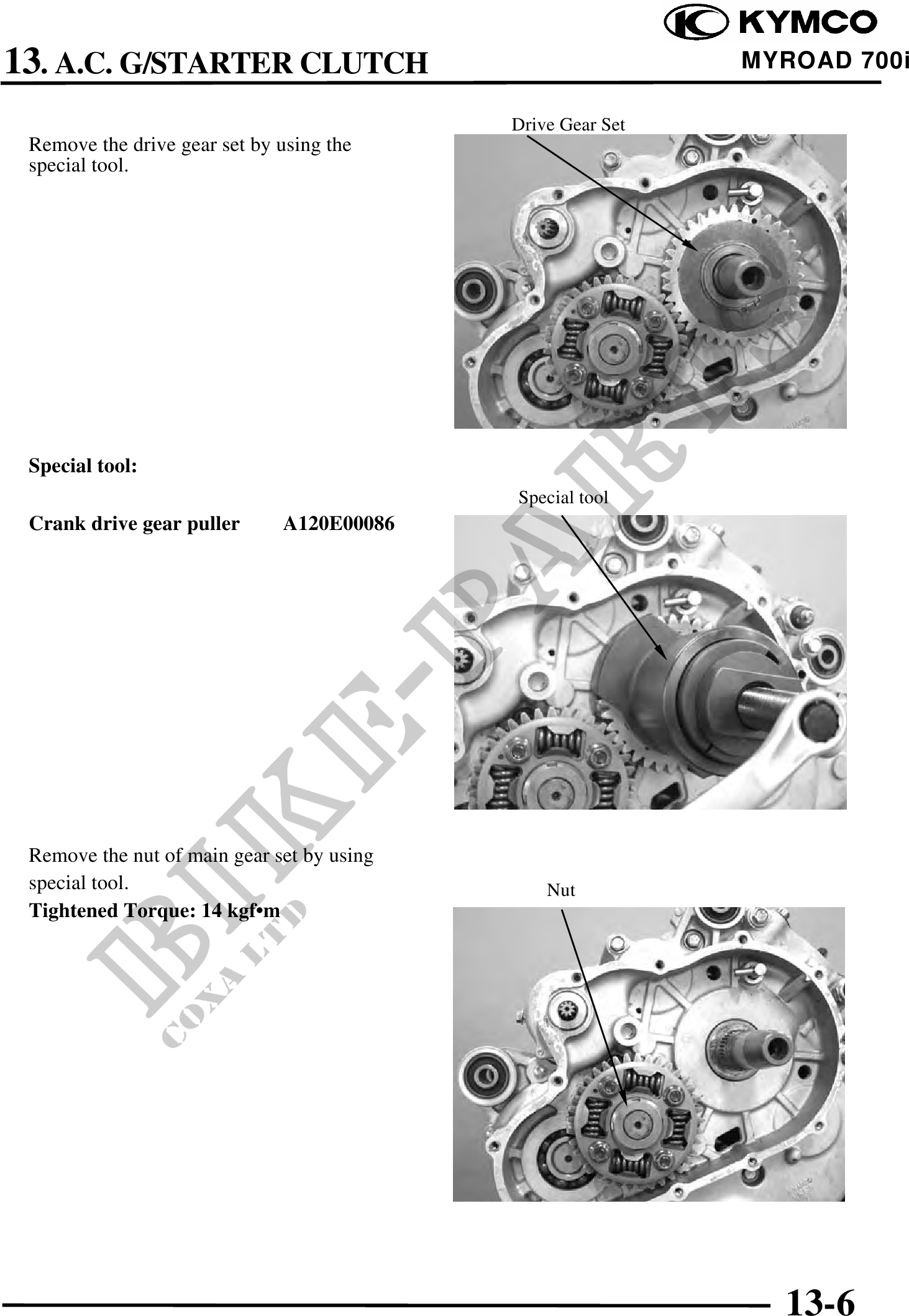

          13. A.C. G/STARTER CLUTCH                                    MYROAD 700i

                                            Drive Gear Set
 Remove the drive gear set by using the
 special tool.




 Special tool:
                                            Special tool
 Crank drive gear puller      A120E00086




 Remove the nut of main gear set by using
 special tool.                                  Nut
 Tightened Torque: 14 kgf·m




                                                               13-6
