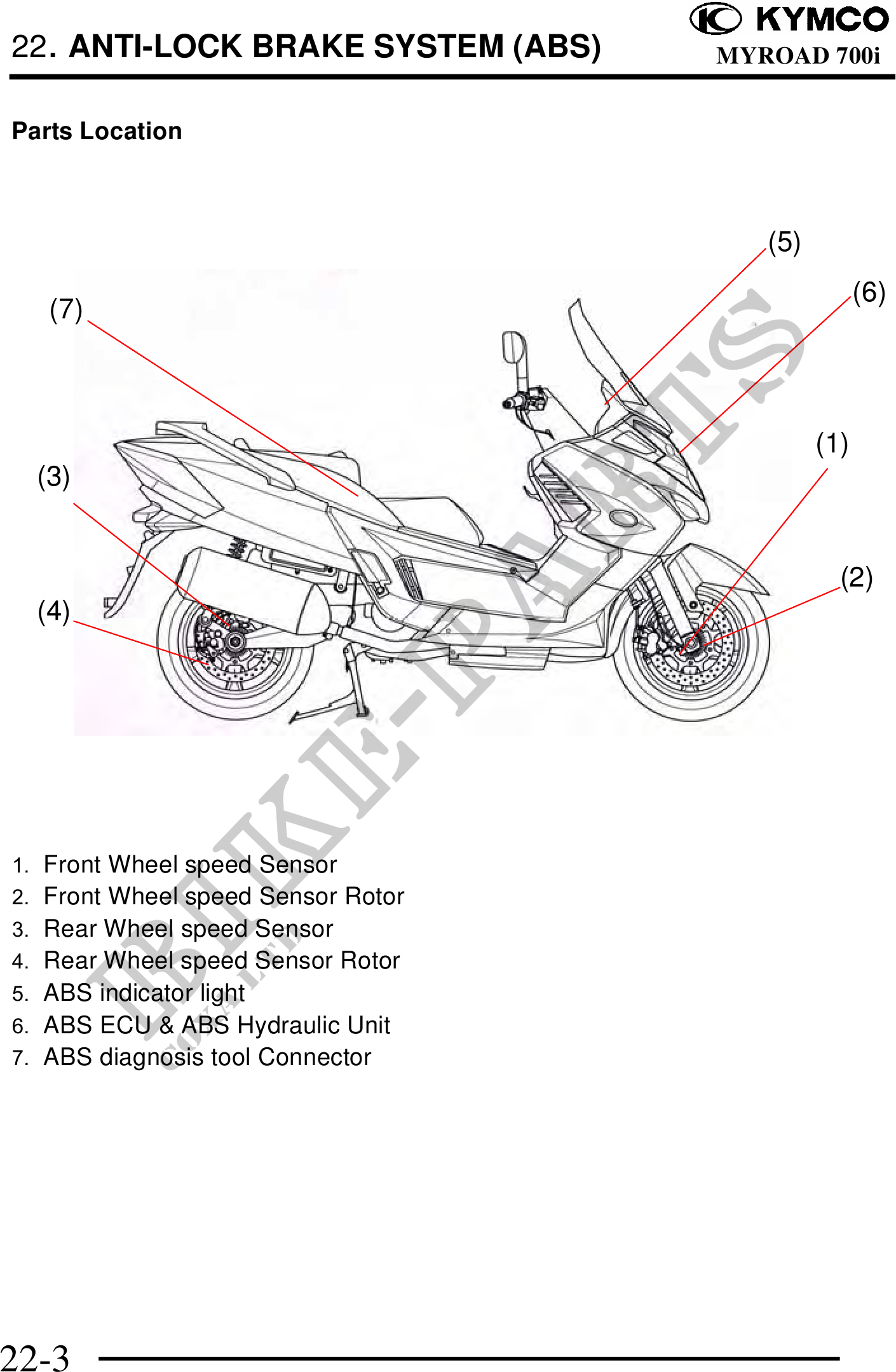

          22.ANTI-LOCK BRAKE SYSTEM (ABS)     MYROAD 700i


Parts Location



                                       (5)
                                                   (6)
   (7)



                                             (1)
  (3)


                                               (2)
  (4)




1. Front Wheel speed Sensor
2. Front Wheel speed Sensor Rotor
3. Rear Wheel speed Sensor
4. Rear Wheel speed Sensor Rotor
5. ABS indicator light
6. ABS ECU & ABS Hydraulic Unit
7. ABS diagnosis tool Connector




22-3
