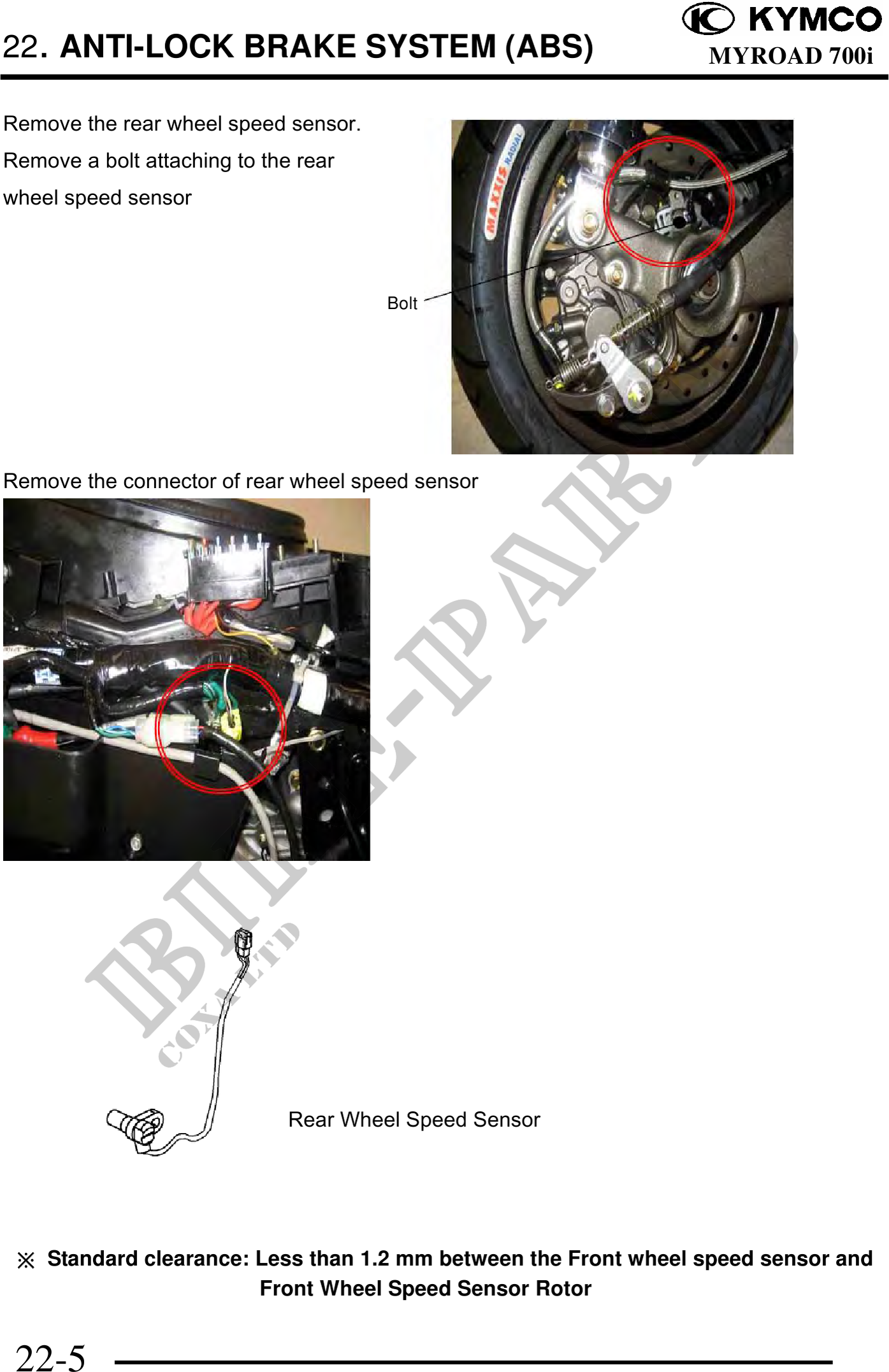

          22.ANTI-LOCK BRAKE SYSTEM (ABS)                                 MYROAD 700i

Remove the rear wheel speed sensor.
Remove a bolt attaching to the rear
wheel speed sensor



                                       Bolt




Remove the connector of rear wheel speed sensor




                              Rear Wheel Speed Sensor




  Standard clearance: Less than 1.2 mm between the Front wheel speed sensor and
                      Front Wheel Speed Sensor Rotor


 22-5
