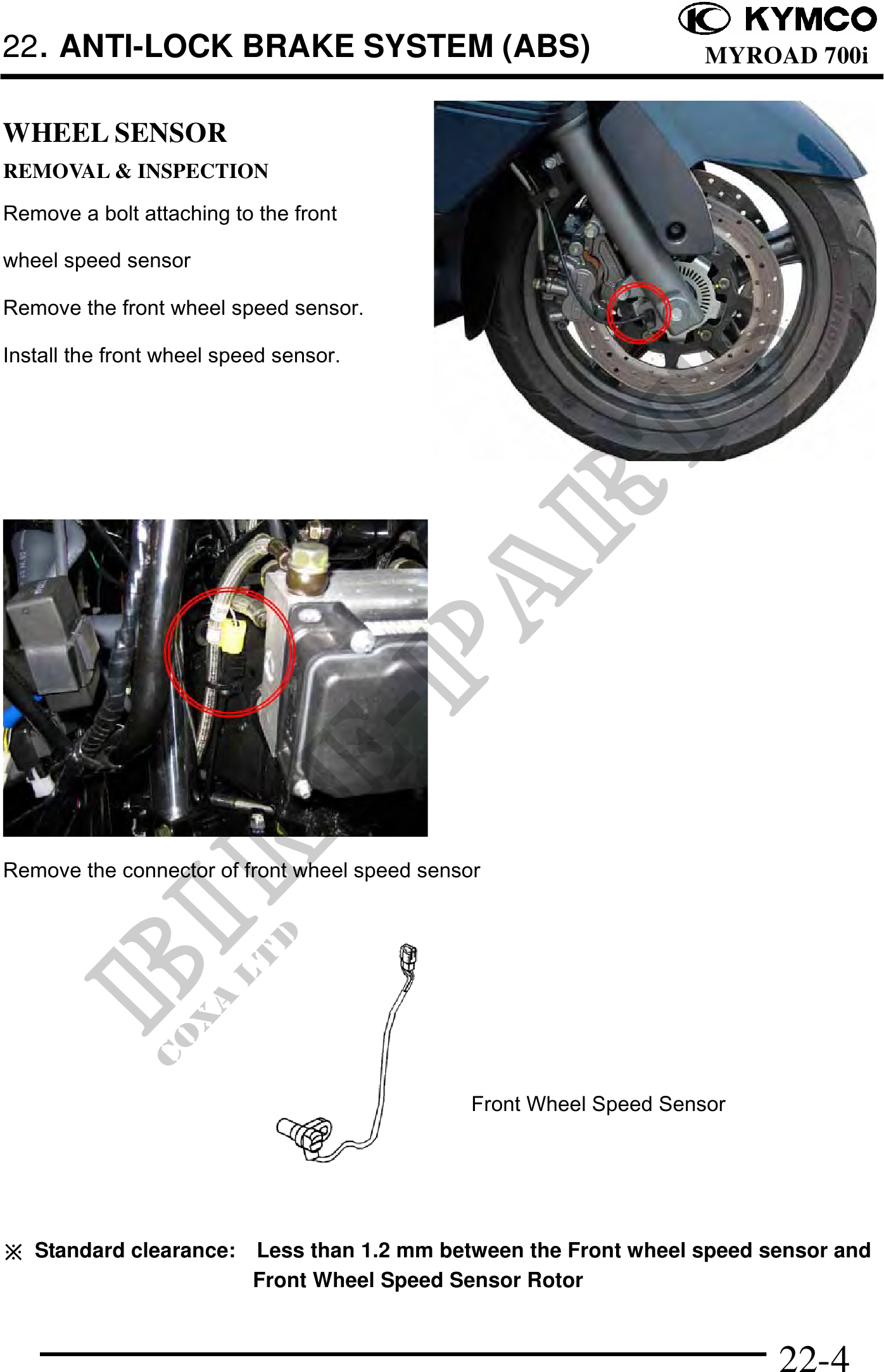

          22.ANTI-LOCK BRAKE SYSTEM (ABS)                                      MYROAD 700i


WHEEL SENSOR
REMOVAL & INSPECTION
Remove a bolt attaching to the front

wheel speed sensor

Remove the front wheel speed sensor.

Install the front wheel speed sensor.




Remove the connector of front wheel speed sensor




                                               Front Wheel Speed Sensor




 Standard clearance: Less than 1.2 mm between the Front wheel speed sensor and
                     Front Wheel Speed Sensor Rotor



                                                                          22-4
