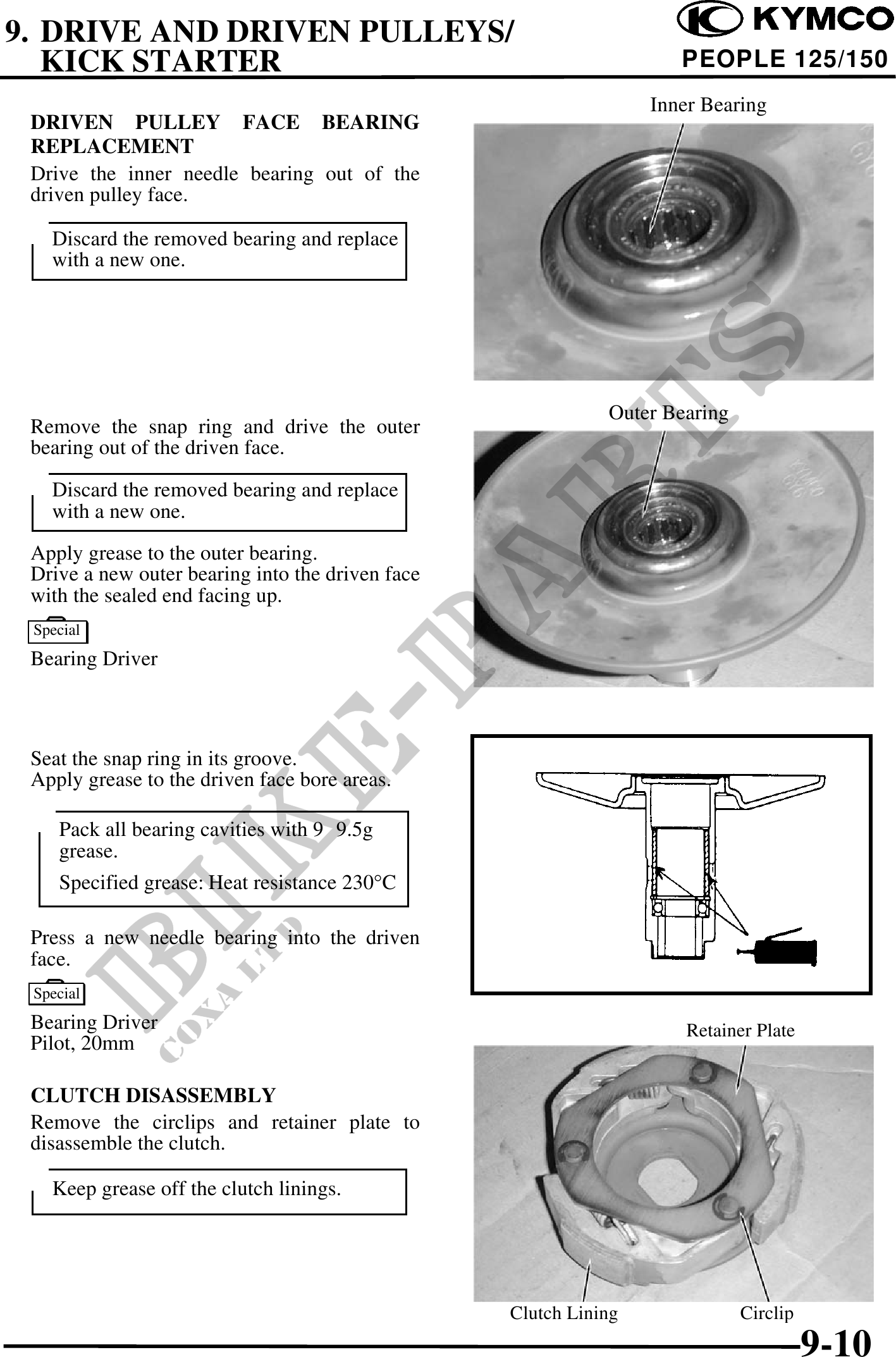

          9. DRIVE AND DRIVEN PULLEYS/
   KICK STARTER                                                      PEOPLE 125/150
                                                                  Inner Bearing
 DRIVEN PULLEY FACE BEARING
 REPLACEMENT
 Drive the inner needle bearing out of the
 driven pulley face.

   Discard the removed bearing and replace
   with a new one.




                                                             Outer Bearing
 Remove the snap ring and drive the outer
 bearing out of the driven face.

   Discard the removed bearing and replace
   with a new one.
 Apply grease to the outer bearing.
 Drive a new outer bearing into the driven face
 with the sealed end facing up.
 Special
 Bearing Driver



 Seat the snap ring in its groove.
 Apply grease to the driven face bore areas.

    Pack all bearing cavities with 9 9.5g
    grease.
    Specified grease: Heat resistance 230°C

 Press a new needle bearing into the driven
 face.
 Special
 Bearing Driver                                                       Retainer Plate
 Pilot, 20mm

 CLUTCH DISASSEMBLY
 Remove the circlips and retainer plate to
 disassemble the clutch.

   Keep grease off the clutch linings.




                                                  Clutch Lining              Circlip
                                                                                       9-10
