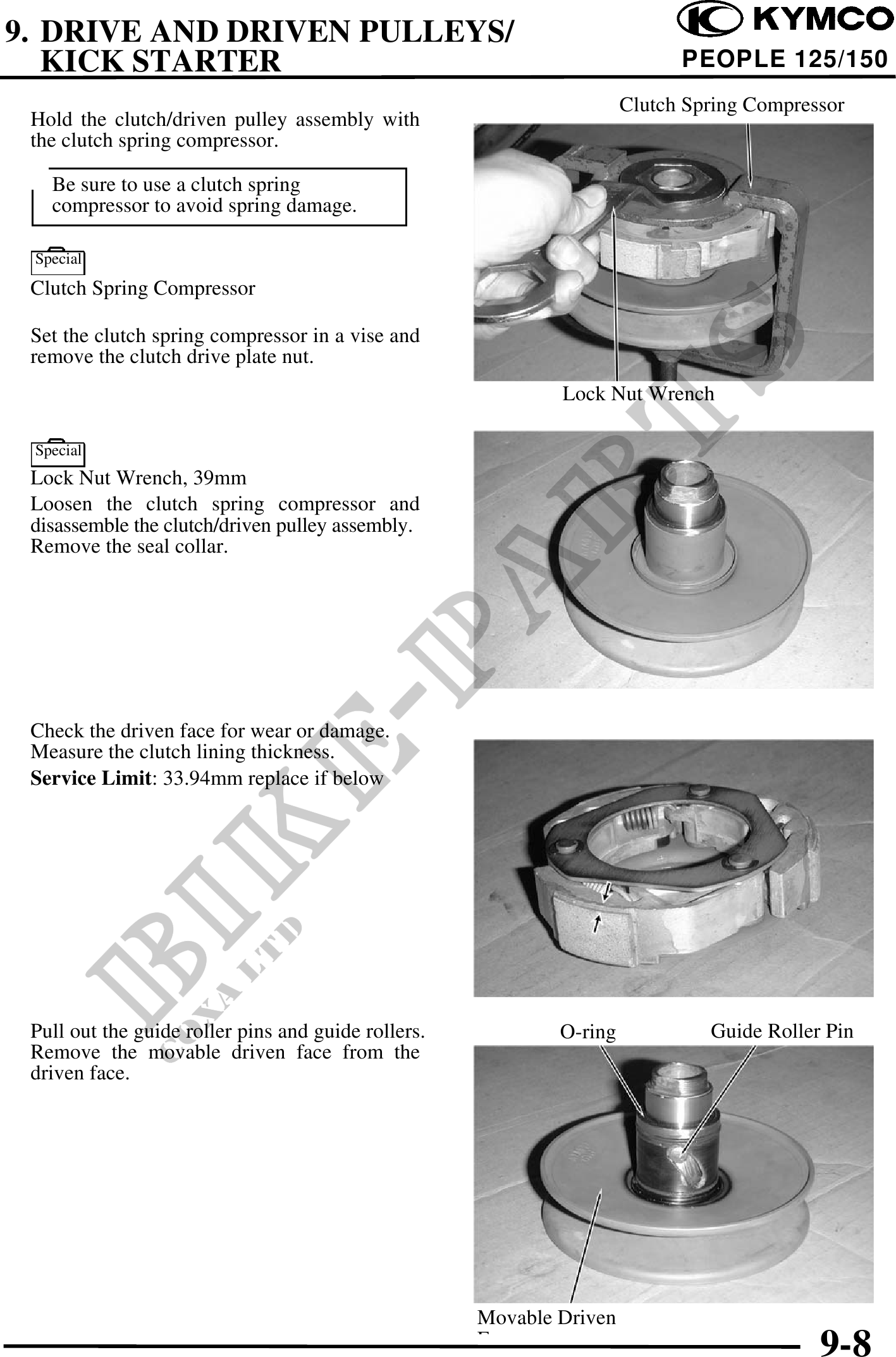

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER PEOPLE 125/150
Clutch Spring Compressor
Hold the clutch/driven pulley assembly with
the clutch spring compressor.
Be sure to use a clutch spring
compressor to avoid spring damage.
Special
Clutch Spring Compressor
Set the clutch spring compressor in a vise and
remove the clutch drive plate nut.
Lock Nut Wrench
Special
Lock Nut Wrench, 39mm
Loosen the clutch spring compressor and
disassemble the clutch/driven pulley assembly.
Remove the seal collar.
Check the driven face for wear or damage.
Measure the clutch lining thickness.
Service Limit: 33.94mm replace if below
Pull out the guide roller pins and guide rollers. O-ring Guide Roller Pin
Remove the movable driven face from the
driven face.
Movable Driven
F
9-8
