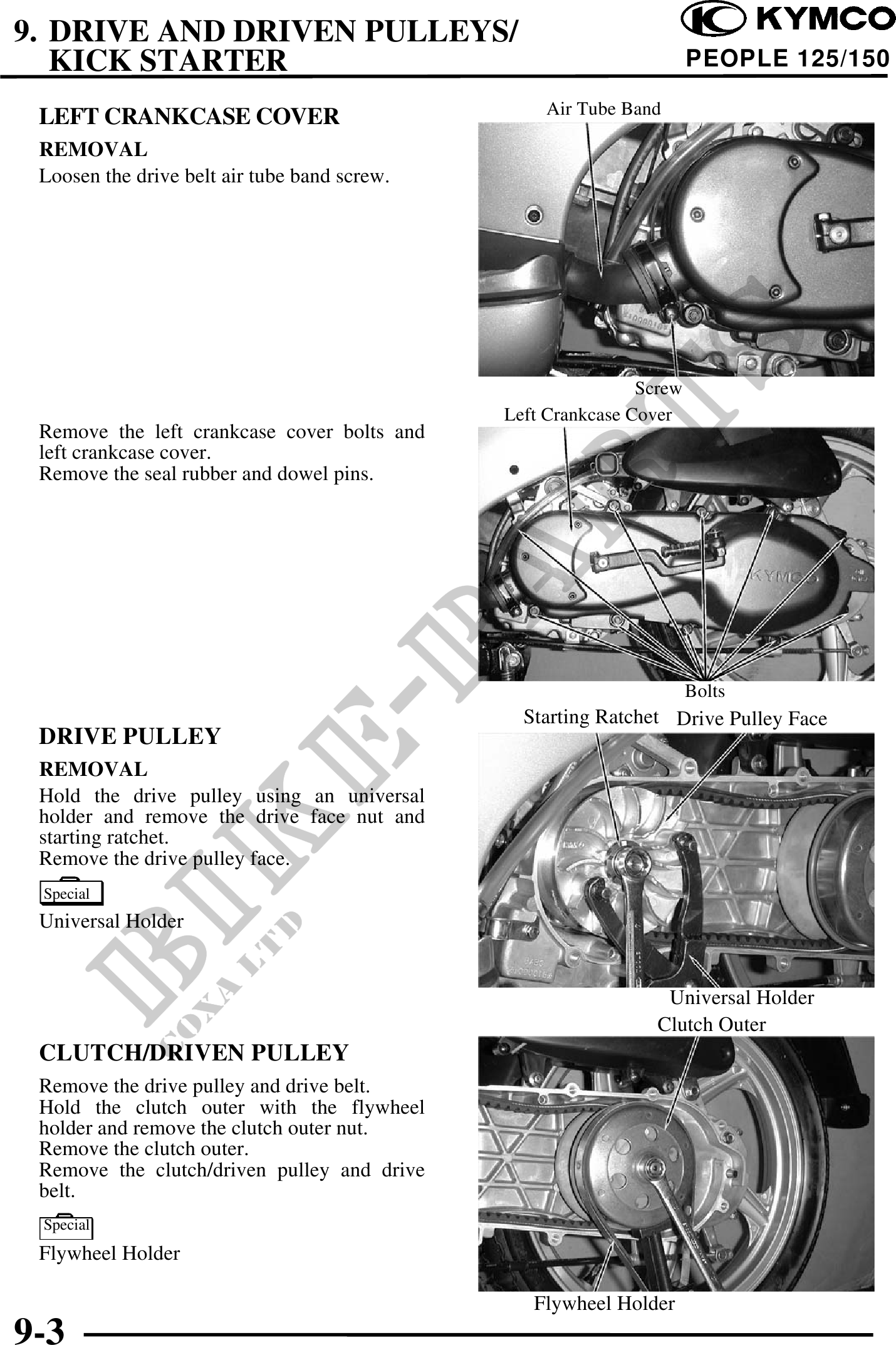

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER PEOPLE 125/150
Air Tube Band
LEFT CRANKCASE COVER
REMOVAL
Loosen the drive belt air tube band screw.
Screw
Left Crankcase Cover
Remove the left crankcase cover bolts and
left crankcase cover.
Remove the seal rubber and dowel pins.
Bolts
Starting Ratchet Drive Pulley Face
DRIVE PULLEY
REMOVAL
Hold the drive pulley using an universal
holder and remove the drive face nut and
starting ratchet.
Remove the drive pulley face.
Special
Universal Holder
Universal Holder
Clutch Outer
CLUTCH/DRIVEN PULLEY
Remove the drive pulley and drive belt.
Hold the clutch outer with the flywheel
holder and remove the clutch outer nut.
Remove the clutch outer.
Remove the clutch/driven pulley and drive
belt.
Special
Flywheel Holder
Flywheel Holder
9-3
