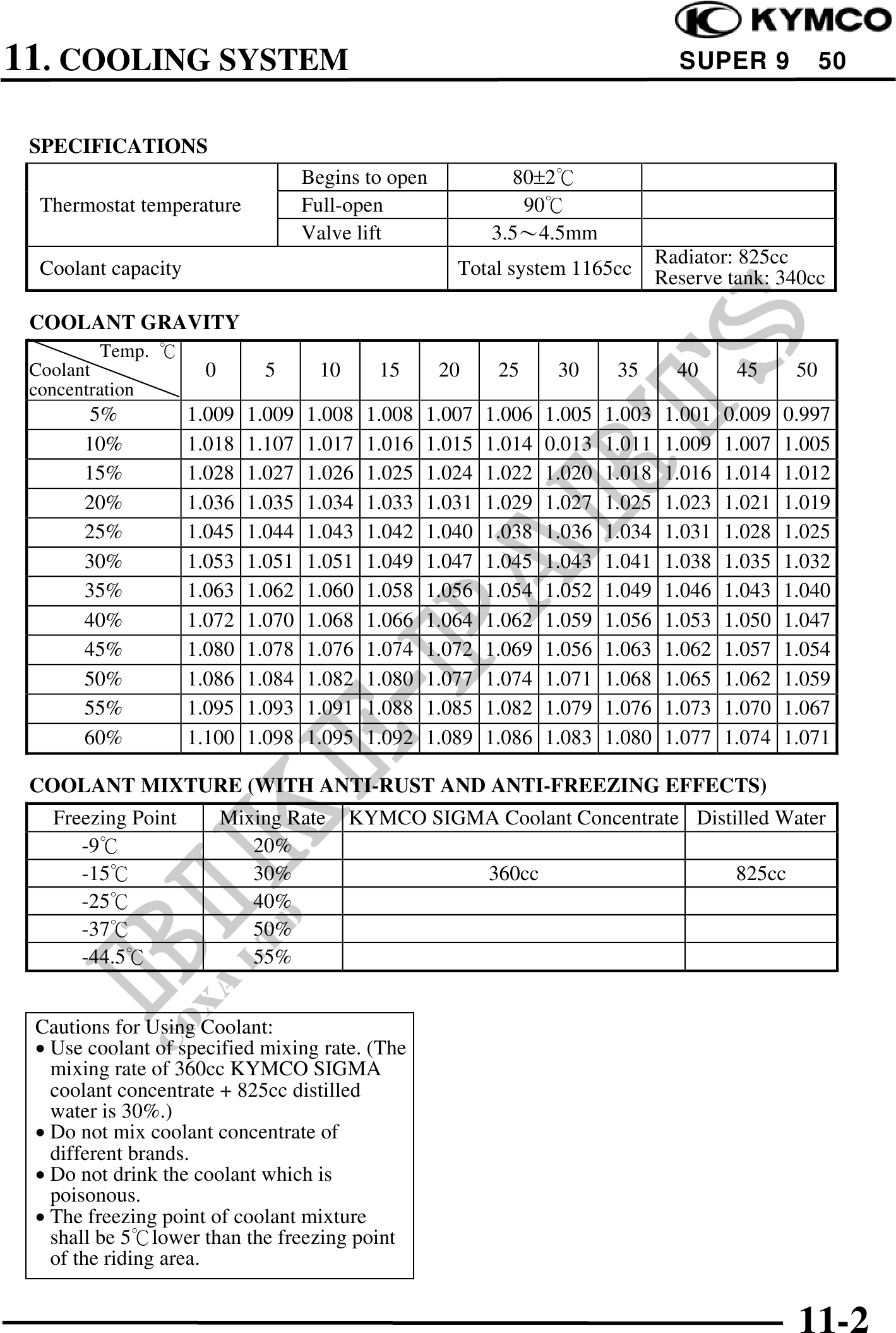

          11. COOLING SYSTEM                                                                    SUPER 9              50


 SPECIFICATIONS
                                    Begins to open            802
 Thermostat temperature             Full-open                  90
                                    Valve lift              3.54.5mm
                                                                                    Radiator: 825cc
 Coolant capacity                                      Total system 1165cc          Reserve tank: 340cc

 COOLANT GRAVITY
         Temp.
 Coolant             0       5        10      15     20      25      30      35       40      45      50
 concentration
       5%           1.009   1.009   1.008   1.008   1.007   1.006   1.005   1.003    1.001   0.009   0.997
      10%           1.018   1.107   1.017   1.016   1.015   1.014   0.013   1.011    1.009   1.007   1.005
      15%           1.028   1.027   1.026   1.025   1.024   1.022   1.020   1.018    1.016   1.014   1.012
      20%           1.036   1.035   1.034   1.033   1.031   1.029   1.027   1.025    1.023   1.021   1.019
      25%           1.045   1.044   1.043   1.042   1.040   1.038   1.036   1.034    1.031   1.028   1.025
      30%           1.053   1.051   1.051   1.049   1.047   1.045   1.043   1.041    1.038   1.035   1.032
      35%           1.063   1.062   1.060   1.058   1.056   1.054   1.052   1.049    1.046   1.043   1.040
      40%           1.072   1.070   1.068   1.066   1.064   1.062   1.059   1.056    1.053   1.050   1.047
      45%           1.080   1.078   1.076   1.074   1.072   1.069   1.056   1.063    1.062   1.057   1.054
      50%           1.086   1.084   1.082   1.080   1.077   1.074   1.071   1.068    1.065   1.062   1.059
      55%           1.095   1.093   1.091   1.088   1.085   1.082   1.079   1.076    1.073   1.070   1.067
      60%           1.100   1.098   1.095   1.092   1.089   1.086   1.083   1.080    1.077   1.074   1.071

 COOLANT MIXTURE (WITH ANTI-RUST AND ANTI-FREEZING EFFECTS)
   Freezing Point        Mixing Rate       KYMCO SIGMA Coolant Concentrate Distilled Water
      -9                    20%
      -15                   30%                             360cc                             825cc
      -25                   40%
      -37                   50%
      -44.5                 55%


 Cautions for Using Coolant:
 · Use coolant of specified mixing rate. (The
   mixing rate of 360cc KYMCO SIGMA
   coolant concentrate + 825cc distilled
   water is 30%.)
 · Do not mix coolant concentrate of
   different brands.
 · Do not drink the coolant which is
   poisonous.
 · The freezing point of coolant mixture
   shall be 5lower than the freezing point
   of the riding area.
