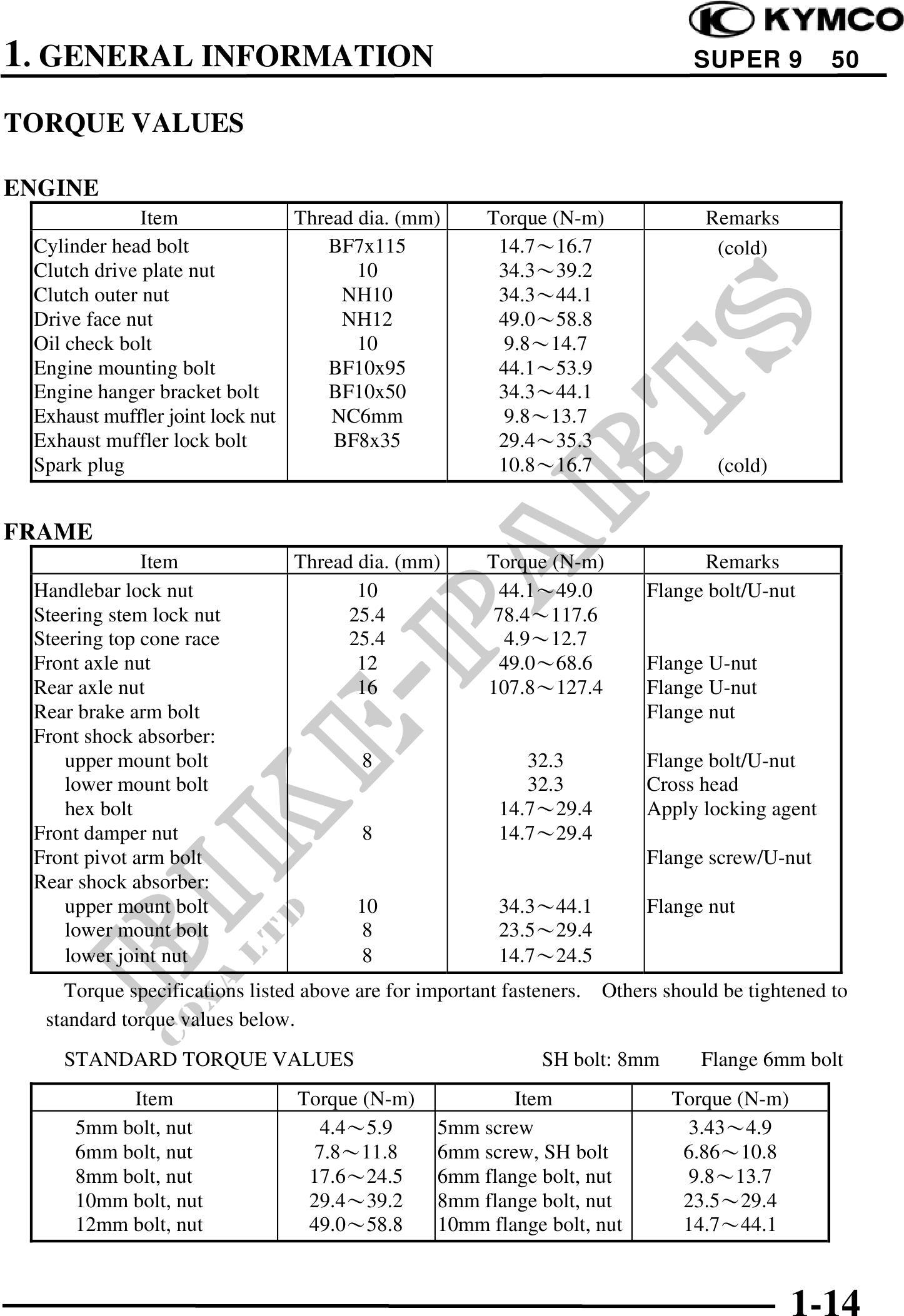

          1. GENERAL INFORMATION                                                          SUPER 9          50

TORQUE VALUES

ENGINE
              Item              Thread dia. (mm)       Torque (N-m)               Remarks
 Cylinder head bolt                BF7x115              14.716.7                   (cold)
 Clutch drive plate nut                10               34.339.2
 Clutch outer nut                    NH10               34.344.1
 Drive face nut                      NH12               49.058.8
 Oil check bolt                        10                9.814.7
 Engine mounting bolt              BF10x95              44.153.9
 Engine hanger bracket bolt        BF10x50              34.344.1
 Exhaust muffler joint lock nut     NC6mm                9.813.7
 Exhaust muffler lock bolt          BF8x35              29.435.3
 Spark plug                                             10.816.7                   (cold)


FRAME
              Item              Thread dia. (mm)       Torque (N-m)              Remarks
 Handlebar lock nut                    10                44.149.0          Flange bolt/U-nut
 Steering stem lock nut               25.4              78.4117.6
 Steering top cone race               25.4                4.912.7
 Front axle nut                        12                49.068.6          Flange U-nut
 Rear axle nut                         16              107.8127.4          Flange U-nut
 Rear brake arm bolt                                                       Flange nut
 Front shock absorber:
    upper mount bolt                    8                   32.3           Flange bolt/U-nut
    lower mount bolt                                        32.3           Cross head
    hex bolt                                             14.729.4          Apply locking agent
 Front damper nut                       8                14.729.4
 Front pivot arm bolt                                                      Flange screw/U-nut
 Rear shock absorber:
    upper mount bolt                   10                34.344.1          Flange nut
    lower mount bolt                    8                23.529.4
    lower joint nut                     8                14.724.5
    Torque specifications listed above are for important fasteners.   Others should be tightened to
  standard torque values below.
    STANDARD TORQUE VALUES                                    SH bolt: 8mm       Flange 6mm bolt
          Item                  Torque (N-m)             Item                 Torque (N-m)
     5mm bolt, nut                 4.45.9        5mm screw                      3.434.9
     6mm bolt, nut                7.811.8        6mm screw, SH bolt            6.8610.8
     8mm bolt, nut               17.624.5        6mm flange bolt, nut           9.813.7
     10mm bolt, nut              29.439.2        8mm flange bolt, nut          23.529.4
     12mm bolt, nut              49.058.8        10mm flange bolt, nut         14.744.1



                                                                                             1-14
