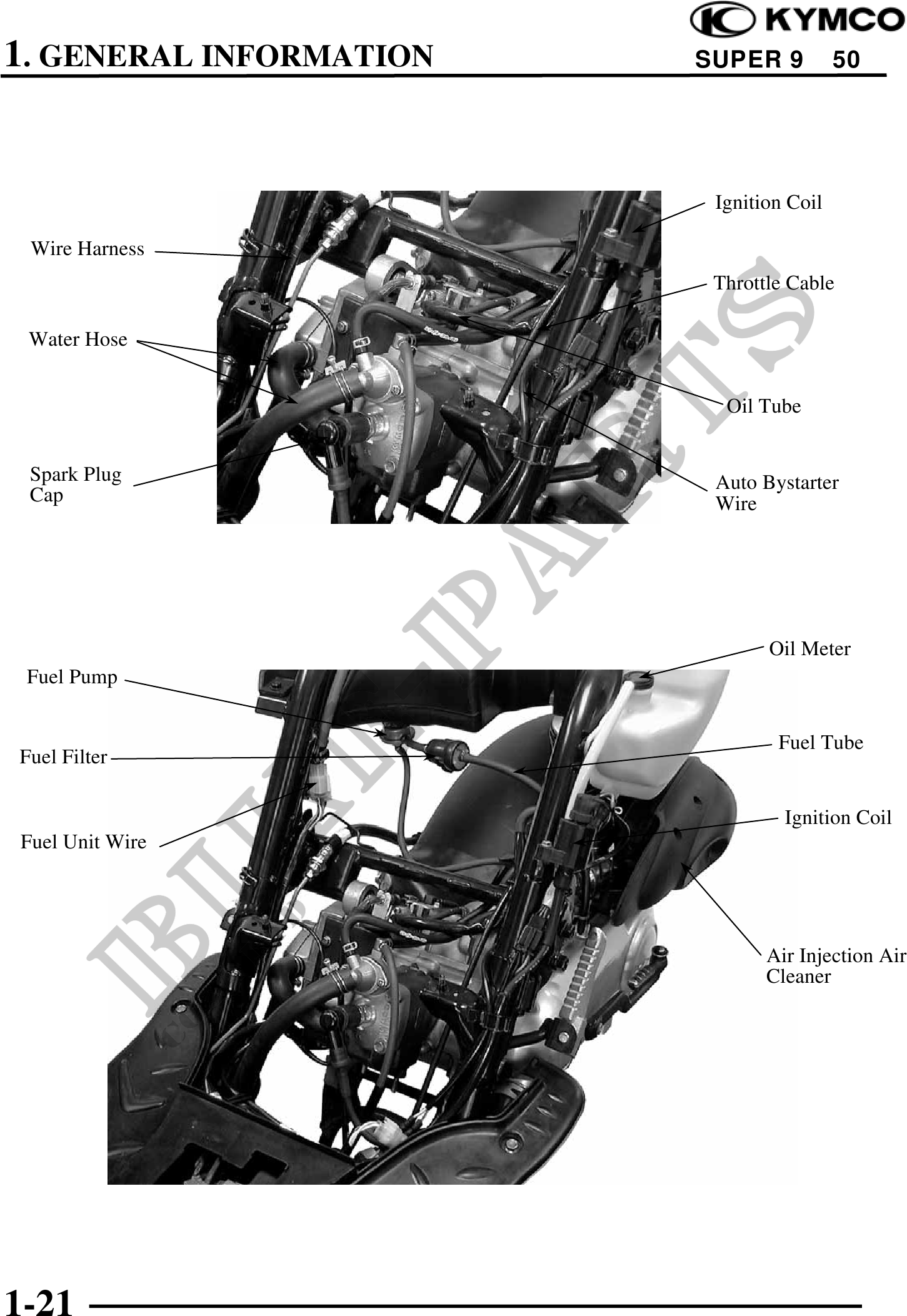

          1. GENERAL INFORMATION   SUPER 9          50




                          Ignition Coil

 Wire Harness
                          Throttle Cable

 Water Hose


                           Oil Tube


 Spark Plug               Auto Bystarter
 Cap                      Wire




                                Oil Meter
 Fuel Pump


                                 Fuel Tube
Fuel Filter

                                  Ignition Coil
Fuel Unit Wire




                                Air Injection Air
                                Cleaner




1-21
