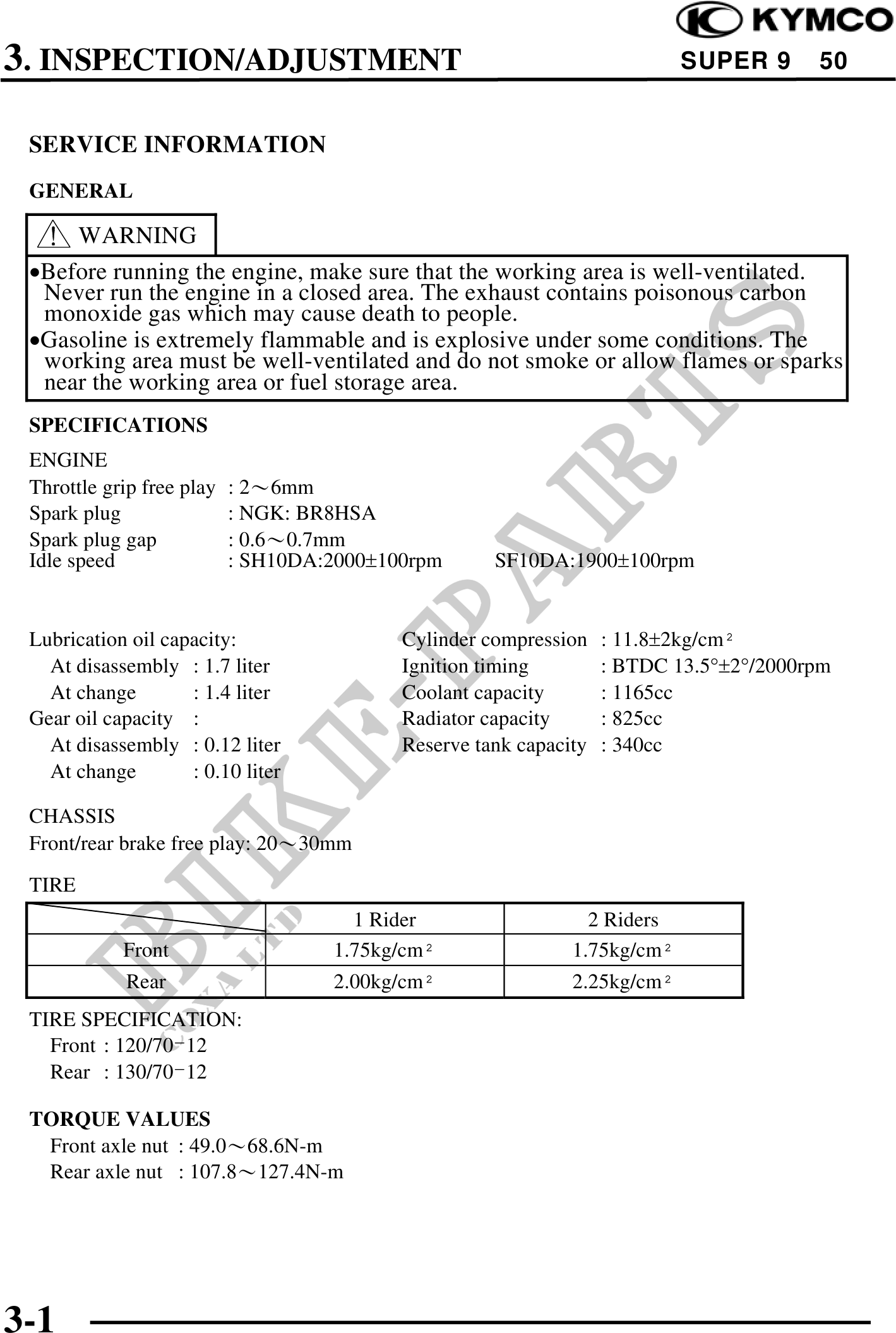

          3. INSPECTION/ADJUSTMENT                                                  SUPER 9     50


 SERVICE INFORMATION
 GENERAL

   WARNING
 ·Before running the engine, make sure that the working area is well-ventilated.
  Never run the engine in a closed area. The exhaust contains poisonous carbon
  monoxide gas which may cause death to people.
 ·Gasoline is extremely flammable and is explosive under some conditions. The
  working area must be well-ventilated and do not smoke or allow flames or sparks
  near the working area or fuel storage area.
 SPECIFICATIONS
 ENGINE
 Throttle grip free play   : 26mm
 Spark plug                : NGK: BR8HSA
 Spark plug gap            : 0.60.7mm
 Idle speed                : SH10DA:2000100rpm      SF10DA:1900100rpm


 Lubrication oil capacity:                Cylinder compression    : 11.82kg/cm
   At disassembly : 1.7 liter             Ignition timing         : BTDC 13.5°2°/2000rpm
   At change        : 1.4 liter           Coolant capacity        : 1165cc
 Gear oil capacity :                      Radiator capacity       : 825cc
   At disassembly : 0.12 liter            Reserve tank capacity   : 340cc
   At change        : 0.10 liter

 CHASSIS
 Front/rear brake free play: 2030mm

 TIRE
                                      1 Rider                  2 Riders
            Front                   1.75kg/cm                1.75kg/cm
            Rear                    2.00kg/cm                2.25kg/cm
 TIRE SPECIFICATION:
   Front : 120/70­12
   Rear : 130/70­12

 TORQUE VALUES
  Front axle nut : 49.068.6N-m
  Rear axle nut : 107.8127.4N-m




3-1
