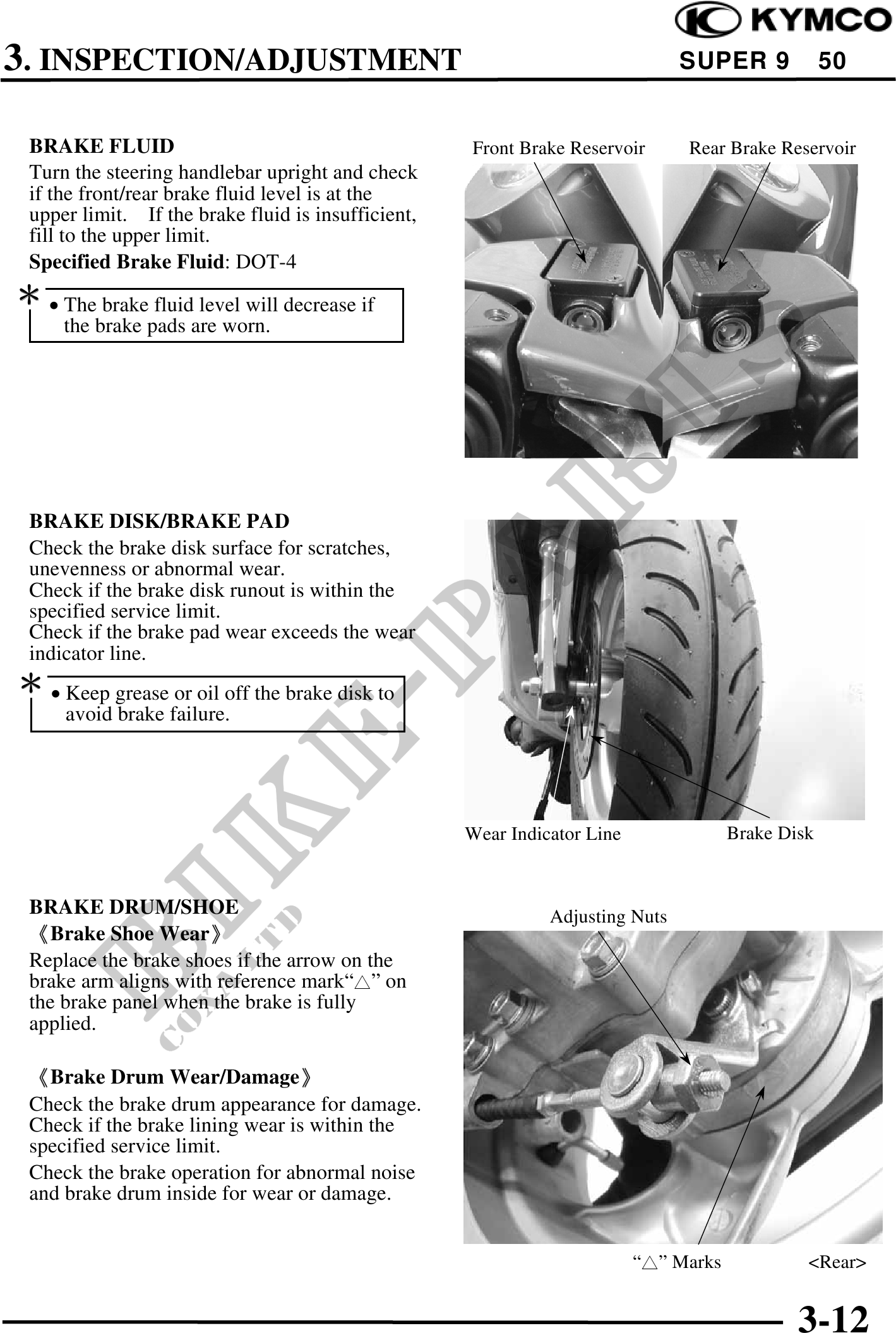

          3. INSPECTION/ADJUSTMENT                                                       SUPER 9            50


 BRAKE FLUID                                        Front Brake Reservoir      Rear Brake Reservoir
 Turn the steering handlebar upright and check
 if the front/rear brake fluid level is at the
 upper limit. If the brake fluid is insufficient,
 fill to the upper limit.
 Specified Brake Fluid: DOT-4
 · The brake fluid level will decrease if
     the brake pads are worn.




 BRAKE DISK/BRAKE PAD
 Check the brake disk surface for scratches,
 unevenness or abnormal wear.
 Check if the brake disk runout is within the
 specified service limit.
 Check if the brake pad wear exceeds the wear
 indicator line.
 · Keep grease or oil off the brake disk to
     avoid brake failure.




                                                    Wear Indicator Line              Brake Disk


 BRAKE DRUM/SHOE                                              Adjusting Nuts
 Brake Shoe Wear
 Replace the brake shoes if the arrow on the
 brake arm aligns with reference mark"" on
 the brake panel when the brake is fully
 applied.

 Brake Drum Wear/Damage
 Check the brake drum appearance for damage.
 Check if the brake lining wear is within the
 specified service limit.
 Check the brake operation for abnormal noise
 and brake drum inside for wear or damage.


                                                                          "" Marks
