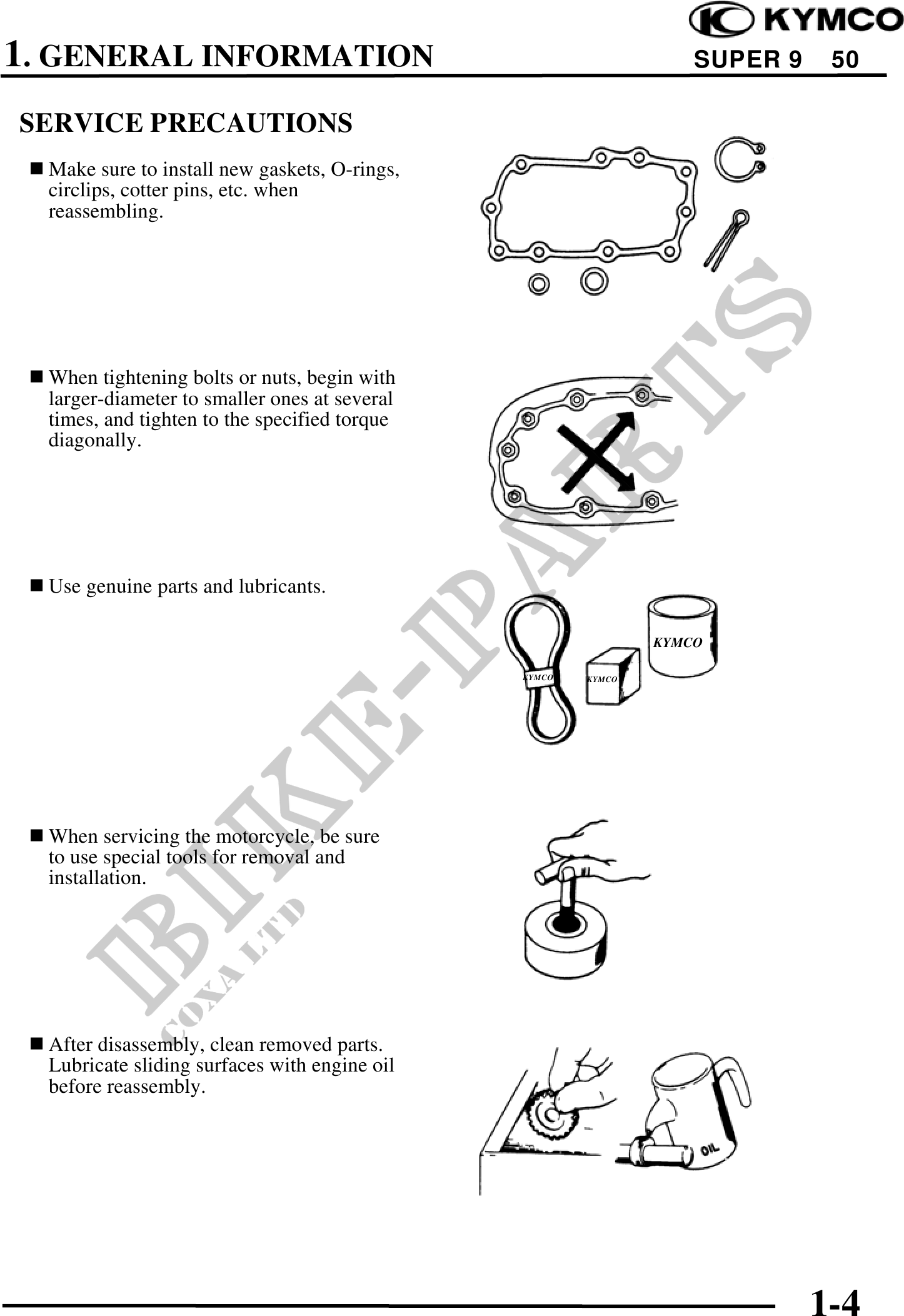

          1. GENERAL INFORMATION                                             SUPER 9    50

SERVICE PRECAUTIONS
  Make sure to install new gaskets, O-rings,
  circlips, cotter pins, etc. when
  reassembling.




  When tightening bolts or nuts, begin with
  larger-diameter to smaller ones at several
  times, and tighten to the specified torque
  diagonally.




  Use genuine parts and lubricants.

                                                               KYMCO

                                               KYMCO   KYMCO




  When servicing the motorcycle, be sure
  to use special tools for removal and
  installation.




  After disassembly, clean removed parts.
  Lubricate sliding surfaces with engine oil
  before reassembly.




                                                                             1-4
