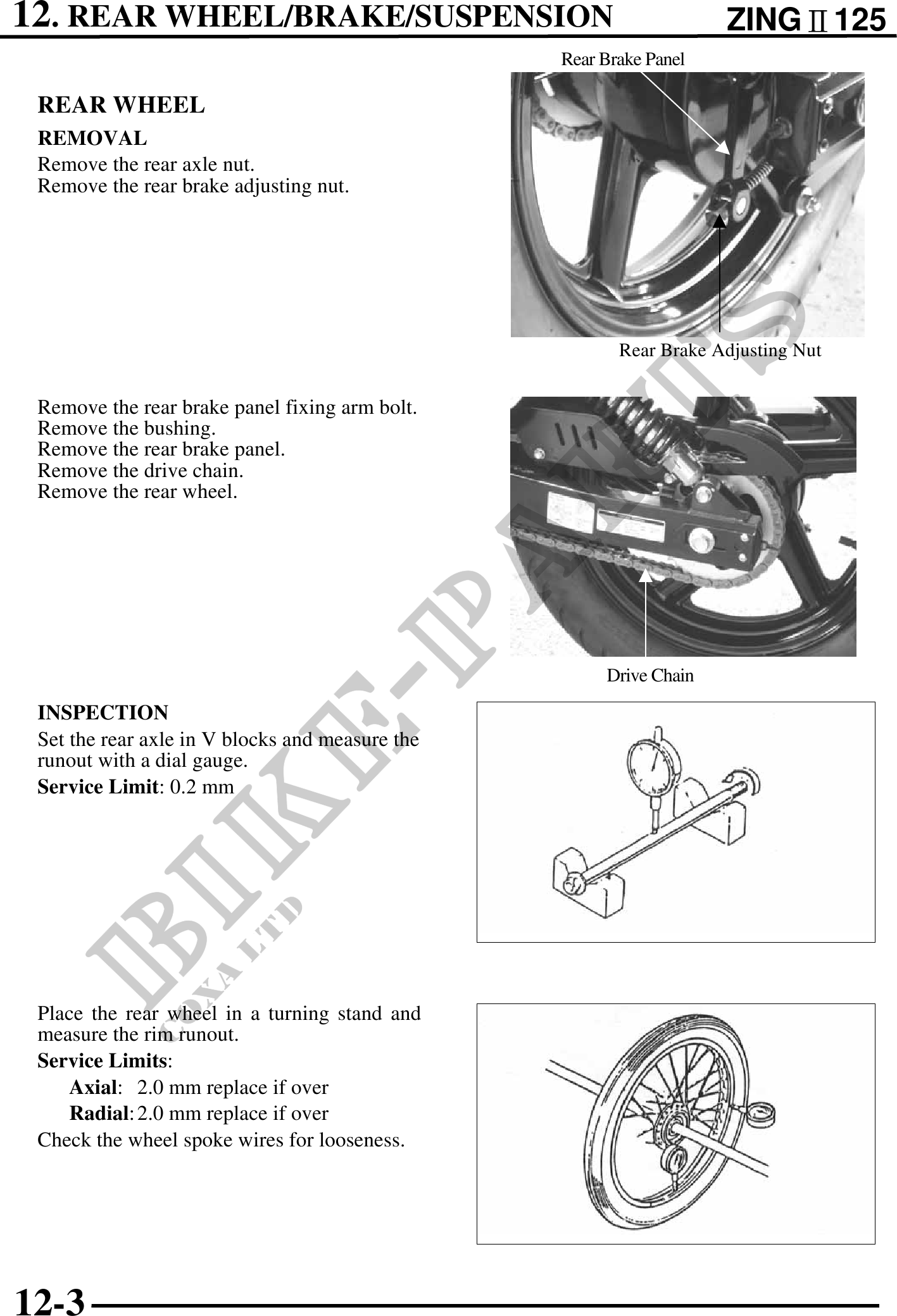

12. REAR WHEEL/BRAKE/SUSPENSION ZING125
Rear Brake Panel
REAR WHEEL
REMOVAL
Remove the rear axle nut.
Remove the rear brake adjusting nut.
Rear Brake Adjusting Nut
Remove the rear brake panel fixing arm bolt.
Remove the bushing.
Remove the rear brake panel.
Remove the drive chain.
Remove the rear wheel.
Drive Chain
INSPECTION
Set the rear axle in V blocks and measure the
runout with a dial gauge.
Service Limit: 0.2 mm
Place the rear wheel in a turning stand and
measure the rim runout.
Service Limits:
Axial: 2.0 mm replace if over
Radial: 2.0 mm replace if over
Check the wheel spoke wires for looseness.
12-3
