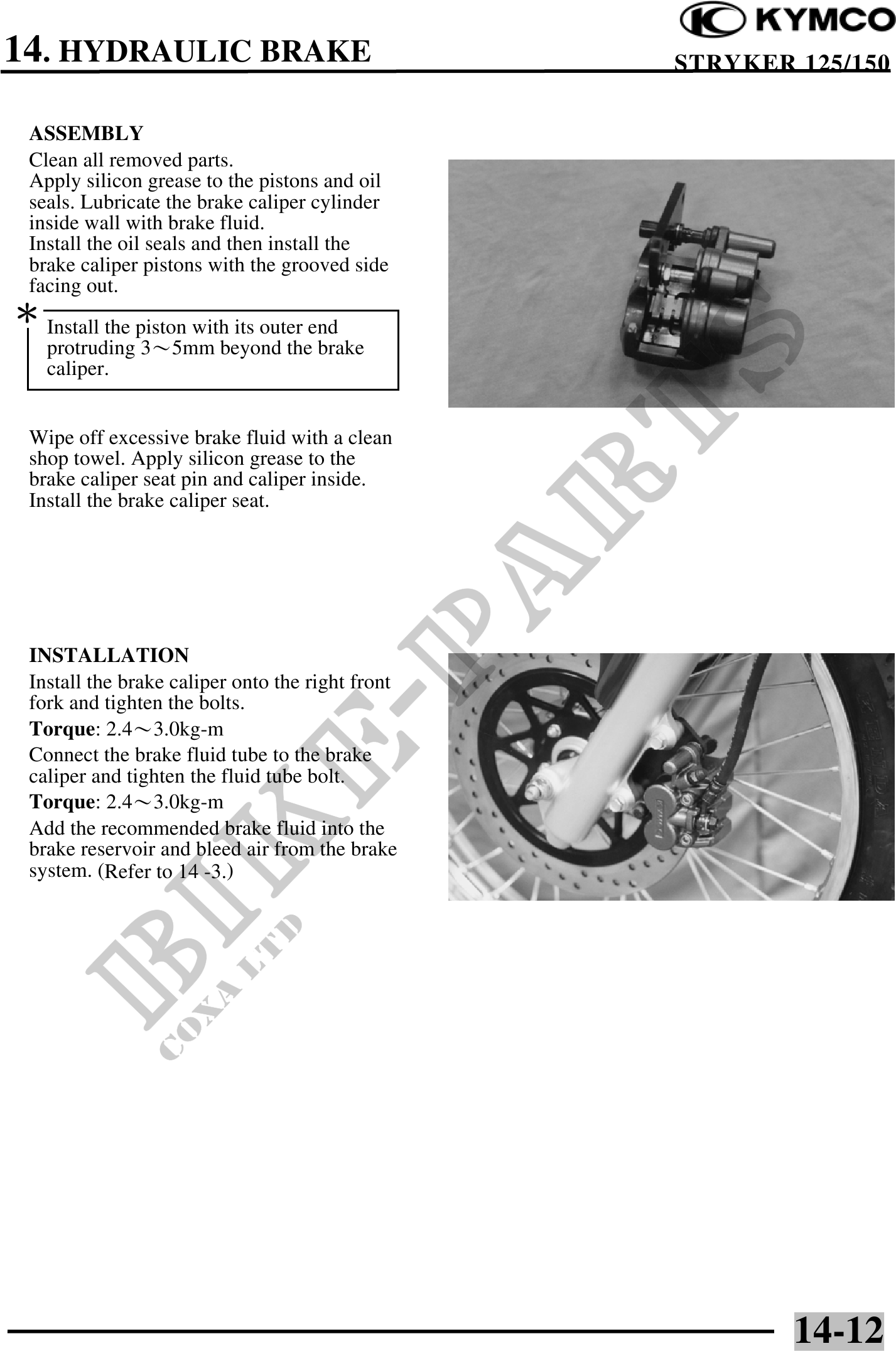

14. HYDRAULIC BRAKE STRYKER 125/150 ASSEMBLY Clean all removed parts. Apply silicon grease to the pistons and oil seals. Lubricate the brake caliper cylinder inside wall with brake fluid. Install the oil seals and then install the brake caliper pistons with the grooved side facing out. Install the piston with its outer end protruding 35mm beyond the brake caliper. Wipe off excessive brake fluid with a clean shop towel. Apply silicon grease to the brake caliper seat pin and caliper inside. Install the brake caliper seat. INSTALLATION Install the brake caliper onto the right front fork and tighten the bolts. Torque: 2.43.0kg-m Connect the brake fluid tube to the brake caliper and tighten the fluid tube bolt. Torque: 2.43.0kg-m Add the recommended brake fluid into the brake reservoir and bleed air from the brake system. (Refer to 14 -3.) 14-12
