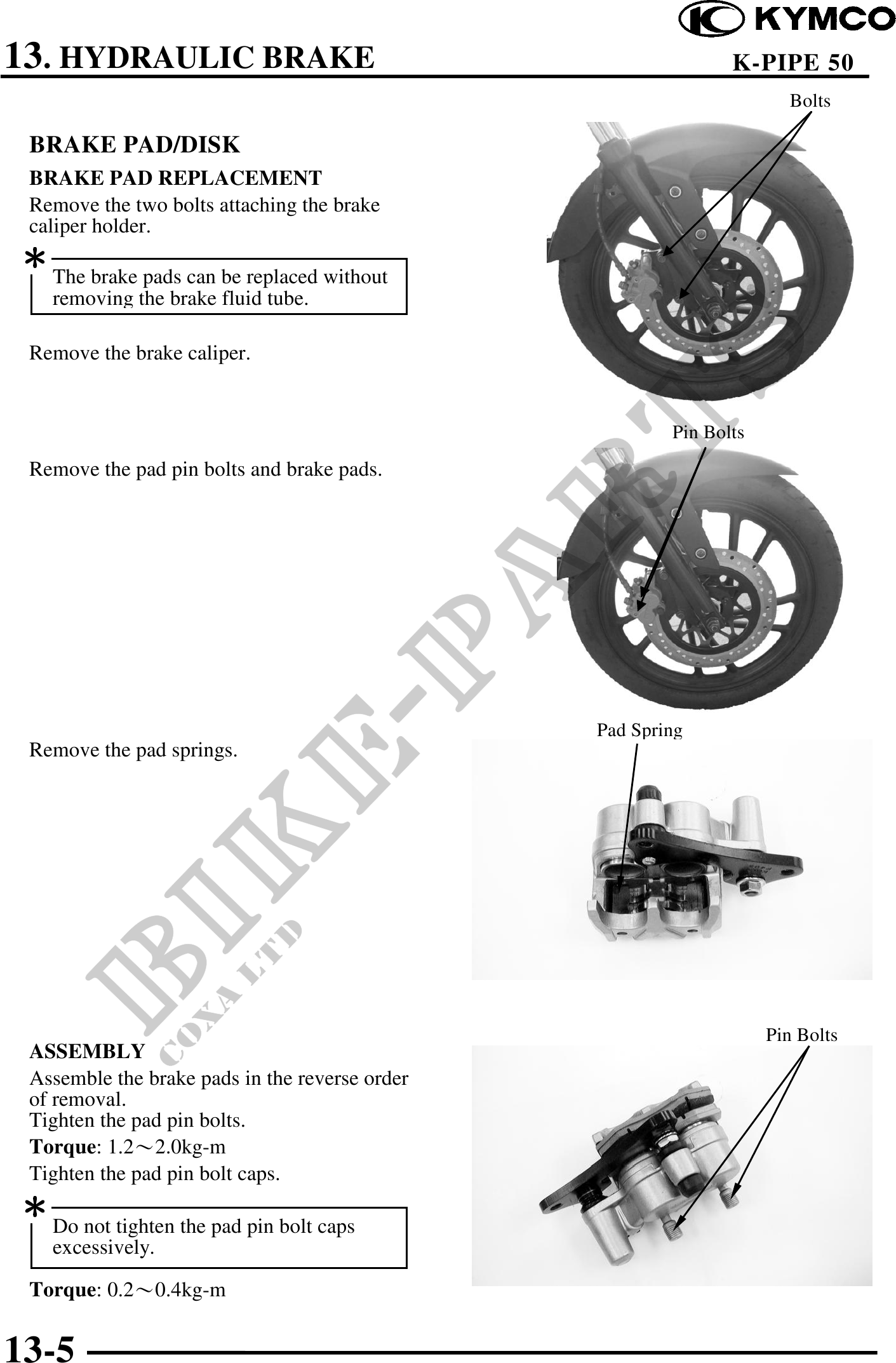

13. HYDRAULIC BRAKE K-PIPE 50
Bolts
BRAKE PAD/DISK
BRAKE PAD REPLACEMENT
Remove the two bolts attaching the brake
caliper holder.
The brake pads can be replaced without
removing the brake fluid tube.
Remove the brake caliper.
Pin Bolts
Remove the pad pin bolts and brake pads.
Pad Spring
Remove the pad springs.
Pin Bolts
ASSEMBLY
Assemble the brake pads in the reverse order
of removal.
Tighten the pad pin bolts.
Torque: 1.22.0kg-m
Tighten the pad pin bolt caps.
Do not tighten the pad pin bolt caps
excessively.
Torque: 0.20.4kg-m
13-5
