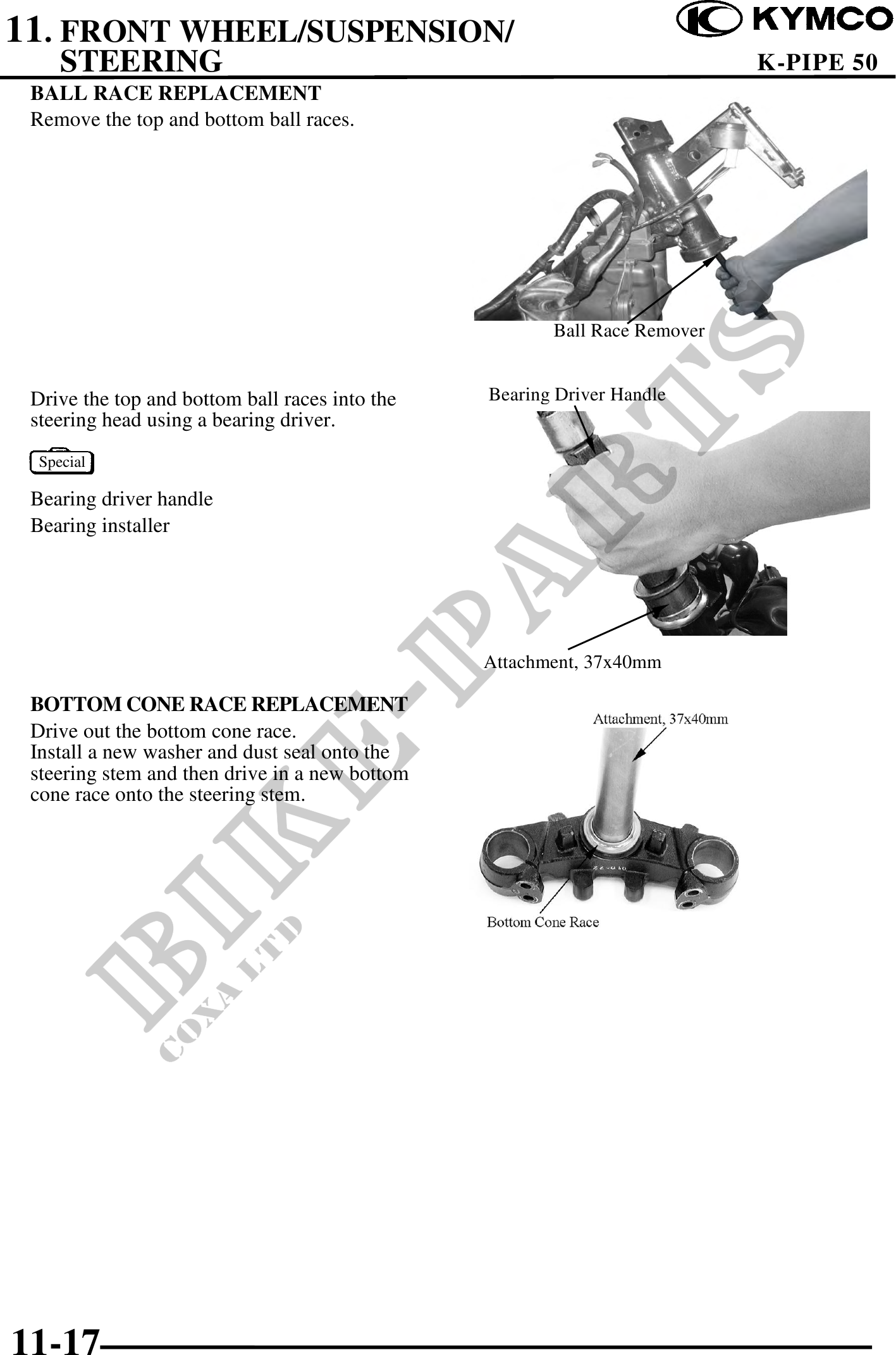

          11. FRONT WHEEL/SUSPENSION/
     STEERING                                                              K-PIPE 50
 BALL RACE REPLACEMENT
 Remove the top and bottom ball races.




                                                       Ball Race Remover


 Drive the top and bottom ball races into the   Bearing Driver Handle
 steering head using a bearing driver.
  Special

 Bearing driver handle
 Bearing installer




                                                Attachment, 37x40mm

 BOTTOM CONE RACE REPLACEMENT
 Drive out the bottom cone race.
 Install a new washer and dust seal onto the
 steering stem and then drive in a new bottom
 cone race onto the steering stem.




11-17
