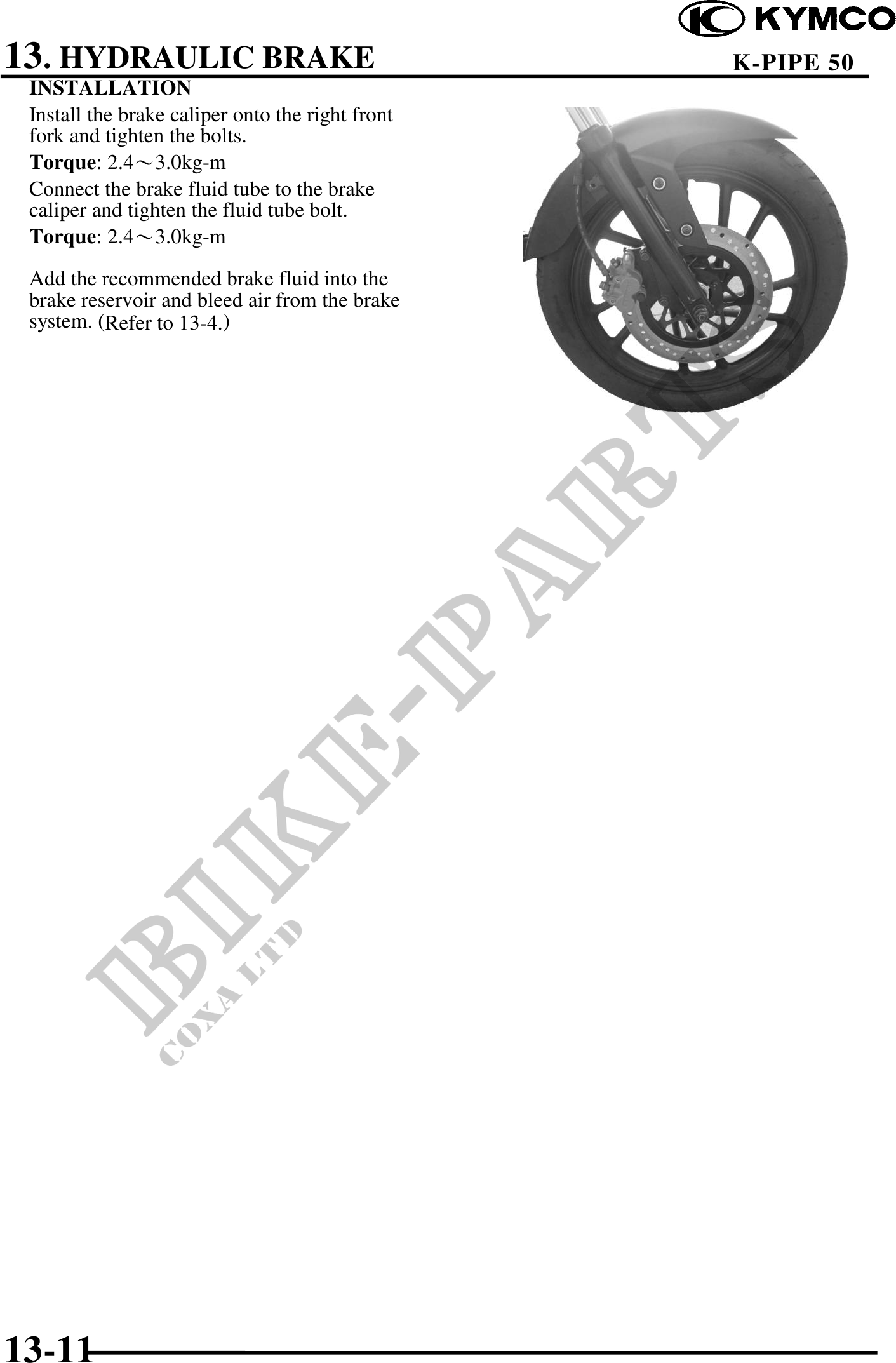

13. HYDRAULIC BRAKE K-PIPE 50
INSTALLATION
Install the brake caliper onto the right front
fork and tighten the bolts.
Torque: 2.43.0kg-m
Connect the brake fluid tube to the brake
caliper and tighten the fluid tube bolt.
Torque: 2.43.0kg-m
Add the recommended brake fluid into the
brake reservoir and bleed air from the brake
system. (Refer to 13-4.)
13-11
