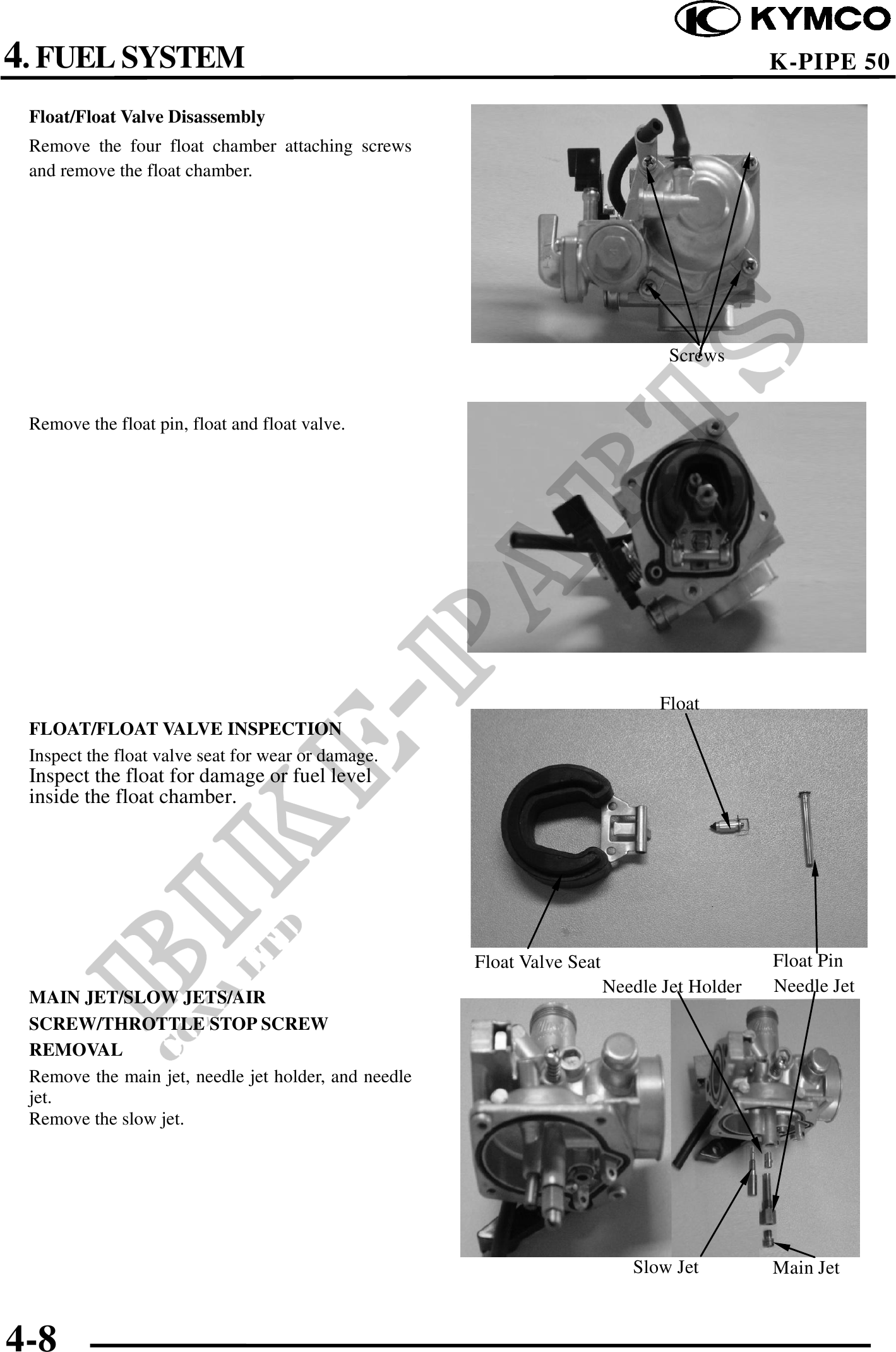

4. FUEL SYSTEM K-PIPE 50
Float/Float Valve Disassembly
Remove the four float chamber attaching screws
and remove the float chamber.
Screws
Remove the float pin, float and float valve.
Float
FLOAT/FLOAT VALVE INSPECTION
Inspect the float valve seat for wear or damage.
Inspect the float for damage or fuel level
inside the float chamber.
Float Valve Seat Float Pin
Needle Jet Holder Needle Jet
MAIN JET/SLOW JETS/AIR
SCREW/THROTTLE STOP SCREW
REMOVAL
Remove the main jet, needle jet holder, and needle
jet.
Remove the slow jet.
Slow Jet Main Jet
4-8
