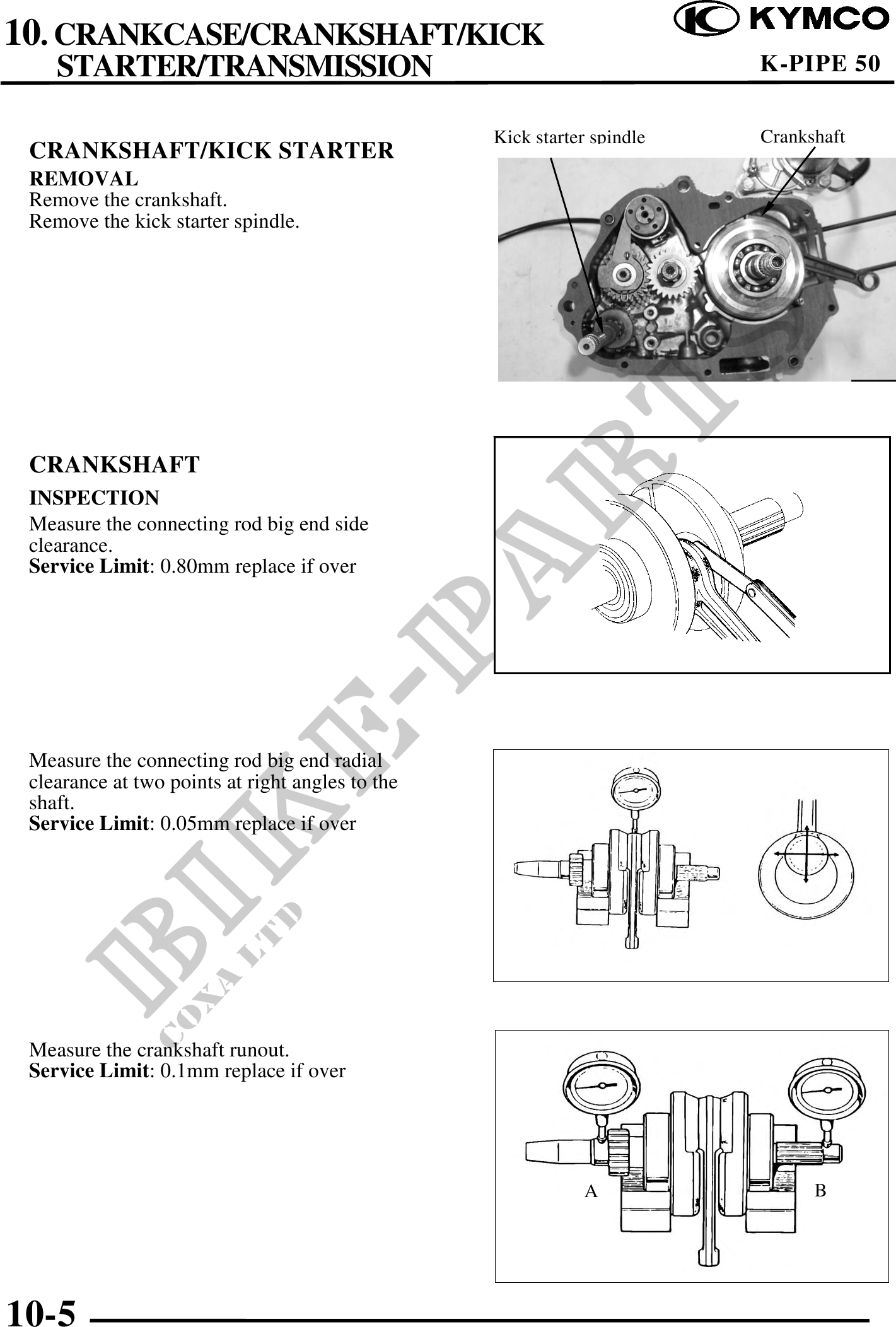

10. CRANKCASE/CRANKSHAFT/KICK
STARTER/TRANSMISSION K-PIPE 50
Kick starter spindle Crankshaft
CRANKSHAFT/KICK STARTER
REMOVAL
Remove the crankshaft.
Remove the kick starter spindle.
CRANKSHAFT
INSPECTION
Measure the connecting rod big end side
clearance.
Service Limit: 0.80mm replace if over
Measure the connecting rod big end radial
clearance at two points at right angles to the
shaft.
Service Limit: 0.05mm replace if over
Measure the crankshaft runout.
Service Limit: 0.1mm replace if over
A B
10-5
