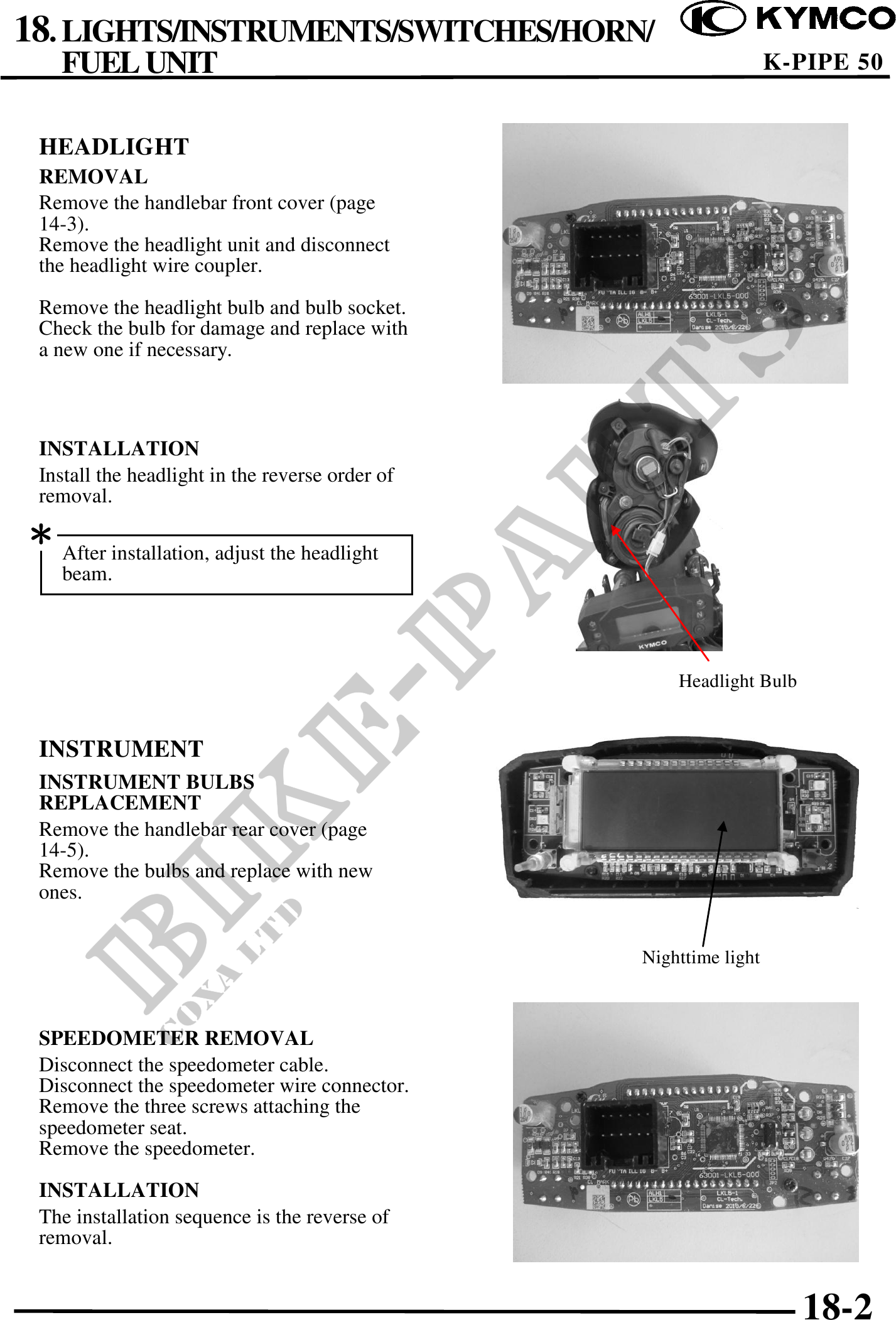

kpw 50 Workshop-manual : Page 185

          18. LIGHTS/INSTRUMENTS/SWITCHES/HORN/
   FUEL UNIT                                                       K-PIPE 50


 HEADLIGHT
 REMOVAL
 Remove the handlebar front cover (page
 14-3).
 Remove the headlight unit and disconnect
 the headlight wire coupler.

 Remove the headlight bulb and bulb socket.
 Check the bulb for damage and replace with
 a new one if necessary.



 INSTALLATION
 Install the headlight in the reverse order of
 removal.

   After installation, adjust the headlight
   beam.




                                                     Headlight Bulb


 INSTRUMENT
 INSTRUMENT BULBS
 REPLACEMENT
 Remove the handlebar rear cover (page
 14-5).
 Remove the bulbs and replace with new
 ones.


                                                 Nighttime light



 SPEEDOMETER REMOVAL
 Disconnect the speedometer cable.
 Disconnect the speedometer wire connector.
 Remove the three screws attaching the
 speedometer seat.
 Remove the speedometer.                          Screws

 INSTALLATION
 The installation sequence is the reverse of
 removal.


                                                                      18-2
