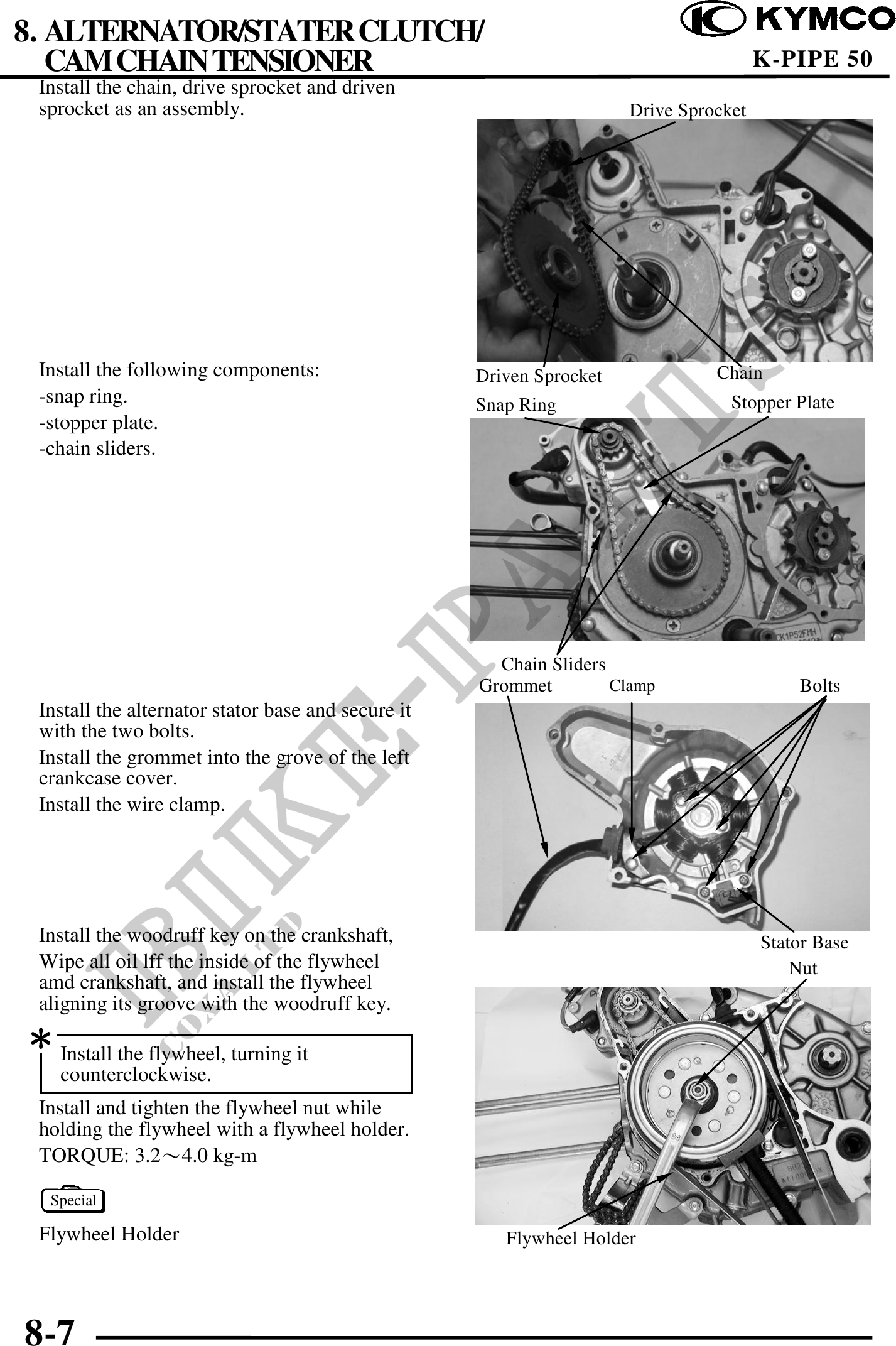

          8. ALTERNATOR/STATER CLUTCH/
   CAM CHAIN TENSIONER                                                                 K-PIPE 50
 Install the chain, drive sprocket and driven
 sprocket as an assembly.                                             Drive Sprocket




 Install the following components:                  Driven Sprocket             Chain
 -snap ring.                                        Snap Ring                     Stopper Plate
 -stopper plate.
 -chain sliders.




                                                      Chain Sliders
                                                    Grommet         Clamp                  Bolts
 Install the alternator stator base and secure it
 with the two bolts.
 Install the grommet into the grove of the left
 crankcase cover.
 Install the wire clamp.




 Install the woodruff key on the crankshaft,                                           Stator Base
 Wipe all oil lff the inside of the flywheel                                               Nut
 amd crankshaft, and install the flywheel
 aligning its groove with the woodruff key.
 Install the flywheel, turning it
    counterclockwise.
 Install and tighten the flywheel nut while
 holding the flywheel with a flywheel holder.
 TORQUE: 3.24.0 kg-m

  Special

 Flywheel Holder                                       Flywheel Holder




8-7
