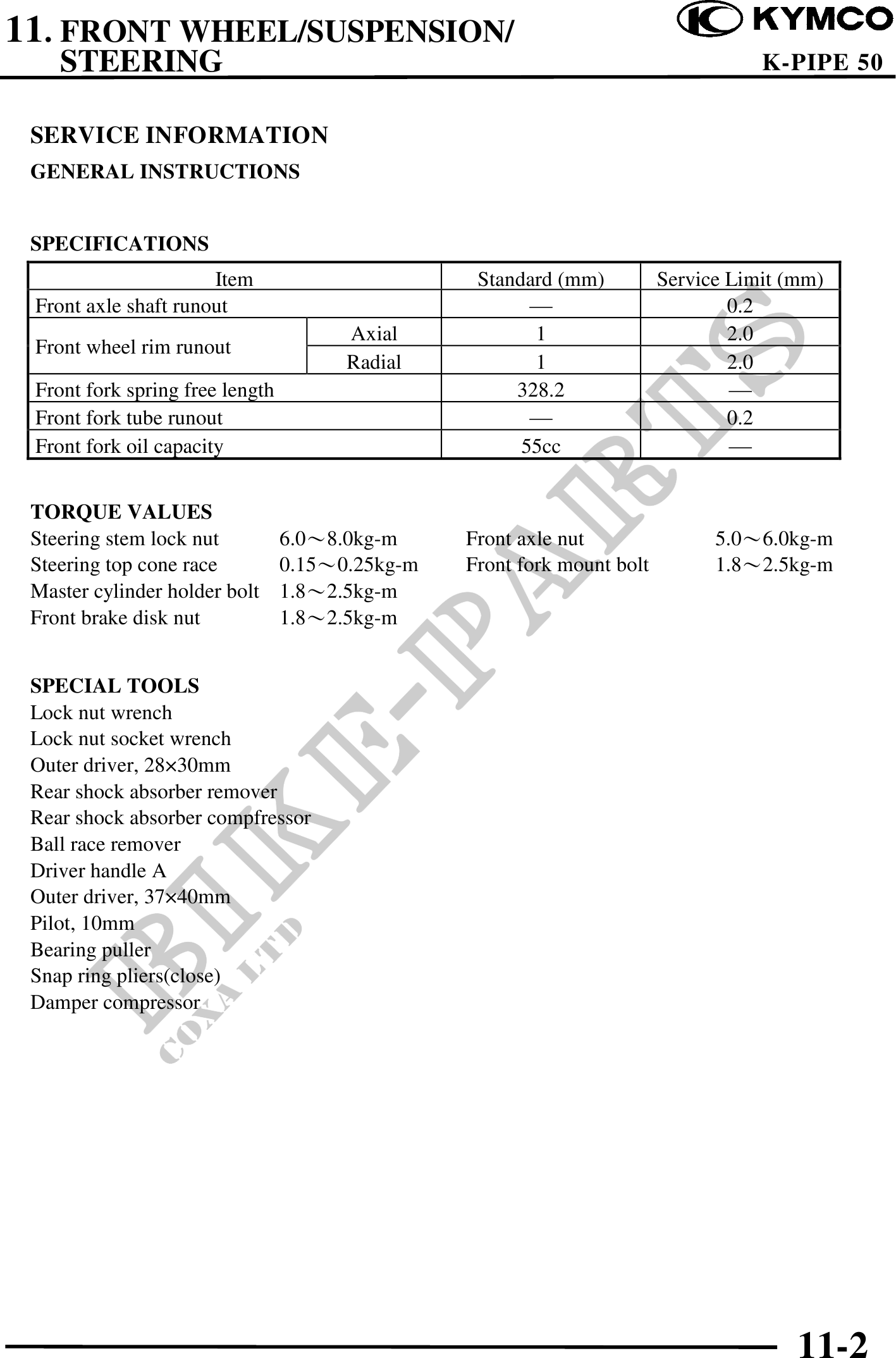

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                                       K-PIPE 50

 SERVICE INFORMATION
 GENERAL INSTRUCTIONS


 SPECIFICATIONS
                      Item                       Standard (mm)          Service Limit (mm)
 Front axle shaft runout                                                        0.2
                                      Axial            1                        2.0
 Front wheel rim runout
                                      Radial           1                        2.0
 Front fork spring free length                       328.2
 Front fork tube runout                                                         0.2
 Front fork oil capacity                              55cc


 TORQUE VALUES
 Steering stem lock nut          6.08.0kg-m     Front axle nut                5.06.0kg-m
 Steering top cone race          0.150.25kg-m   Front fork mount bolt         1.82.5kg-m
 Master cylinder holder bolt     1.82.5kg-m
 Front brake disk nut            1.82.5kg-m


 SPECIAL TOOLS
 Lock nut wrench
 Lock nut socket wrench
 Outer driver, 28× 30mm
 Rear shock absorber remover
 Rear shock absorber compfressor
 Ball race remover
 Driver handle A
 Outer driver, 37× 40mm
 Pilot, 10mm
 Bearing puller
 Snap ring pliers(close)
 Damper compressor




                                                                                       11-2
