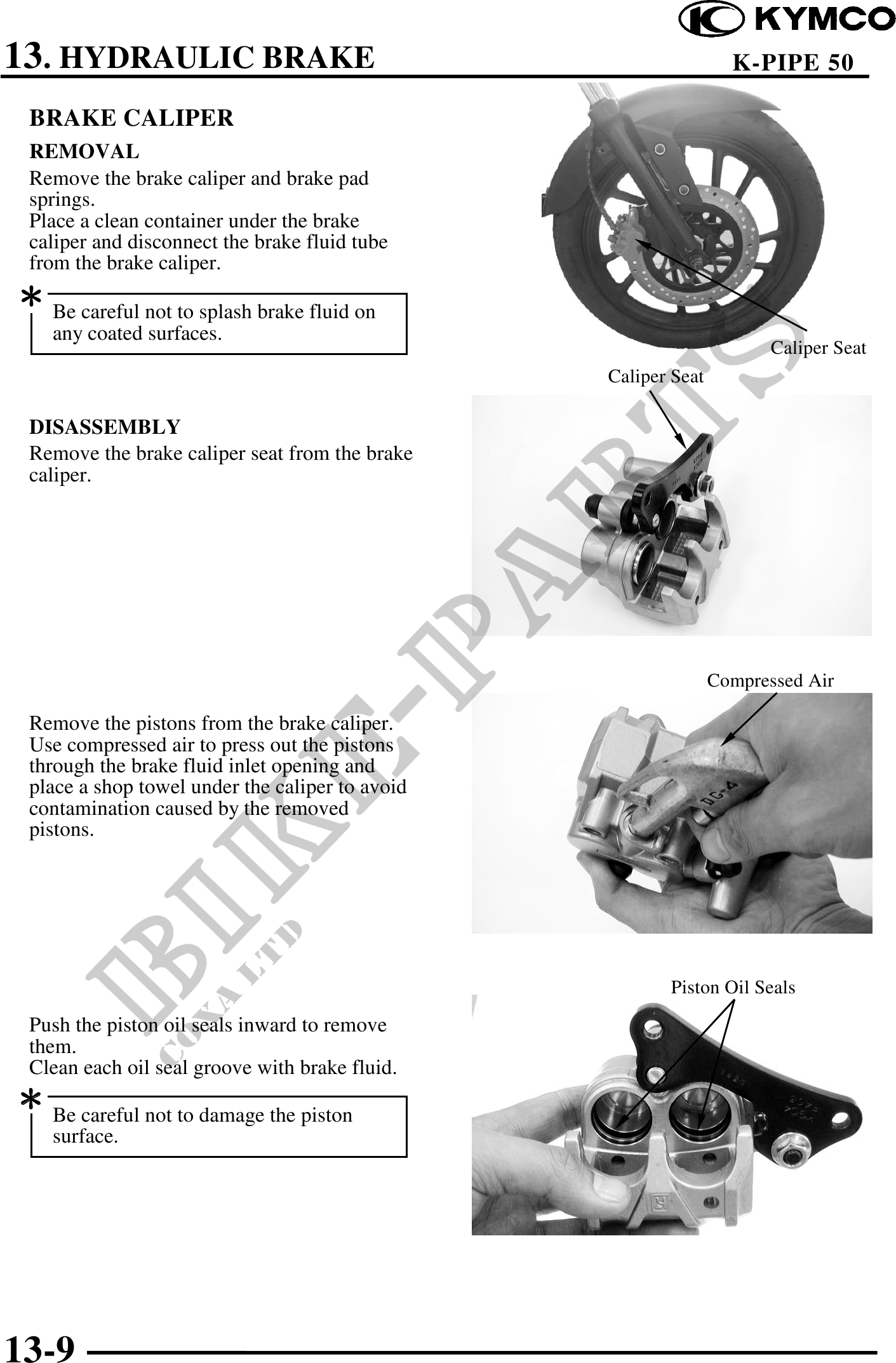

13. HYDRAULIC BRAKE K-PIPE 50
BRAKE CALIPER
REMOVAL
Remove the brake caliper and brake pad
springs.
Place a clean container under the brake
caliper and disconnect the brake fluid tube
from the brake caliper.
Be careful not to splash brake fluid on
any coated surfaces.
Caliper Seat
Caliper Seat
DISASSEMBLY
Remove the brake caliper seat from the brake
caliper.
Compressed Air
Remove the pistons from the brake caliper.
Use compressed air to press out the pistons
through the brake fluid inlet opening and
place a shop towel under the caliper to avoid
contamination caused by the removed
pistons.
Piston Oil Seals
Push the piston oil seals inward to remove
them.
Clean each oil seal groove with brake fluid.
Be careful not to damage the piston
surface.
13-9
