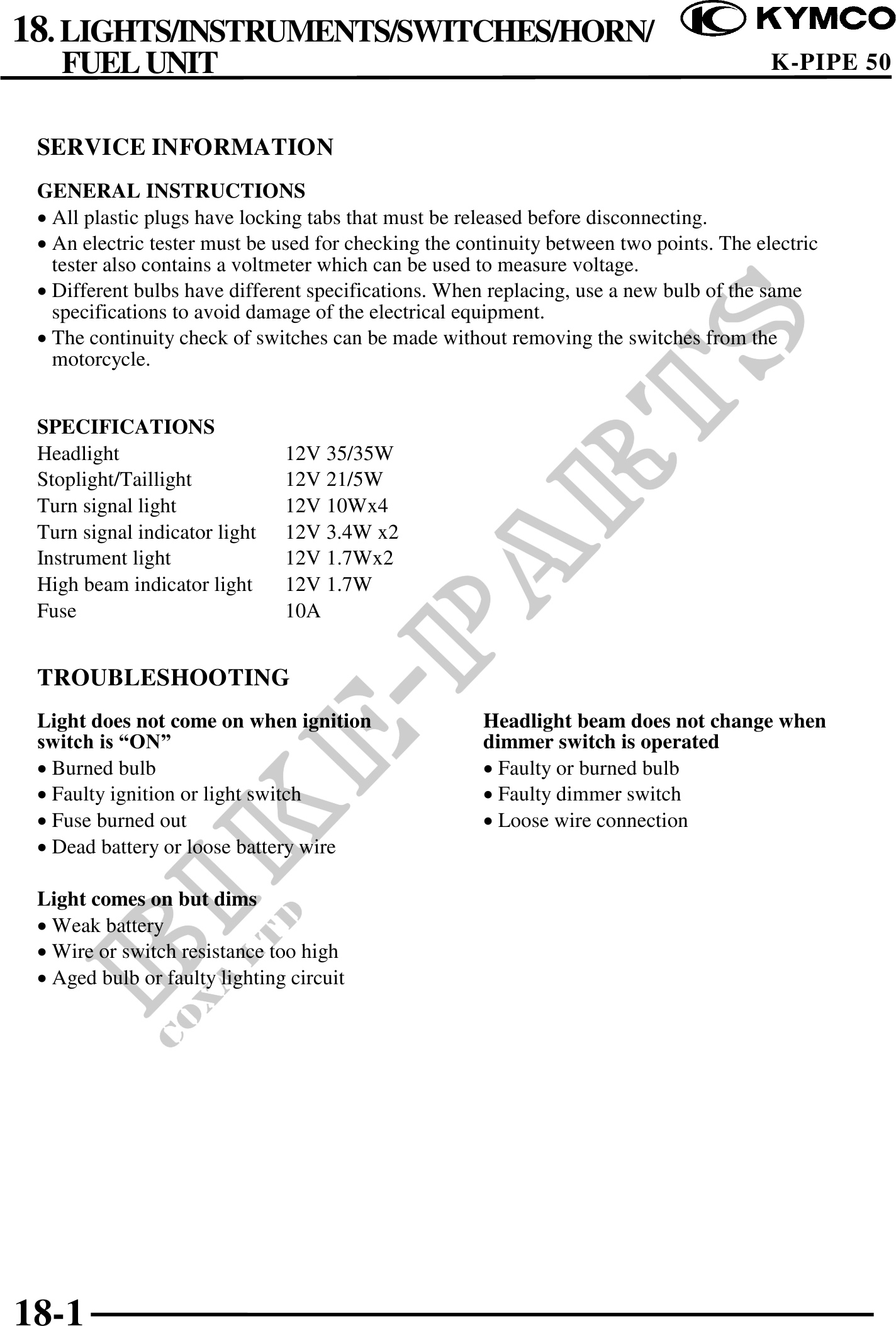

18. LIGHTS/INSTRUMENTS/SWITCHES/HORN/
FUEL UNIT K-PIPE 50
SERVICE INFORMATION
GENERAL INSTRUCTIONS
All plastic plugs have locking tabs that must be released before disconnecting.
An electric tester must be used for checking the continuity between two points. The electric
tester also contains a voltmeter which can be used to measure voltage.
Different bulbs have different specifications. When replacing, use a new bulb of the same
specifications to avoid damage of the electrical equipment.
The continuity check of switches can be made without removing the switches from the
motorcycle.
SPECIFICATIONS
Headlight 12V 35/35W
Stoplight/Taillight 12V 21/5W
Turn signal light 12V 10Wx4
Turn signal indicator light 12V 3.4W x2
Instrument light 12V 1.7Wx2
High beam indicator light 12V 1.7W
Fuse 10A
TROUBLESHOOTING
Light does not come on when ignition Headlight beam does not change when
switch is "ON" dimmer switch is operated
Burned bulb Faulty or burned bulb
Faulty ignition or light switch Faulty dimmer switch
Fuse burned out Loose wire connection
Dead battery or loose battery wire
Light comes on but dims
Weak battery
Wire or switch resistance too high
Aged bulb or faulty lighting circuit
18-1
