19. EVAPORATIVE/EXHAUST EMISSION
CONTROL SYSTEM K-PIPE 50
19
EXHAUST EMISSION CONTROL SYSTEM DIAGRAM ................................................... 18-0
EXHAUST EMISSION CONTROL SYSTEM ....................................................................... 18-1
SERVICE INFORMATION ..................................................................................................... 18-1
TROUBLESHOOTING............................................................................................................ 18-1
MAINTENANCE SCHEDULE ............................................................................................... 18-2
SECONDARY AIR CLEANER............................................................................................... 18-3
19
AIR INJECTION CUT-OFF VALVE (A.I.C.V.) ..................................................................... 18-4
REED VALVE ......................................................................................................................... 18-5
EXHAUST MUFFLER ............................................................................................................ 18-6
EXHAUST EMISSION RELATED SYSTEM INSPECTION ................................................ 18-7

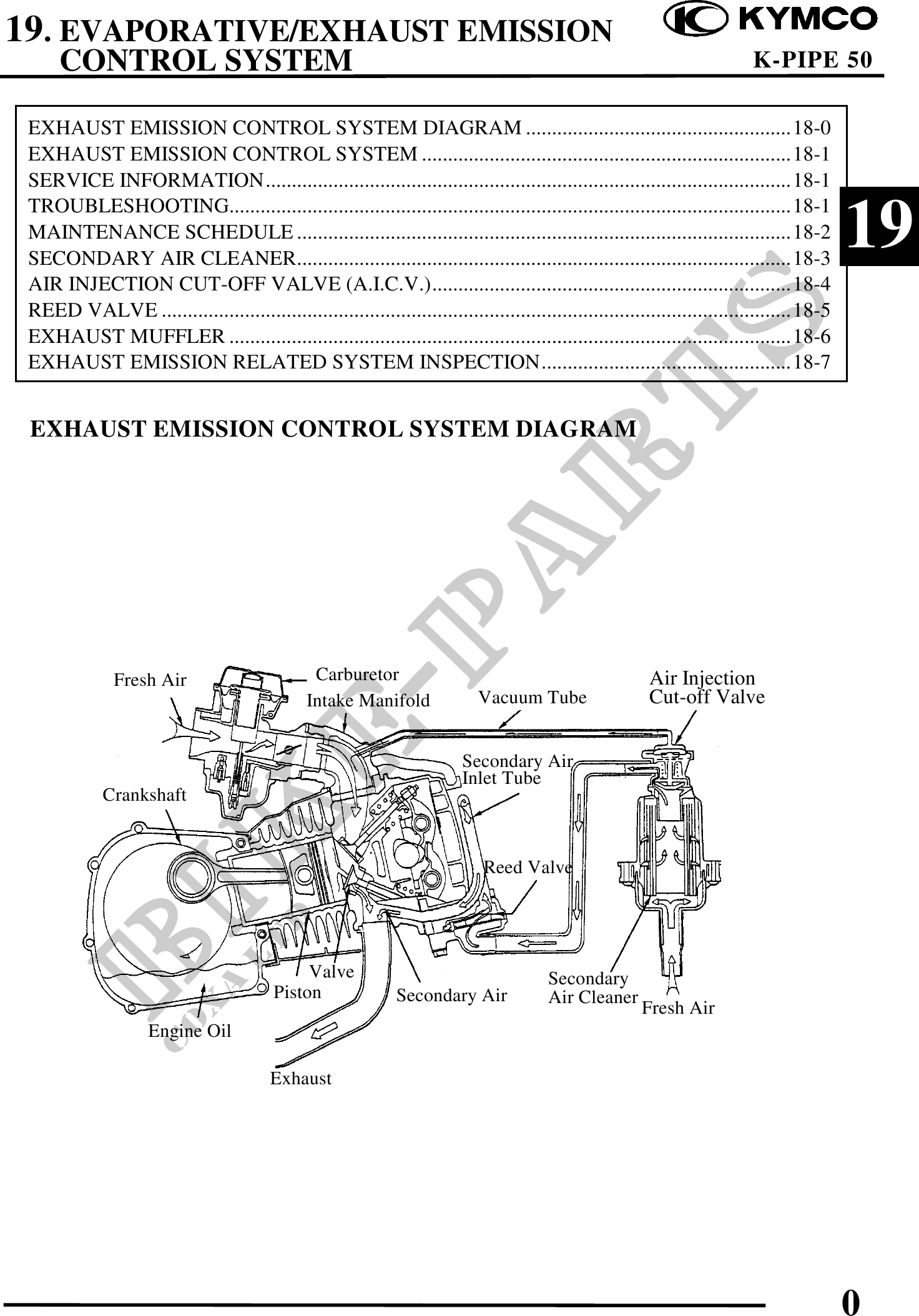

EXHAUST EMISSION CONTROL SYSTEM DIAGRAM
Fresh Air Carburetor Air Injection
Intake Manifold Vacuum Tube Cut-off Valve
Secondary Air
Inlet Tube
Crankshaft
Reed Valve
Valve Secondary
Piston Secondary Air Air Cleaner
Fresh Air
Engine Oil
Exhaust
0
