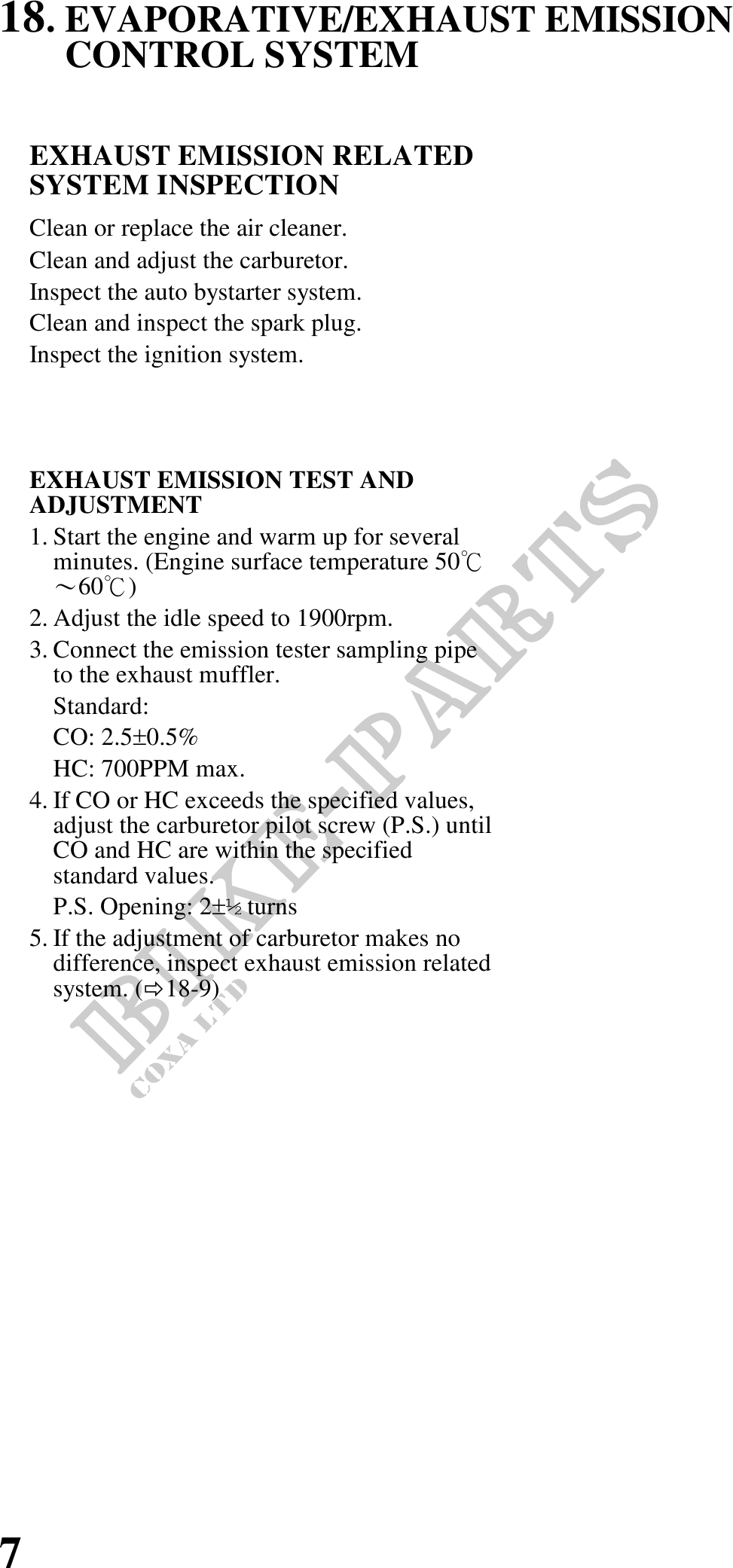

18. EVAPORATIVE/EXHAUST EMISSION CONTROL SYSTEM EXHAUST EMISSION RELATED SYSTEM INSPECTION Clean or replace the air cleaner. Clean and adjust the carburetor. Inspect the auto bystarter system. Clean and inspect the spark plug. Inspect the ignition system. EXHAUST EMISSION TEST AND ADJUSTMENT 1. Start the engine and warm up for several minutes. (Engine surface temperature 50 60) 2. Adjust the idle speed to 1900rpm. 3. Connect the emission tester sampling pipe to the exhaust muffler. Standard: CO: 2.50.5% HC: 700PPM max. 4. If CO or HC exceeds the specified values, adjust the carburetor pilot screw (P.S.) until CO and HC are within the specified standard values. P.S. Opening: 2 turns 5. If the adjustment of carburetor makes no difference, inspect exhaust emission related system. (18-9) 7
