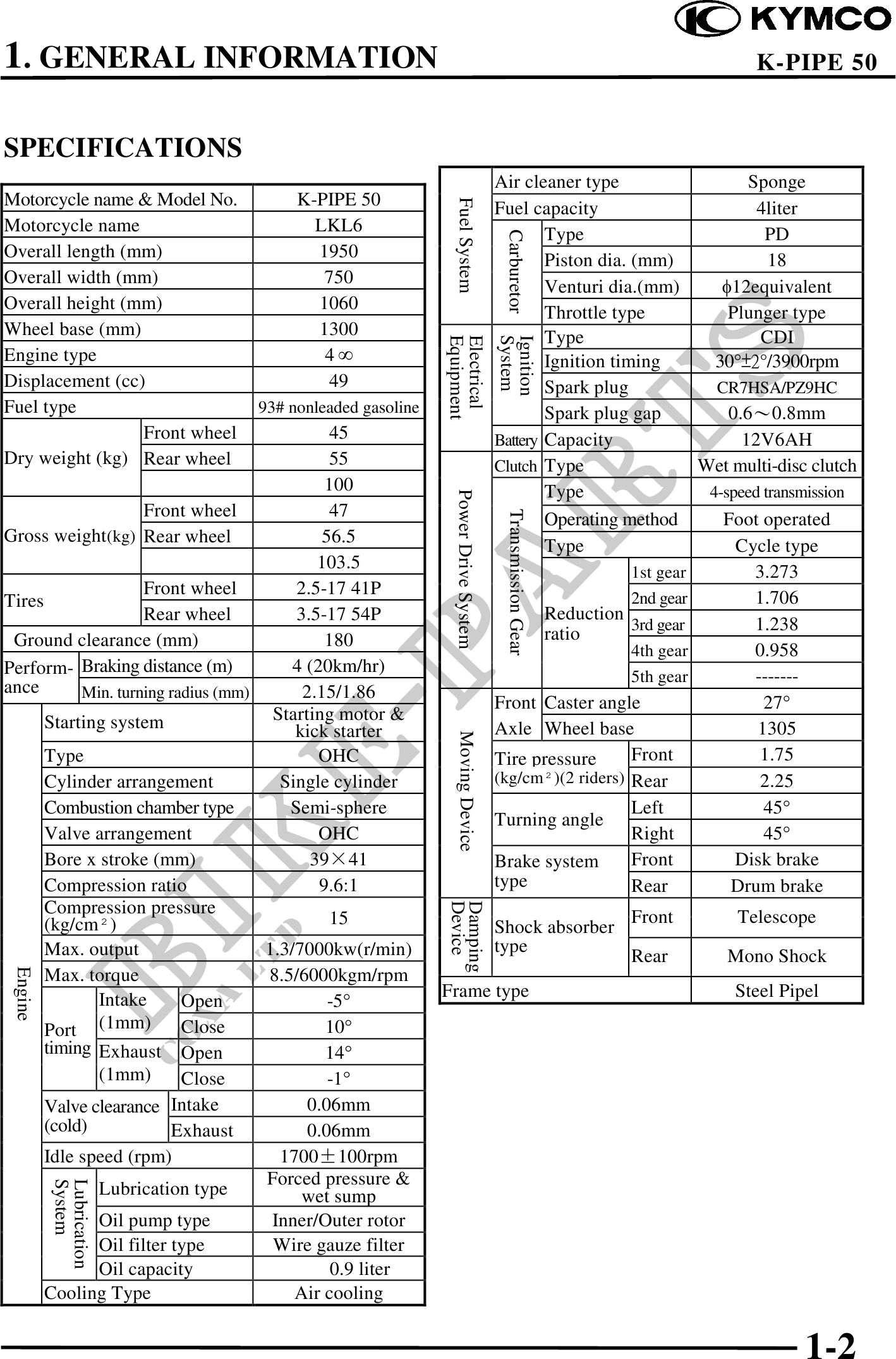

1. GENERAL INFORMATION K-PIPE 50
SPECIFICATIONS
Air cleaner type Sponge
Motorcycle name & Model No. K-PIPE 50
Fuel System
Fuel capacity 4liter
Motorcycle name LKL6 Type PD
Carburetor
Overall length (mm) 1950 Piston dia. (mm) 18
Overall width (mm) 750 Venturi dia.(mm) 12equivalent
Overall height (mm) 1060 Throttle type Plunger type
Wheel base (mm) 1300 Type CDI
Equipment
Electrical
System
Ignition
Engine type 4 Ignition timing 302° /3900rpm
Displacement (cc) 49 Spark plug CR7HSA/PZ9HC
Fuel type 93# nonleaded gasoline Spark plug gap 0.60.8mm
Front wheel 45 Battery Capacity 12V6AH
Dry weight (kg) Rear wheel 55 Clutch Type Wet multi-disc clutch
100 Power Drive System Type 4-speed transmission
Front wheel 47
Transmission Gear
Operating method Foot operated
Gross weight(kg) Rear wheel 56.5 Type Cycle type
103.5 1st gear 3.273
Front wheel 2.5-17 41P 2nd gear 1.706
Tires
Rear wheel 3.5-17 54P Reduction
ratio 3rd gear 1.238
Ground clearance (mm) 180
4th gear 0.958
Perform- Braking distance (m) 4 (20km/hr)
5th gear -------
ance Min. turning radius (mm) 2.15/1.86
Front Caster angle 27
Starting system Starting motor &
kick starter Axle Wheel base 1305
Moving Device
Type OHC Tire pressure Front 1.75
Cylinder arrangement Single cylinder (kg/cm)(2 riders) Rear 2.25
Combustion chamber type Semi-sphere Left 45
Turning angle
Valve arrangement OHC Right 45
Bore x stroke (mm) 39×41 Brake system Front Disk brake
Compression ratio 9.6:1 type Rear Drum brake
Compression pressure
Device
Damping
(kg/cm) 15 Front Telescope
Shock absorber
Max. output 1.3/7000kw(r/min) type
Rear Mono Shock
Engine
Max. torque 8.5/6000kgm/rpm
Intake Frame type Steel Pipel
Open -5
Port (1mm) Close 10
timing Exhaust Open 14
(1mm) Close -1
Valve clearance Intake 0.06mm
(cold) Exhaust 0.06mm
Idle speed (rpm) 1700100rpm
Forced pressure &
System
Lubrication
Lubrication type wet sump
Oil pump type Inner/Outer rotor
Oil filter type Wire gauze filter
Oil capacity 0.9 liter
Cooling Type Air cooling
1-2
