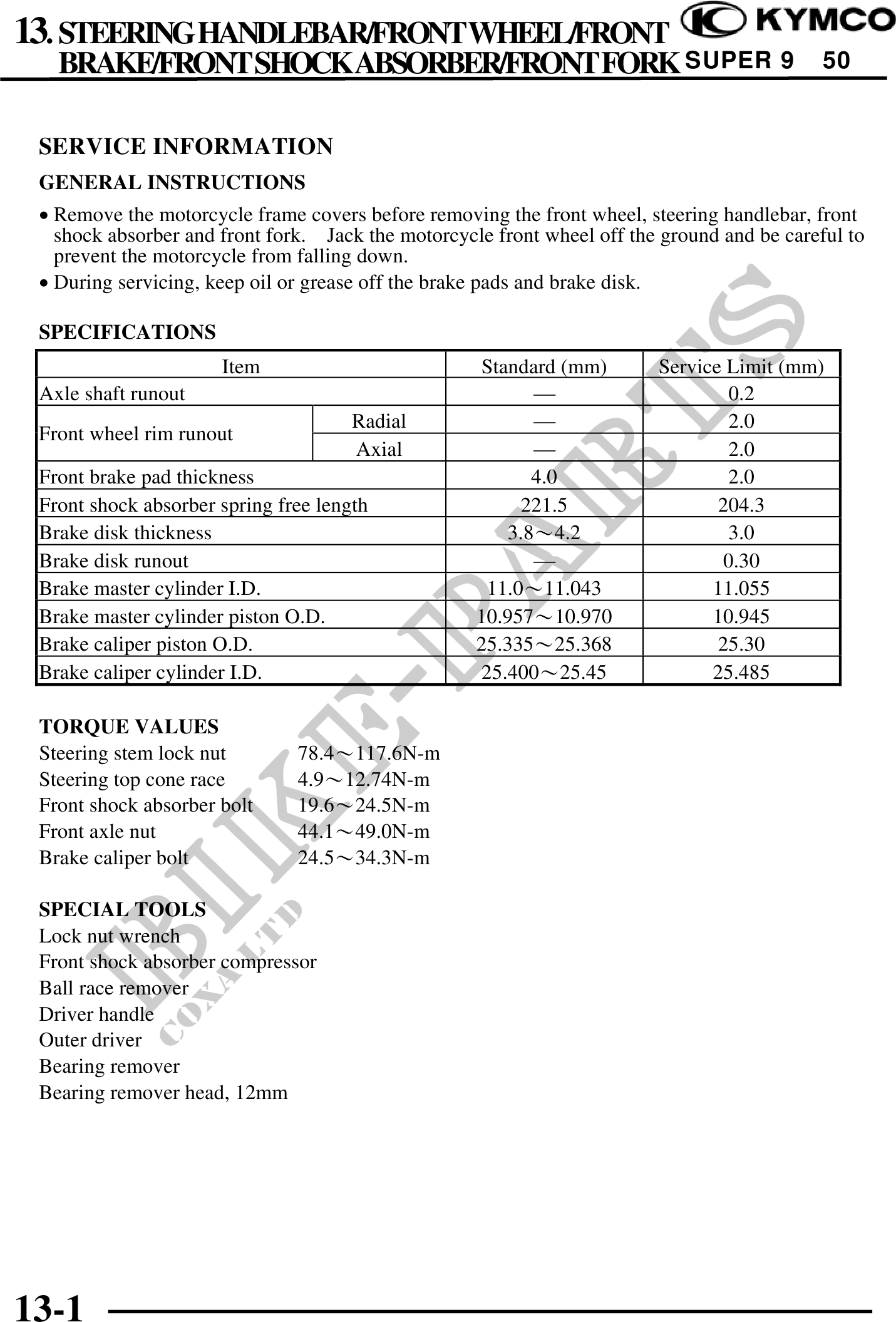

super 9 3 Workshop-manual : Page 149

          13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
   BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9                                                50


 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · Remove the motorcycle frame covers before removing the front wheel, steering handlebar, front
   shock absorber and front fork. Jack the motorcycle front wheel off the ground and be careful to
   prevent the motorcycle from falling down.
 · During servicing, keep oil or grease off the brake pads and brake disk.

 SPECIFICATIONS
                      Item                          Standard (mm)        Service Limit (mm)
 Axle shaft runout                                                                0.2
                                      Radial                                      2.0
 Front wheel rim runout
                                      Axial                                       2.0
 Front brake pad thickness                                 4.0                   2.0
 Front shock absorber spring free length                 221.5                  204.3
 Brake disk thickness                                   3.84.2                   3.0
 Brake disk runout                                                               0.30
 Brake master cylinder I.D.                          11.011.043                11.055
 Brake master cylinder piston O.D.                  10.95710.970               10.945
 Brake caliper piston O.D.                          25.33525.368                25.30
 Brake caliper cylinder I.D.                        25.40025.45                25.485

 TORQUE VALUES
 Steering stem lock nut        78.4117.6N-m
 Steering top cone race        4.912.74N-m
 Front shock absorber bolt     19.624.5N-m
 Front axle nut                44.149.0N-m
 Brake caliper bolt            24.534.3N-m

 SPECIAL TOOLS
 Lock nut wrench
 Front shock absorber compressor
 Ball race remover
 Driver handle
 Outer driver
 Bearing remover
 Bearing remover head, 12mm




13-1
